Bidirectional Programmable DC power supplies

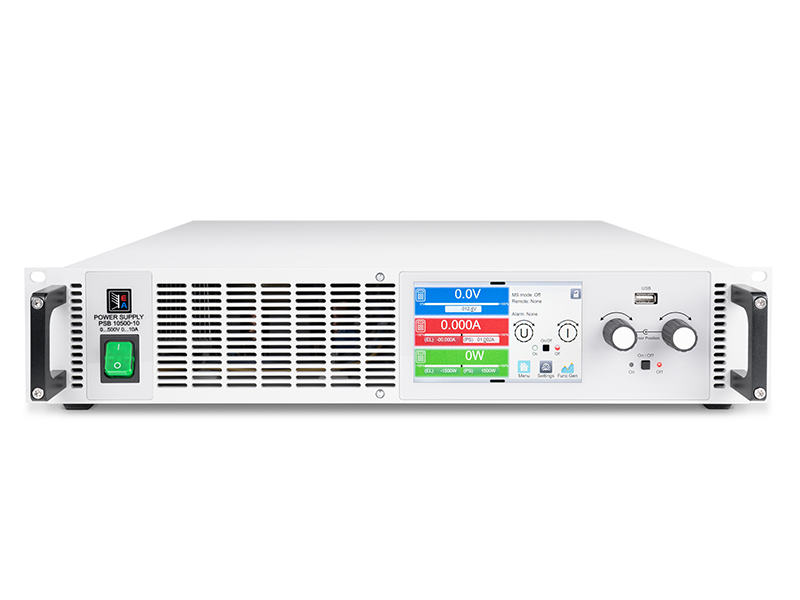

EA-PSB 10010-120 2U
| Manufacturer | EA - Elektro-Automatik |
| Power | 1200.00 W |
| Package | 2U Rack mount |
| Available output range (V) | 0-10 |
EA-PSB 10010-120 2U
| Manufacturer |
|
| Power | 1200.00 W |
| Package | 2U Rack mount |
| Input voltage | 110-240Vac ±10% single-phase |
| Efficiency | 0.00 |
| Available output range (V) | 0-10 |
| Output current (A) | 0-120 |
| Max output current | 0.00 |
| Electronic load input rating power | 0.00 |
| Warranty | 2 years |
| Water-cooled option | No |
Features:
|
|
| Description: The bidirectional DC laboratory power supplies in the PSB 10000 series from EA Elektro-Automatik are two quadrant devices which can perform the function of a power supply as well as that of an electronic load. In load mode the device is regenerative and feeds the energy back into the local grid with an efficiency up to over 96%. The PSB 10000 series includes single and three phase units, which, together with the wide input range, allows use with practically all global mains voltages. The DC voltage and current are directed by the application and the spectrum ranges from 0 - 10 V to 0 - 2000 V and from 0 - 6 A up to 0 - 1000 A in a single device. The DC supply operates as a flexible output stage with a constant power characteristic (autoranging), and a wide voltage, current and power range. To achieve higher power and current all units are equipped with a master-slave bus. This enables up to 64 parallel connected devices to be combined into one system which can provide up to 1920 W and 64000 A. Such a system works as a single unit and can use different power classes, only the voltage class must remain constant. In this way a user can construct a 75 kW system from two 30 kW and one 15 kW devices from the PSB 10000 range. Furthermore, typical laboratory functionality is provided. This includes an extensive function generator, alarm and warning management, assorted interfaces and ports, software solutions and many more functions. |
|
| Download datasheet |
EA-PSB 10060-60 2U
| Manufacturer | EA - Elektro-Automatik |
| Power | 1500.00 W |
| Package | 2U Rack mount |
| Available output range (V) | 0-60 |
EA-PSB 10060-60 2U
| Manufacturer |
|
| Power | 1500.00 W |
| Package | 2U Rack mount |
| Input voltage | 110-240Vac ±10% single-phase |
| Efficiency | 0.00 |
| Available output range (V) | 0-60 |
| Output current (A) | 0-60 |
| Max output current | 0.00 |
| Electronic load input rating power | 0.00 |
| Warranty | 2 years |
| Water-cooled option | No |
Features:
|
|
| Description: The bidirectional DC laboratory power supplies in the PSB 10000 series from EA Elektro-Automatik are two quadrant devices which can perform the function of a power supply as well as that of an electronic load. In load mode the device is regenerative and feeds the energy back into the local grid with an efficiency up to over 96%. The PSB 10000 series includes single and three phase units, which, together with the wide input range, allows use with practically all global mains voltages. The DC voltage and current are directed by the application and the spectrum ranges from 0 - 10 V to 0 - 2000 V and from 0 - 6 A up to 0 - 1000 A in a single device. The DC supply operates as a flexible output stage with a constant power characteristic (autoranging), and a wide voltage, current and power range. To achieve higher power and current all units are equipped with a master-slave bus. This enables up to 64 parallel connected devices to be combined into one system which can provide up to 1920 W and 64000 A. Such a system works as a single unit and can use different power classes, only the voltage class must remain constant. In this way a user can construct a 75 kW system from two 30 kW and one 15 kW devices from the PSB 10000 range. Furthermore, typical laboratory functionality is provided. This includes an extensive function generator, alarm and warning management, assorted interfaces and ports, software solutions and many more functions. |
|
| Download datasheet |
EA-PSB 10080-60 2U
| Manufacturer | EA - Elektro-Automatik |
| Power | 1500.00 W |
| Package | 2U Rack mount |
| Available output range (V) | 0-80 |
EA-PSB 10080-60 2U
| Manufacturer |
|
| Power | 1500.00 W |
| Package | 2U Rack mount |
| Input voltage | 110-240Vac ±10% single-phase |
| Efficiency | 0.00 |
| Available output range (V) | 0-80 |
| Output current (A) | 0-60 |
| Max output current | 0.00 |
| Electronic load input rating power | 0.00 |
| Warranty | 2 years |
| Water-cooled option | No |
Features:
|
|
| Description: The bidirectional DC laboratory power supplies in the PSB 10000 series from EA Elektro-Automatik are two quadrant devices which can perform the function of a power supply as well as that of an electronic load. In load mode the device is regenerative and feeds the energy back into the local grid with an efficiency up to over 96%. The PSB 10000 series includes single and three phase units, which, together with the wide input range, allows use with practically all global mains voltages. The DC voltage and current are directed by the application and the spectrum ranges from 0 - 10 V to 0 - 2000 V and from 0 - 6 A up to 0 - 1000 A in a single device. The DC supply operates as a flexible output stage with a constant power characteristic (autoranging), and a wide voltage, current and power range. To achieve higher power and current all units are equipped with a master-slave bus. This enables up to 64 parallel connected devices to be combined into one system which can provide up to 1920 W and 64000 A. Such a system works as a single unit and can use different power classes, only the voltage class must remain constant. In this way a user can construct a 75 kW system from two 30 kW and one 15 kW devices from the PSB 10000 range. Furthermore, typical laboratory functionality is provided. This includes an extensive function generator, alarm and warning management, assorted interfaces and ports, software solutions and many more functions. |
|
| Download datasheet |
EA-PSB 10200-25 2U
| Manufacturer | EA - Elektro-Automatik |
| Power | 1500.00 W |
| Package | 2U Rack mount |
| Available output range (V) | 0-200 |
EA-PSB 10200-25 2U
| Manufacturer |
|
| Power | 1500.00 W |
| Package | 2U Rack mount |
| Input voltage | 110-240Vac ±10% single-phase |
| Efficiency | 0.00 |
| Available output range (V) | 0-200 |
| Output current (A) | 0-25 |
| Max output current | 0.00 |
| Electronic load input rating power | 0.00 |
| Warranty | 2 years |
| Water-cooled option | No |
Features:
|
|
| Description: The bidirectional DC laboratory power supplies in the PSB 10000 series from EA Elektro-Automatik are two quadrant devices which can perform the function of a power supply as well as that of an electronic load. In load mode the device is regenerative and feeds the energy back into the local grid with an efficiency up to over 96%. The PSB 10000 series includes single and three phase units, which, together with the wide input range, allows use with practically all global mains voltages. The DC voltage and current are directed by the application and the spectrum ranges from 0 - 10 V to 0 - 2000 V and from 0 - 6 A up to 0 - 1000 A in a single device. The DC supply operates as a flexible output stage with a constant power characteristic (autoranging), and a wide voltage, current and power range. To achieve higher power and current all units are equipped with a master-slave bus. This enables up to 64 parallel connected devices to be combined into one system which can provide up to 1920 W and 64000 A. Such a system works as a single unit and can use different power classes, only the voltage class must remain constant. In this way a user can construct a 75 kW system from two 30 kW and one 15 kW devices from the PSB 10000 range. Furthermore, typical laboratory functionality is provided. This includes an extensive function generator, alarm and warning management, assorted interfaces and ports, software solutions and many more functions. |
|
| Download datasheet |
EA-PSB 10360-15 2U
| Manufacturer | EA - Elektro-Automatik |
| Power | 1500.00 W |
| Package | 2U Rack mount |
| Available output range (V) | 0-360 |
EA-PSB 10360-15 2U
| Manufacturer |
|
| Power | 1500.00 W |
| Package | 2U Rack mount |
| Input voltage | 110-240Vac ±10% single-phase |
| Efficiency | 0.00 |
| Available output range (V) | 0-360 |
| Output current (A) | 0-15 |
| Max output current | 0.00 |
| Electronic load input rating power | 0.00 |
| Warranty | 2 years |
| Water-cooled option | No |
Features:
|
|
| Description: The bidirectional DC laboratory power supplies in the PSB 10000 series from EA Elektro-Automatik are two quadrant devices which can perform the function of a power supply as well as that of an electronic load. In load mode the device is regenerative and feeds the energy back into the local grid with an efficiency up to over 96%. The PSB 10000 series includes single and three phase units, which, together with the wide input range, allows use with practically all global mains voltages. The DC voltage and current are directed by the application and the spectrum ranges from 0 - 10 V to 0 - 2000 V and from 0 - 6 A up to 0 - 1000 A in a single device. The DC supply operates as a flexible output stage with a constant power characteristic (autoranging), and a wide voltage, current and power range. To achieve higher power and current all units are equipped with a master-slave bus. This enables up to 64 parallel connected devices to be combined into one system which can provide up to 1920 W and 64000 A. Such a system works as a single unit and can use different power classes, only the voltage class must remain constant. In this way a user can construct a 75 kW system from two 30 kW and one 15 kW devices from the PSB 10000 range. Furthermore, typical laboratory functionality is provided. This includes an extensive function generator, alarm and warning management, assorted interfaces and ports, software solutions and many more functions. |
|
| Download datasheet |
EA-PSB 10500-10 2U
| Manufacturer | EA - Elektro-Automatik |
| Power | 1500.00 W |
| Package | 2U Rack mount |
| Available output range (V) | 0-500 |
EA-PSB 10500-10 2U
| Manufacturer |
|
| Power | 1500.00 W |
| Package | 2U Rack mount |
| Input voltage | 110-240Vac ±10% single-phase |
| Efficiency | 0.00 |
| Available output range (V) | 0-500 |
| Output current (A) | 0-10 |
| Max output current | 0.00 |
| Electronic load input rating power | 0.00 |
| Warranty | 2 years |
| Water-cooled option | No |
Features:
|
|
| Description: The bidirectional DC laboratory power supplies in the PSB 10000 series from EA Elektro-Automatik are two quadrant devices which can perform the function of a power supply as well as that of an electronic load. In load mode the device is regenerative and feeds the energy back into the local grid with an efficiency up to over 96%. The PSB 10000 series includes single and three phase units, which, together with the wide input range, allows use with practically all global mains voltages. The DC voltage and current are directed by the application and the spectrum ranges from 0 - 10 V to 0 - 2000 V and from 0 - 6 A up to 0 - 1000 A in a single device. The DC supply operates as a flexible output stage with a constant power characteristic (autoranging), and a wide voltage, current and power range. To achieve higher power and current all units are equipped with a master-slave bus. This enables up to 64 parallel connected devices to be combined into one system which can provide up to 1920 W and 64000 A. Such a system works as a single unit and can use different power classes, only the voltage class must remain constant. In this way a user can construct a 75 kW system from two 30 kW and one 15 kW devices from the PSB 10000 range. Furthermore, typical laboratory functionality is provided. This includes an extensive function generator, alarm and warning management, assorted interfaces and ports, software solutions and many more functions. |
|
| Download datasheet |
EA-PSB 10750-06 2U
| Manufacturer | EA - Elektro-Automatik |
| Power | 1500.00 W |
| Package | 2U Rack mount |
| Available output range (V) | 0-750 |
EA-PSB 10750-06 2U
| Manufacturer |
|
| Power | 1500.00 W |
| Package | 2U Rack mount |
| Input voltage | 110-240Vac ±10% single-phase |
| Efficiency | 0.00 |
| Available output range (V) | 0-750 |
| Output current (A) | 0-6 |
| Max output current | 0.00 |
| Electronic load input rating power | 0.00 |
| Warranty | 2 years |
| Water-cooled option | No |
Features:
|
|
| Description: The bidirectional DC laboratory power supplies in the PSB 10000 series from EA Elektro-Automatik are two quadrant devices which can perform the function of a power supply as well as that of an electronic load. In load mode the device is regenerative and feeds the energy back into the local grid with an efficiency up to over 96%. The PSB 10000 series includes single and three phase units, which, together with the wide input range, allows use with practically all global mains voltages. The DC voltage and current are directed by the application and the spectrum ranges from 0 - 10 V to 0 - 2000 V and from 0 - 6 A up to 0 - 1000 A in a single device. The DC supply operates as a flexible output stage with a constant power characteristic (autoranging), and a wide voltage, current and power range. To achieve higher power and current all units are equipped with a master-slave bus. This enables up to 64 parallel connected devices to be combined into one system which can provide up to 1920 W and 64000 A. Such a system works as a single unit and can use different power classes, only the voltage class must remain constant. In this way a user can construct a 75 kW system from two 30 kW and one 15 kW devices from the PSB 10000 range. Furthermore, typical laboratory functionality is provided. This includes an extensive function generator, alarm and warning management, assorted interfaces and ports, software solutions and many more functions. |
|
| Download datasheet |

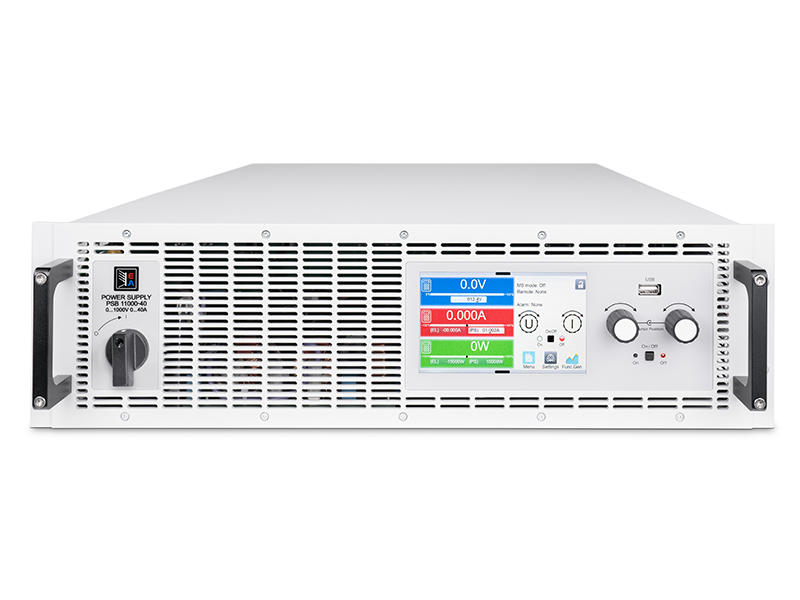

EA-PSB 10010-170 3U
| Manufacturer | EA - Elektro-Automatik |
| Power | 1700.00 W |
| Package | 3U Rack mount |
| Available output range (V) | 0-10 |
EA-PSB 10010-170 3U
| Manufacturer |
|
| Power | 1700.00 W |
| Package | 3U Rack mount |
| Input voltage | 208-480Vac ±10% 3-phase |
| Efficiency | 0.00 |
| Available output range (V) | 0-10 |
| Output current (A) | 0-170 |
| Max output current | 0.00 |
| Electronic load input rating power | 0.00 |
| Warranty | 2 years |
| Water-cooled option | No |
Features:
|
|
| Description: The bidirectional DC laboratory power supplies in the PSB 10000 series from EA Elektro-Automatik are two quadrant devices which can perform the function of a power supply as well as that of an electronic load. In load mode the device is regenerative and feeds the energy back into the local grid with an efficiency up to over 96%. The PSB 10000 series includes single and three phase units, which, together with the wide input range, allows use with practically all global mains voltages. The DC voltage and current are directed by the application and the spectrum ranges from 0 - 10 V to 0 - 2000 V and from 0 - 6 A up to 0 - 1000 A in a single device. The DC supply operates as a flexible output stage with a constant power characteristic (autoranging), and a wide voltage, current and power range. To achieve higher power and current all units are equipped with a master-slave bus. This enables up to 64 parallel connected devices to be combined into one system which can provide up to 1920 W and 64000 A. Such a system works as a single unit and can use different power classes, only the voltage class must remain constant. In this way a user can construct a 75 kW system from two 30 kW and one 15 kW devices from the PSB 10000 range. Furthermore, typical laboratory functionality is provided. This includes an extensive function generator, alarm and warning management, assorted interfaces and ports, software solutions and many more functions. |
|
| Download datasheet |
EA-PSB 10060-120 2U
| Manufacturer | EA - Elektro-Automatik |
| Power | 3000.00 W |
| Package | 2U Rack mount |
| Available output range (V) | 0-60 |
EA-PSB 10060-120 2U
| Manufacturer |
|
| Power | 3000.00 W |
| Package | 2U Rack mount |
| Input voltage | 110-240Vac ±10% single-phase |
| Efficiency | 0.00 |
| Available output range (V) | 0-60 |
| Output current (A) | 0-120 |
| Max output current | 0.00 |
| Electronic load input rating power | 0.00 |
| Warranty | 2 years |
| Water-cooled option | No |
Features:
|
|
| Description: The bidirectional DC laboratory power supplies in the PSB 10000 series from EA Elektro-Automatik are two quadrant devices which can perform the function of a power supply as well as that of an electronic load. In load mode the device is regenerative and feeds the energy back into the local grid with an efficiency up to over 96%. The PSB 10000 series includes single and three phase units, which, together with the wide input range, allows use with practically all global mains voltages. The DC voltage and current are directed by the application and the spectrum ranges from 0 - 10 V to 0 - 2000 V and from 0 - 6 A up to 0 - 1000 A in a single device. The DC supply operates as a flexible output stage with a constant power characteristic (autoranging), and a wide voltage, current and power range. To achieve higher power and current all units are equipped with a master-slave bus. This enables up to 64 parallel connected devices to be combined into one system which can provide up to 1920 W and 64000 A. Such a system works as a single unit and can use different power classes, only the voltage class must remain constant. In this way a user can construct a 75 kW system from two 30 kW and one 15 kW devices from the PSB 10000 range. Furthermore, typical laboratory functionality is provided. This includes an extensive function generator, alarm and warning management, assorted interfaces and ports, software solutions and many more functions. |
|
| Download datasheet |
EA-PSB 10080-120 2U
| Manufacturer | EA - Elektro-Automatik |
| Power | 3000.00 W |
| Package | 2U Rack mount |
| Available output range (V) | 0-80 |
EA-PSB 10080-120 2U
| Manufacturer |
|
| Power | 3000.00 W |
| Package | 2U Rack mount |
| Input voltage | 110-240Vac ±10% single-phase |
| Efficiency | 0.00 |
| Available output range (V) | 0-80 |
| Output current (A) | 0-120 |
| Max output current | 0.00 |
| Electronic load input rating power | 0.00 |
| Warranty | 2 years |
| Water-cooled option | No |
Features:
|
|
| Description: The bidirectional DC laboratory power supplies in the PSB 10000 series from EA Elektro-Automatik are two quadrant devices which can perform the function of a power supply as well as that of an electronic load. In load mode the device is regenerative and feeds the energy back into the local grid with an efficiency up to over 96%. The PSB 10000 series includes single and three phase units, which, together with the wide input range, allows use with practically all global mains voltages. The DC voltage and current are directed by the application and the spectrum ranges from 0 - 10 V to 0 - 2000 V and from 0 - 6 A up to 0 - 1000 A in a single device. The DC supply operates as a flexible output stage with a constant power characteristic (autoranging), and a wide voltage, current and power range. To achieve higher power and current all units are equipped with a master-slave bus. This enables up to 64 parallel connected devices to be combined into one system which can provide up to 1920 W and 64000 A. Such a system works as a single unit and can use different power classes, only the voltage class must remain constant. In this way a user can construct a 75 kW system from two 30 kW and one 15 kW devices from the PSB 10000 range. Furthermore, typical laboratory functionality is provided. This includes an extensive function generator, alarm and warning management, assorted interfaces and ports, software solutions and many more functions. |
|
| Download datasheet |
EA-PSB 10200-50 2U
| Manufacturer | EA - Elektro-Automatik |
| Power | 3000.00 W |
| Package | 2U Rack mount |
| Available output range (V) | 0-200 |
EA-PSB 10200-50 2U
| Manufacturer |
|
| Power | 3000.00 W |
| Package | 2U Rack mount |
| Input voltage | 110-240Vac ±10% single-phase |
| Efficiency | 0.00 |
| Available output range (V) | 0-200 |
| Output current (A) | 0-50 |
| Max output current | 0.00 |
| Electronic load input rating power | 0.00 |
| Warranty | 2 years |
| Water-cooled option | No |
Features:
|
|
| Description: The bidirectional DC laboratory power supplies in the PSB 10000 series from EA Elektro-Automatik are two quadrant devices which can perform the function of a power supply as well as that of an electronic load. In load mode the device is regenerative and feeds the energy back into the local grid with an efficiency up to over 96%. The PSB 10000 series includes single and three phase units, which, together with the wide input range, allows use with practically all global mains voltages. The DC voltage and current are directed by the application and the spectrum ranges from 0 - 10 V to 0 - 2000 V and from 0 - 6 A up to 0 - 1000 A in a single device. The DC supply operates as a flexible output stage with a constant power characteristic (autoranging), and a wide voltage, current and power range. To achieve higher power and current all units are equipped with a master-slave bus. This enables up to 64 parallel connected devices to be combined into one system which can provide up to 1920 W and 64000 A. Such a system works as a single unit and can use different power classes, only the voltage class must remain constant. In this way a user can construct a 75 kW system from two 30 kW and one 15 kW devices from the PSB 10000 range. Furthermore, typical laboratory functionality is provided. This includes an extensive function generator, alarm and warning management, assorted interfaces and ports, software solutions and many more functions. |
|
| Download datasheet |
EA-PSB 10360-30 2U
| Manufacturer | EA - Elektro-Automatik |
| Power | 3000.00 W |
| Package | 2U Rack mount |
| Available output range (V) | 0-360 |
EA-PSB 10360-30 2U
| Manufacturer |
|
| Power | 3000.00 W |
| Package | 2U Rack mount |
| Input voltage | 110-240Vac ±10% single-phase |
| Efficiency | 0.00 |
| Available output range (V) | 0-360 |
| Output current (A) | 0-30 |
| Max output current | 0.00 |
| Electronic load input rating power | 0.00 |
| Warranty | 2 years |
| Water-cooled option | No |
Features:
|
|
| Description: The bidirectional DC laboratory power supplies in the PSB 10000 series from EA Elektro-Automatik are two quadrant devices which can perform the function of a power supply as well as that of an electronic load. In load mode the device is regenerative and feeds the energy back into the local grid with an efficiency up to over 96%. The PSB 10000 series includes single and three phase units, which, together with the wide input range, allows use with practically all global mains voltages. The DC voltage and current are directed by the application and the spectrum ranges from 0 - 10 V to 0 - 2000 V and from 0 - 6 A up to 0 - 1000 A in a single device. The DC supply operates as a flexible output stage with a constant power characteristic (autoranging), and a wide voltage, current and power range. To achieve higher power and current all units are equipped with a master-slave bus. This enables up to 64 parallel connected devices to be combined into one system which can provide up to 1920 W and 64000 A. Such a system works as a single unit and can use different power classes, only the voltage class must remain constant. In this way a user can construct a 75 kW system from two 30 kW and one 15 kW devices from the PSB 10000 range. Furthermore, typical laboratory functionality is provided. This includes an extensive function generator, alarm and warning management, assorted interfaces and ports, software solutions and many more functions. |
|
| Download datasheet |
EA-PSB 10500-20 2U
| Manufacturer | EA - Elektro-Automatik |
| Power | 3000.00 W |
| Package | 2U Rack mount |
| Available output range (V) | 0-500 |
EA-PSB 10500-20 2U
| Manufacturer |
|
| Power | 3000.00 W |
| Package | 2U Rack mount |
| Input voltage | 110-240Vac ±10% single-phase |
| Efficiency | 0.00 |
| Available output range (V) | 0-500 |
| Output current (A) | 0-20 |
| Max output current | 0.00 |
| Electronic load input rating power | 0.00 |
| Warranty | 2 years |
| Water-cooled option | No |
Features:
|
|
| Description: The bidirectional DC laboratory power supplies in the PSB 10000 series from EA Elektro-Automatik are two quadrant devices which can perform the function of a power supply as well as that of an electronic load. In load mode the device is regenerative and feeds the energy back into the local grid with an efficiency up to over 96%. The PSB 10000 series includes single and three phase units, which, together with the wide input range, allows use with practically all global mains voltages. The DC voltage and current are directed by the application and the spectrum ranges from 0 - 10 V to 0 - 2000 V and from 0 - 6 A up to 0 - 1000 A in a single device. The DC supply operates as a flexible output stage with a constant power characteristic (autoranging), and a wide voltage, current and power range. To achieve higher power and current all units are equipped with a master-slave bus. This enables up to 64 parallel connected devices to be combined into one system which can provide up to 1920 W and 64000 A. Such a system works as a single unit and can use different power classes, only the voltage class must remain constant. In this way a user can construct a 75 kW system from two 30 kW and one 15 kW devices from the PSB 10000 range. Furthermore, typical laboratory functionality is provided. This includes an extensive function generator, alarm and warning management, assorted interfaces and ports, software solutions and many more functions. |
|
| Download datasheet |
EA-PSB 10750-12 2U
| Manufacturer | EA - Elektro-Automatik |
| Power | 3000.00 W |
| Package | 2U Rack mount |
| Available output range (V) | 0-750 |
EA-PSB 10750-12 2U
| Manufacturer |
|
| Power | 3000.00 W |
| Package | 2U Rack mount |
| Input voltage | 110-240Vac ±10% single-phase |
| Efficiency | 0.00 |
| Available output range (V) | 0-750 |
| Output current (A) | 0-12 |
| Max output current | 0.00 |
| Electronic load input rating power | 0.00 |
| Warranty | 2 years |
| Water-cooled option | No |
Features:
|
|
| Description: The bidirectional DC laboratory power supplies in the PSB 10000 series from EA Elektro-Automatik are two quadrant devices which can perform the function of a power supply as well as that of an electronic load. In load mode the device is regenerative and feeds the energy back into the local grid with an efficiency up to over 96%. The PSB 10000 series includes single and three phase units, which, together with the wide input range, allows use with practically all global mains voltages. The DC voltage and current are directed by the application and the spectrum ranges from 0 - 10 V to 0 - 2000 V and from 0 - 6 A up to 0 - 1000 A in a single device. The DC supply operates as a flexible output stage with a constant power characteristic (autoranging), and a wide voltage, current and power range. To achieve higher power and current all units are equipped with a master-slave bus. This enables up to 64 parallel connected devices to be combined into one system which can provide up to 1920 W and 64000 A. Such a system works as a single unit and can use different power classes, only the voltage class must remain constant. In this way a user can construct a 75 kW system from two 30 kW and one 15 kW devices from the PSB 10000 range. Furthermore, typical laboratory functionality is provided. This includes an extensive function generator, alarm and warning management, assorted interfaces and ports, software solutions and many more functions. |
|
| Download datasheet |
EA-PSB 11000-10 2U
| Manufacturer | EA - Elektro-Automatik |
| Power | 3000.00 W |
| Package | 2U Rack mount |
| Available output range (V) | 0-1000 |
EA-PSB 11000-10 2U
| Manufacturer |
|
| Power | 3000.00 W |
| Package | 2U Rack mount |
| Input voltage | 110-240Vac ±10% single-phase |
| Efficiency | 0.00 |
| Available output range (V) | 0-1000 |
| Output current (A) | 0-10 |
| Max output current | 0.00 |
| Electronic load input rating power | 0.00 |
| Warranty | 2 years |
| Water-cooled option | No |
Features:
|
|
| Description: The bidirectional DC laboratory power supplies in the PSB 10000 series from EA Elektro-Automatik are two quadrant devices which can perform the function of a power supply as well as that of an electronic load. In load mode the device is regenerative and feeds the energy back into the local grid with an efficiency up to over 96%. The PSB 10000 series includes single and three phase units, which, together with the wide input range, allows use with practically all global mains voltages. The DC voltage and current are directed by the application and the spectrum ranges from 0 - 10 V to 0 - 2000 V and from 0 - 6 A up to 0 - 1000 A in a single device. The DC supply operates as a flexible output stage with a constant power characteristic (autoranging), and a wide voltage, current and power range. To achieve higher power and current all units are equipped with a master-slave bus. This enables up to 64 parallel connected devices to be combined into one system which can provide up to 1920 W and 64000 A. Such a system works as a single unit and can use different power classes, only the voltage class must remain constant. In this way a user can construct a 75 kW system from two 30 kW and one 15 kW devices from the PSB 10000 range. Furthermore, typical laboratory functionality is provided. This includes an extensive function generator, alarm and warning management, assorted interfaces and ports, software solutions and many more functions. |
|
| Download datasheet |
EA-PSB 11500-06 2U
| Manufacturer | EA - Elektro-Automatik |
| Power | 3000.00 W |
| Package | 2U Rack mount |
| Available output range (V) | 0-1500 |
EA-PSB 11500-06 2U
| Manufacturer |
|
| Power | 3000.00 W |
| Package | 2U Rack mount |
| Input voltage | 110-240Vac ±10% single-phase |
| Efficiency | 0.00 |
| Available output range (V) | 0-1500 |
| Output current (A) | 0-6 |
| Max output current | 0.00 |
| Electronic load input rating power | 0.00 |
| Warranty | 2 years |
| Water-cooled option | No |
Features:
|
|
| Description: The bidirectional DC laboratory power supplies in the PSB 10000 series from EA Elektro-Automatik are two quadrant devices which can perform the function of a power supply as well as that of an electronic load. In load mode the device is regenerative and feeds the energy back into the local grid with an efficiency up to over 96%. The PSB 10000 series includes single and three phase units, which, together with the wide input range, allows use with practically all global mains voltages. The DC voltage and current are directed by the application and the spectrum ranges from 0 - 10 V to 0 - 2000 V and from 0 - 6 A up to 0 - 1000 A in a single device. The DC supply operates as a flexible output stage with a constant power characteristic (autoranging), and a wide voltage, current and power range. To achieve higher power and current all units are equipped with a master-slave bus. This enables up to 64 parallel connected devices to be combined into one system which can provide up to 1920 W and 64000 A. Such a system works as a single unit and can use different power classes, only the voltage class must remain constant. In this way a user can construct a 75 kW system from two 30 kW and one 15 kW devices from the PSB 10000 range. Furthermore, typical laboratory functionality is provided. This includes an extensive function generator, alarm and warning management, assorted interfaces and ports, software solutions and many more functions. |
|
| Download datasheet |
EA-PSB 10010-340 3U
| Manufacturer | EA - Elektro-Automatik |
| Power | 3400.00 W |
| Package | 3U Rack mount |
| Available output range (V) | 0-10 |
EA-PSB 10010-340 3U
| Manufacturer |
|
| Power | 3400.00 W |
| Package | 3U Rack mount |
| Input voltage | 208-480Vac ±10% 3-phase |
| Efficiency | 0.00 |
| Available output range (V) | 0-10 |
| Output current (A) | 0-340 |
| Max output current | 0.00 |
| Electronic load input rating power | 0.00 |
| Warranty | 2 years |
| Water-cooled option | No |
Features:
|
|
| Description: The bidirectional DC laboratory power supplies in the PSB 10000 series from EA Elektro-Automatik are two quadrant devices which can perform the function of a power supply as well as that of an electronic load. In load mode the device is regenerative and feeds the energy back into the local grid with an efficiency up to over 96%. The PSB 10000 series includes single and three phase units, which, together with the wide input range, allows use with practically all global mains voltages. The DC voltage and current are directed by the application and the spectrum ranges from 0 - 10 V to 0 - 2000 V and from 0 - 6 A up to 0 - 1000 A in a single device. The DC supply operates as a flexible output stage with a constant power characteristic (autoranging), and a wide voltage, current and power range. To achieve higher power and current all units are equipped with a master-slave bus. This enables up to 64 parallel connected devices to be combined into one system which can provide up to 1920 W and 64000 A. Such a system works as a single unit and can use different power classes, only the voltage class must remain constant. In this way a user can construct a 75 kW system from two 30 kW and one 15 kW devices from the PSB 10000 range. Furthermore, typical laboratory functionality is provided. This includes an extensive function generator, alarm and warning management, assorted interfaces and ports, software solutions and many more functions. |
|
| Download datasheet |

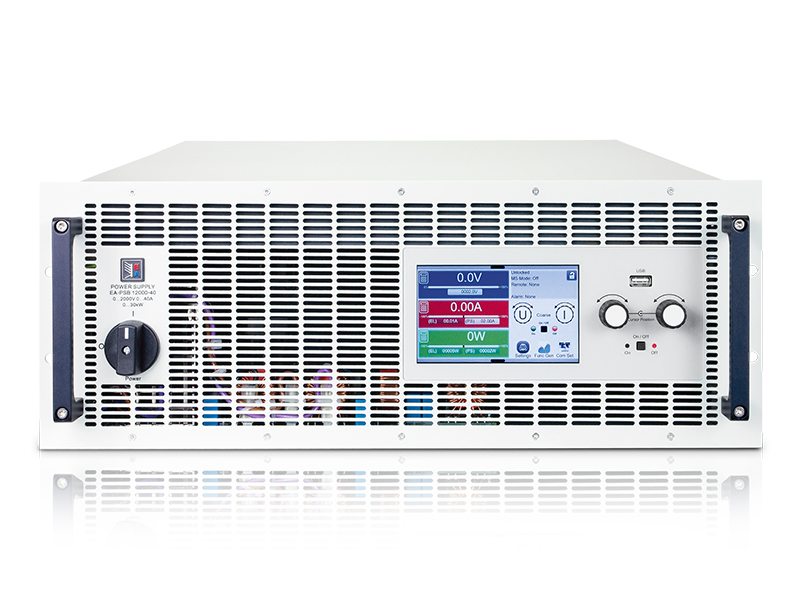

EA-BT 20010-400 Triple 4U
| Manufacturer | EA - Elektro-Automatik |
| Power | 4000.00 W |
| Package | 4U Rack mount |
| Available output range (V) | 0-10 |
EA-BT 20010-400 Triple 4U
| Manufacturer |
|
| Power | 4000.00 W |
| Package | 4U Rack mount |
| Input voltage | 380-480Vac ±10% 3-phase |
| Efficiency | 0.95 |
| Available output range (V) | 0-10 |
| Output current (A) | 400 A per channel |
| Max output current | 0.00 |
| Electronic load input rating power | 0.00 |
| Warranty | 2 years |
| Dimensions | 19“ x 4U x 668 mm |
| Weight | 50 kg (56 kg with water cooling) |
| Water-cooled option | Yes |
| Interface options | USB, Ethernet 1Gbit/s, EtherCAT, CAN FD, Master-Slave-Bus, Share-Bus, USB Host on Front panel, 3 digital inputs, 3 relay contacts, 3 temperature sensor inputs |
Features:
|
|
| Description: The battery tester with regenerative energy recovery in the BT 20000 Triple series from EA Elektro-Automatik are two quadrant devices with 3 channels which can perform the function of a charger as well as that of an electronic load (discharging). In discharging mode the device is regenerative and feeds the energy back into the local grid with an efficiency of up to over 96%. The BT 20000 triple series includes three phase units which, together with the wide input range, allows use with practically all global mains voltages. The DC voltages and currents are determined by the application and the spectrum ranges from 0 - 10 V to 0 - 920 V and from 0 - 40 A up to 0 - 600 A per channel in a single device. The DC supply operates as a flexible output stage with a constant power characteristic (autoranging) with a wide voltage and current range. To achieve higher power and current all units are equipped with a Master-Slave-Bus. This enables up to 3 parallel connected channels to be combined into one channel which can provide up to 30 kW and 1800 A. Such a combination works as a single channel and can use as a battery tester with higher power and current. In this way as an example a user can construct a battery cell tester with 3 channels of 0 - 10 V and 0 -600 A or one channel with 0 - 10 V and 0 - 1800 A. Furthermore typical battery tester alarm and warning management, various industrial interfaces, software solutions and many more functions are available. |
|
| Download datasheet |
EA-PSB 10060-170 3U
| Manufacturer | EA - Elektro-Automatik |
| Power | 5000.00 W |
| Package | 3U Rack mount |
| Available output range (V) | 0-60 |
EA-PSB 10060-170 3U
| Manufacturer |
|
| Power | 5000.00 W |
| Package | 3U Rack mount |
| Input voltage | 208-480Vac ±10% 3-phase |
| Efficiency | 0.00 |
| Available output range (V) | 0-60 |
| Output current (A) | 0-170 |
| Max output current | 0.00 |
| Electronic load input rating power | 0.00 |
| Warranty | 2 years |
| Water-cooled option | No |
Features:
|
|
| Description: The bidirectional DC laboratory power supplies in the PSB 10000 series from EA Elektro-Automatik are two quadrant devices which can perform the function of a power supply as well as that of an electronic load. In load mode the device is regenerative and feeds the energy back into the local grid with an efficiency up to over 96%. The PSB 10000 series includes single and three phase units, which, together with the wide input range, allows use with practically all global mains voltages. The DC voltage and current are directed by the application and the spectrum ranges from 0 - 10 V to 0 - 2000 V and from 0 - 6 A up to 0 - 1000 A in a single device. The DC supply operates as a flexible output stage with a constant power characteristic (autoranging), and a wide voltage, current and power range. To achieve higher power and current all units are equipped with a master-slave bus. This enables up to 64 parallel connected devices to be combined into one system which can provide up to 1920 W and 64000 A. Such a system works as a single unit and can use different power classes, only the voltage class must remain constant. In this way a user can construct a 75 kW system from two 30 kW and one 15 kW devices from the PSB 10000 range. Furthermore, typical laboratory functionality is provided. This includes an extensive function generator, alarm and warning management, assorted interfaces and ports, software solutions and many more functions. |
|
| Download datasheet |
EA-PSB 10080-170 3U
| Manufacturer | EA - Elektro-Automatik |
| Power | 5000.00 W |
| Package | 3U Rack mount |
| Available output range (V) | 0-80 |
EA-PSB 10080-170 3U
| Manufacturer |
|
| Power | 5000.00 W |
| Package | 3U Rack mount |
| Input voltage | 208-480Vac ±10% 3-phase |
| Efficiency | 0.00 |
| Available output range (V) | 0-80 |
| Output current (A) | 0-170 |
| Max output current | 0.00 |
| Electronic load input rating power | 0.00 |
| Warranty | 2 years |
| Water-cooled option | No |
Features:
|
|
| Description: The bidirectional DC laboratory power supplies in the PSB 10000 series from EA Elektro-Automatik are two quadrant devices which can perform the function of a power supply as well as that of an electronic load. In load mode the device is regenerative and feeds the energy back into the local grid with an efficiency up to over 96%. The PSB 10000 series includes single and three phase units, which, together with the wide input range, allows use with practically all global mains voltages. The DC voltage and current are directed by the application and the spectrum ranges from 0 - 10 V to 0 - 2000 V and from 0 - 6 A up to 0 - 1000 A in a single device. The DC supply operates as a flexible output stage with a constant power characteristic (autoranging), and a wide voltage, current and power range. To achieve higher power and current all units are equipped with a master-slave bus. This enables up to 64 parallel connected devices to be combined into one system which can provide up to 1920 W and 64000 A. Such a system works as a single unit and can use different power classes, only the voltage class must remain constant. In this way a user can construct a 75 kW system from two 30 kW and one 15 kW devices from the PSB 10000 range. Furthermore, typical laboratory functionality is provided. This includes an extensive function generator, alarm and warning management, assorted interfaces and ports, software solutions and many more functions. |
|
| Download datasheet |
EA-PSB 10200-70 3U
| Manufacturer | EA - Elektro-Automatik |
| Power | 5000.00 W |
| Package | 3U Rack mount |
| Available output range (V) | 0-200 |
EA-PSB 10200-70 3U
| Manufacturer |
|
| Power | 5000.00 W |
| Package | 3U Rack mount |
| Input voltage | 208-480Vac ±10% 3-phase |
| Efficiency | 0.00 |
| Available output range (V) | 0-200 |
| Output current (A) | 0-70 |
| Max output current | 0.00 |
| Electronic load input rating power | 0.00 |
| Warranty | 2 years |
| Water-cooled option | No |
Features:
|
|
| Description: The bidirectional DC laboratory power supplies in the PSB 10000 series from EA Elektro-Automatik are two quadrant devices which can perform the function of a power supply as well as that of an electronic load. In load mode the device is regenerative and feeds the energy back into the local grid with an efficiency up to over 96%. The PSB 10000 series includes single and three phase units, which, together with the wide input range, allows use with practically all global mains voltages. The DC voltage and current are directed by the application and the spectrum ranges from 0 - 10 V to 0 - 2000 V and from 0 - 6 A up to 0 - 1000 A in a single device. The DC supply operates as a flexible output stage with a constant power characteristic (autoranging), and a wide voltage, current and power range. To achieve higher power and current all units are equipped with a master-slave bus. This enables up to 64 parallel connected devices to be combined into one system which can provide up to 1920 W and 64000 A. Such a system works as a single unit and can use different power classes, only the voltage class must remain constant. In this way a user can construct a 75 kW system from two 30 kW and one 15 kW devices from the PSB 10000 range. Furthermore, typical laboratory functionality is provided. This includes an extensive function generator, alarm and warning management, assorted interfaces and ports, software solutions and many more functions. |
|
| Download datasheet |
EA-PSB 10360-40 3U
| Manufacturer | EA - Elektro-Automatik |
| Power | 5000.00 W |
| Package | 3U Rack mount |
| Available output range (V) | 0-360 |
EA-PSB 10360-40 3U
| Manufacturer |
|
| Power | 5000.00 W |
| Package | 3U Rack mount |
| Input voltage | 208-480Vac ±10% 3-phase |
| Efficiency | 0.00 |
| Available output range (V) | 0-360 |
| Output current (A) | 0-40 |
| Max output current | 0.00 |
| Electronic load input rating power | 0.00 |
| Warranty | 2 years |
| Water-cooled option | No |
Features:
|
|
| Description: The bidirectional DC laboratory power supplies in the PSB 10000 series from EA Elektro-Automatik are two quadrant devices which can perform the function of a power supply as well as that of an electronic load. In load mode the device is regenerative and feeds the energy back into the local grid with an efficiency up to over 96%. The PSB 10000 series includes single and three phase units, which, together with the wide input range, allows use with practically all global mains voltages. The DC voltage and current are directed by the application and the spectrum ranges from 0 - 10 V to 0 - 2000 V and from 0 - 6 A up to 0 - 1000 A in a single device. The DC supply operates as a flexible output stage with a constant power characteristic (autoranging), and a wide voltage, current and power range. To achieve higher power and current all units are equipped with a master-slave bus. This enables up to 64 parallel connected devices to be combined into one system which can provide up to 1920 W and 64000 A. Such a system works as a single unit and can use different power classes, only the voltage class must remain constant. In this way a user can construct a 75 kW system from two 30 kW and one 15 kW devices from the PSB 10000 range. Furthermore, typical laboratory functionality is provided. This includes an extensive function generator, alarm and warning management, assorted interfaces and ports, software solutions and many more functions. |
|
| Download datasheet |
EA-PSB 10500-30 3U
| Manufacturer | EA - Elektro-Automatik |
| Power | 5000.00 W |
| Package | 3U Rack mount |
| Available output range (V) | 0-500 |
EA-PSB 10500-30 3U
| Manufacturer |
|
| Power | 5000.00 W |
| Package | 3U Rack mount |
| Input voltage | 208-480Vac ±10% 3-phase |
| Efficiency | 0.00 |
| Available output range (V) | 0-500 |
| Output current (A) | 0-30 |
| Max output current | 0.00 |
| Electronic load input rating power | 0.00 |
| Warranty | 2 years |
| Water-cooled option | No |
Features:
|
|
| Description: The bidirectional DC laboratory power supplies in the PSB 10000 series from EA Elektro-Automatik are two quadrant devices which can perform the function of a power supply as well as that of an electronic load. In load mode the device is regenerative and feeds the energy back into the local grid with an efficiency up to over 96%. The PSB 10000 series includes single and three phase units, which, together with the wide input range, allows use with practically all global mains voltages. The DC voltage and current are directed by the application and the spectrum ranges from 0 - 10 V to 0 - 2000 V and from 0 - 6 A up to 0 - 1000 A in a single device. The DC supply operates as a flexible output stage with a constant power characteristic (autoranging), and a wide voltage, current and power range. To achieve higher power and current all units are equipped with a master-slave bus. This enables up to 64 parallel connected devices to be combined into one system which can provide up to 1920 W and 64000 A. Such a system works as a single unit and can use different power classes, only the voltage class must remain constant. In this way a user can construct a 75 kW system from two 30 kW and one 15 kW devices from the PSB 10000 range. Furthermore, typical laboratory functionality is provided. This includes an extensive function generator, alarm and warning management, assorted interfaces and ports, software solutions and many more functions. |
|
| Download datasheet |
EA-PSB 10750-20 3U
| Manufacturer | EA - Elektro-Automatik |
| Power | 5000.00 W |
| Package | 3U Rack mount |
| Available output range (V) | 0-750 |
EA-PSB 10750-20 3U
| Manufacturer |
|
| Power | 5000.00 W |
| Package | 3U Rack mount |
| Input voltage | 208-480Vac ±10% 3-phase |
| Efficiency | 0.00 |
| Available output range (V) | 0-750 |
| Output current (A) | 0-20 |
| Max output current | 0.00 |
| Electronic load input rating power | 0.00 |
| Warranty | 2 years |
| Water-cooled option | No |
Features:
|
|
| Description: The bidirectional DC laboratory power supplies in the PSB 10000 series from EA Elektro-Automatik are two quadrant devices which can perform the function of a power supply as well as that of an electronic load. In load mode the device is regenerative and feeds the energy back into the local grid with an efficiency up to over 96%. The PSB 10000 series includes single and three phase units, which, together with the wide input range, allows use with practically all global mains voltages. The DC voltage and current are directed by the application and the spectrum ranges from 0 - 10 V to 0 - 2000 V and from 0 - 6 A up to 0 - 1000 A in a single device. The DC supply operates as a flexible output stage with a constant power characteristic (autoranging), and a wide voltage, current and power range. To achieve higher power and current all units are equipped with a master-slave bus. This enables up to 64 parallel connected devices to be combined into one system which can provide up to 1920 W and 64000 A. Such a system works as a single unit and can use different power classes, only the voltage class must remain constant. In this way a user can construct a 75 kW system from two 30 kW and one 15 kW devices from the PSB 10000 range. Furthermore, typical laboratory functionality is provided. This includes an extensive function generator, alarm and warning management, assorted interfaces and ports, software solutions and many more functions. |
|
| Download datasheet |
EA-PSB 10010-510 3U
| Manufacturer | EA - Elektro-Automatik |
| Power | 5100.00 W |
| Package | 3U Rack mount |
| Available output range (V) | 0-10 |
EA-PSB 10010-510 3U
| Manufacturer |
|
| Power | 5100.00 W |
| Package | 3U Rack mount |
| Input voltage | 208-480Vac ±10% 3-phase |
| Efficiency | 0.00 |
| Available output range (V) | 0-10 |
| Output current (A) | 0-510 |
| Max output current | 0.00 |
| Electronic load input rating power | 0.00 |
| Warranty | 2 years |
| Water-cooled option | No |
Features:
|
|
| Description: The bidirectional DC laboratory power supplies in the PSB 10000 series from EA Elektro-Automatik are two quadrant devices which can perform the function of a power supply as well as that of an electronic load. In load mode the device is regenerative and feeds the energy back into the local grid with an efficiency up to over 96%. The PSB 10000 series includes single and three phase units, which, together with the wide input range, allows use with practically all global mains voltages. The DC voltage and current are directed by the application and the spectrum ranges from 0 - 10 V to 0 - 2000 V and from 0 - 6 A up to 0 - 1000 A in a single device. The DC supply operates as a flexible output stage with a constant power characteristic (autoranging), and a wide voltage, current and power range. To achieve higher power and current all units are equipped with a master-slave bus. This enables up to 64 parallel connected devices to be combined into one system which can provide up to 1920 W and 64000 A. Such a system works as a single unit and can use different power classes, only the voltage class must remain constant. In this way a user can construct a 75 kW system from two 30 kW and one 15 kW devices from the PSB 10000 range. Furthermore, typical laboratory functionality is provided. This includes an extensive function generator, alarm and warning management, assorted interfaces and ports, software solutions and many more functions. |
|
| Download datasheet |
EA-BT 20010-600 3U
| Manufacturer | EA - Elektro-Automatik |
| Power | 6000.00 W |
| Package | 3U |
| Available output range (V) | 0-10 |
EA-BT 20010-600 3U
| Manufacturer |
|
| Power | 6000.00 W |
| Package | 3U |
| Input voltage | 208-480Vac ±10% 3-phase |
| Efficiency | 0.00 |
| Available output range (V) | 0-10 |
| Output current (A) | 0-600 |
| Max output current | 0.00 |
| Electronic load input rating power | 0.00 |
| Dimensions | 483x777x668mm |
| Weight | 32.8 |
| Water-cooled option | No |
Features:
|
|
| Description: The battery tester with regenerative energy recovery in the BT 20000 series from EA Elektro-Automatik are two quadrant devices which can perform the function of a charger as well as that of an electric load (discharging). In discharging mode the device is regenerative and feeds the energy back into the local grid with an efficiency of up to over 96%. The BT 20000 series includes three phase units which, together with the wide input range, allows use with practically all global mains voltages. The DC voltages and currents are determined by the application and the spectrum ranges from 0-10 V to 0-2000 V and from 0-40 A up to 0-1000 A in a single device. The DC supply operates as a flexible output stage with a constant power characteristic (autoranging) with a wide voltage and current range. To achieve higher power and currents all units are equipped with a Master-Slave-Bus. This enables up to 64 parallel connected devices to be combined into one system which can provide up to 1920 kW and 64000 A. Such a system works as a single unit and can use as a battery module tester or as a battery pack tester. In this way as an example a user can construct a 150 kW battery pack tester system from five 30 kW 4U units BT 20000. Furthermore typically battery tester alarm and warning management, various industrial interfaces, software solutions and many more functions are available. |
|
| Download datasheet |
EA-BT 20010-600 Triple 4U
| Manufacturer | EA - Elektro-Automatik |
| Power | 6000.00 W |
| Package | 4U Rack mount |
| Available output range (V) | 0-10 |
EA-BT 20010-600 Triple 4U
| Manufacturer |
|
| Power | 6000.00 W |
| Package | 4U Rack mount |
| Input voltage | 380-480Vac ±10% 3-phase |
| Efficiency | 0.95 |
| Available output range (V) | 0-10 |
| Output current (A) | 600 A per channel |
| Max output current | 0.00 |
| Electronic load input rating power | 0.00 |
| Warranty | 2 years |
| Dimensions | 19“ x 4U x 668 mm |
| Weight | 50 kg (56 kg with water cooling) |
| Water-cooled option | Yes |
| Interface options | USB, Ethernet 1Gbit/s, EtherCAT, CAN FD, Master-Slave-Bus, Share-Bus, USB Host on Front panel, 3 digital inputs, 3 relay contacts, 3 temperature sensor inputs |
Features:
|
|
| Description: The battery tester with regenerative energy recovery in the BT 20000 Triple series from EA Elektro-Automatik are two quadrant devices with 3 channels which can perform the function of a charger as well as that of an electronic load (discharging). In discharging mode the device is regenerative and feeds the energy back into the local grid with an efficiency of up to over 96%. The BT 20000 triple series includes three phase units which, together with the wide input range, allows use with practically all global mains voltages. The DC voltages and currents are determined by the application and the spectrum ranges from 0 - 10 V to 0 - 920 V and from 0 - 40 A up to 0 - 600 A per channel in a single device. The DC supply operates as a flexible output stage with a constant power characteristic (autoranging) with a wide voltage and current range. To achieve higher power and current all units are equipped with a Master-Slave-Bus. This enables up to 3 parallel connected channels to be combined into one channel which can provide up to 30 kW and 1800 A. Such a combination works as a single channel and can use as a battery tester with higher power and current. In this way as an example a user can construct a battery cell tester with 3 channels of 0 - 10 V and 0 -600 A or one channel with 0 - 10 V and 0 - 1800 A. Furthermore typical battery tester alarm and warning management, various industrial interfaces, software solutions and many more functions are available. |
|
| Download datasheet |
EA-PSB 10010-1000 4U
| Manufacturer | EA - Elektro-Automatik |
| Power | 10000.00 W |
| Package | 4U Rack mount |
| Available output range (V) | 0-10 |
EA-PSB 10010-1000 4U
| Manufacturer |
|
| Power | 10000.00 W |
| Package | 4U Rack mount |
| Notes | Bidirectional - power supply and load in one |
| Input voltage | 342-528Vac 3-phase |
| Efficiency | 0.00 |
| Available output range (V) | 0-10 |
| Output current (A) | 0-1000 |
| Max output current | 0.00 |
| Electronic load input rating power | 0.00 |
| Warranty | 2 years |
| Dimensions | 19" x 4U x 670 mm |
| Weight | 44 |
| Water-cooled option | No |
| Manual | Link |
| Attachments | Link |
Features:
|
|
| Description: The new bidirectional power supplies of series EA-PSB 10000 off much power in in a small space: 30 kW in only 4 units of height (4U). Compared to series EA-PSB 9000 3U it saves a space of 2U, or one third, when considering the 30 kW of rated power. It also incorporates two devices in one: a power supply (source) and an electronic load (sink) with energy recovery. Based on these two features the devices offer the functionality of two-quadrants operation as standard. The internal electronic load achieves a high voltage dynamics by discharging the unavoidable capacitance on the DC terminal. For a connected source, the devices are full electronic loads with energy recovery feature, ideal for bigger systems with a total power of up to 1.08 megawatts. In source operation mode the device becomes a flexible, autoranging power supply like those of series EAPSI 9000 3U. It incorporates the advantages of both device types into one and at the same time it eliminates the disadvantages of separate units regarding weight, space requirement, costs and effort to implement them into custom test software. |
|
| Download datasheet |
EA-PSB 10060-340 3U
| Manufacturer | EA - Elektro-Automatik |
| Power | 10000.00 W |
| Package | 3U Rack mount |
| Available output range (V) | 0-60 |
EA-PSB 10060-340 3U
| Manufacturer |
|
| Power | 10000.00 W |
| Package | 3U Rack mount |
| Input voltage | 208-480Vac ±10% 3-phase |
| Efficiency | 0.00 |
| Available output range (V) | 0-60 |
| Output current (A) | 0-340 |
| Max output current | 0.00 |
| Electronic load input rating power | 0.00 |
| Warranty | 2 years |
| Water-cooled option | No |
Features:
|
|
| Description: The bidirectional DC laboratory power supplies in the PSB 10000 series from EA Elektro-Automatik are two quadrant devices which can perform the function of a power supply as well as that of an electronic load. In load mode the device is regenerative and feeds the energy back into the local grid with an efficiency up to over 96%. The PSB 10000 series includes single and three phase units, which, together with the wide input range, allows use with practically all global mains voltages. The DC voltage and current are directed by the application and the spectrum ranges from 0 - 10 V to 0 - 2000 V and from 0 - 6 A up to 0 - 1000 A in a single device. The DC supply operates as a flexible output stage with a constant power characteristic (autoranging), and a wide voltage, current and power range. To achieve higher power and current all units are equipped with a master-slave bus. This enables up to 64 parallel connected devices to be combined into one system which can provide up to 1920 W and 64000 A. Such a system works as a single unit and can use different power classes, only the voltage class must remain constant. In this way a user can construct a 75 kW system from two 30 kW and one 15 kW devices from the PSB 10000 range. Furthermore, typical laboratory functionality is provided. This includes an extensive function generator, alarm and warning management, assorted interfaces and ports, software solutions and many more functions. |
|
| Download datasheet |
EA-PSB 10080-340 3U
| Manufacturer | EA - Elektro-Automatik |
| Power | 10000.00 W |
| Package | 3U Rack mount |
| Available output range (V) | 0-80 |
EA-PSB 10080-340 3U
| Manufacturer |
|
| Power | 10000.00 W |
| Package | 3U Rack mount |
| Input voltage | 208-480Vac ±10% 3-phase |
| Efficiency | 0.00 |
| Available output range (V) | 0-80 |
| Output current (A) | 0-340 |
| Max output current | 0.00 |
| Electronic load input rating power | 0.00 |
| Warranty | 2 years |
| Water-cooled option | No |
Features:
|
|
| Description: The bidirectional DC laboratory power supplies in the PSB 10000 series from EA Elektro-Automatik are two quadrant devices which can perform the function of a power supply as well as that of an electronic load. In load mode the device is regenerative and feeds the energy back into the local grid with an efficiency up to over 96%. The PSB 10000 series includes single and three phase units, which, together with the wide input range, allows use with practically all global mains voltages. The DC voltage and current are directed by the application and the spectrum ranges from 0 - 10 V to 0 - 2000 V and from 0 - 6 A up to 0 - 1000 A in a single device. The DC supply operates as a flexible output stage with a constant power characteristic (autoranging), and a wide voltage, current and power range. To achieve higher power and current all units are equipped with a master-slave bus. This enables up to 64 parallel connected devices to be combined into one system which can provide up to 1920 W and 64000 A. Such a system works as a single unit and can use different power classes, only the voltage class must remain constant. In this way a user can construct a 75 kW system from two 30 kW and one 15 kW devices from the PSB 10000 range. Furthermore, typical laboratory functionality is provided. This includes an extensive function generator, alarm and warning management, assorted interfaces and ports, software solutions and many more functions. |
|
| Download datasheet |
EA-PSB 10200-140 3U
| Manufacturer | EA - Elektro-Automatik |
| Power | 10000.00 W |
| Package | 3U Rack mount |
| Available output range (V) | 0-200 |
EA-PSB 10200-140 3U
| Manufacturer |
|
| Power | 10000.00 W |
| Package | 3U Rack mount |
| Input voltage | 208-480Vac ±10% 3-phase |
| Efficiency | 0.00 |
| Available output range (V) | 0-200 |
| Output current (A) | 0-140 |
| Max output current | 0.00 |
| Electronic load input rating power | 0.00 |
| Warranty | 2 years |
| Water-cooled option | No |
Features:
|
|
| Description: The bidirectional DC laboratory power supplies in the PSB 10000 series from EA Elektro-Automatik are two quadrant devices which can perform the function of a power supply as well as that of an electronic load. In load mode the device is regenerative and feeds the energy back into the local grid with an efficiency up to over 96%. The PSB 10000 series includes single and three phase units, which, together with the wide input range, allows use with practically all global mains voltages. The DC voltage and current are directed by the application and the spectrum ranges from 0 - 10 V to 0 - 2000 V and from 0 - 6 A up to 0 - 1000 A in a single device. The DC supply operates as a flexible output stage with a constant power characteristic (autoranging), and a wide voltage, current and power range. To achieve higher power and current all units are equipped with a master-slave bus. This enables up to 64 parallel connected devices to be combined into one system which can provide up to 1920 W and 64000 A. Such a system works as a single unit and can use different power classes, only the voltage class must remain constant. In this way a user can construct a 75 kW system from two 30 kW and one 15 kW devices from the PSB 10000 range. Furthermore, typical laboratory functionality is provided. This includes an extensive function generator, alarm and warning management, assorted interfaces and ports, software solutions and many more functions. |
|
| Download datasheet |
EA-PSB 10360-80 3U
| Manufacturer | EA - Elektro-Automatik |
| Power | 10000.00 W |
| Package | 3U Rack mount |
| Available output range (V) | 0-360 |
EA-PSB 10360-80 3U
| Manufacturer |
|
| Power | 10000.00 W |
| Package | 3U Rack mount |
| Input voltage | 208-480Vac ±10% 3-phase |
| Efficiency | 0.00 |
| Available output range (V) | 0-360 |
| Output current (A) | 0-80 |
| Max output current | 0.00 |
| Electronic load input rating power | 0.00 |
| Warranty | 2 years |
| Water-cooled option | No |
Features:
|
|
| Description: The bidirectional DC laboratory power supplies in the PSB 10000 series from EA Elektro-Automatik are two quadrant devices which can perform the function of a power supply as well as that of an electronic load. In load mode the device is regenerative and feeds the energy back into the local grid with an efficiency up to over 96%. The PSB 10000 series includes single and three phase units, which, together with the wide input range, allows use with practically all global mains voltages. The DC voltage and current are directed by the application and the spectrum ranges from 0 - 10 V to 0 - 2000 V and from 0 - 6 A up to 0 - 1000 A in a single device. The DC supply operates as a flexible output stage with a constant power characteristic (autoranging), and a wide voltage, current and power range. To achieve higher power and current all units are equipped with a master-slave bus. This enables up to 64 parallel connected devices to be combined into one system which can provide up to 1920 W and 64000 A. Such a system works as a single unit and can use different power classes, only the voltage class must remain constant. In this way a user can construct a 75 kW system from two 30 kW and one 15 kW devices from the PSB 10000 range. Furthermore, typical laboratory functionality is provided. This includes an extensive function generator, alarm and warning management, assorted interfaces and ports, software solutions and many more functions. |
|
| Download datasheet |
EA-PSB 10500-60 3U
| Manufacturer | EA - Elektro-Automatik |
| Power | 10000.00 W |
| Package | 3U Rack mount |
| Available output range (V) | 0-500 |
EA-PSB 10500-60 3U
| Manufacturer |
|
| Power | 10000.00 W |
| Package | 3U Rack mount |
| Input voltage | 208-480Vac ±10% 3-phase |
| Efficiency | 0.00 |
| Available output range (V) | 0-500 |
| Output current (A) | 0-60 |
| Max output current | 0.00 |
| Electronic load input rating power | 0.00 |
| Warranty | 2 years |
| Water-cooled option | No |
Features:
|
|
| Description: The bidirectional DC laboratory power supplies in the PSB 10000 series from EA Elektro-Automatik are two quadrant devices which can perform the function of a power supply as well as that of an electronic load. In load mode the device is regenerative and feeds the energy back into the local grid with an efficiency up to over 96%. The PSB 10000 series includes single and three phase units, which, together with the wide input range, allows use with practically all global mains voltages. The DC voltage and current are directed by the application and the spectrum ranges from 0 - 10 V to 0 - 2000 V and from 0 - 6 A up to 0 - 1000 A in a single device. The DC supply operates as a flexible output stage with a constant power characteristic (autoranging), and a wide voltage, current and power range. To achieve higher power and current all units are equipped with a master-slave bus. This enables up to 64 parallel connected devices to be combined into one system which can provide up to 1920 W and 64000 A. Such a system works as a single unit and can use different power classes, only the voltage class must remain constant. In this way a user can construct a 75 kW system from two 30 kW and one 15 kW devices from the PSB 10000 range. Furthermore, typical laboratory functionality is provided. This includes an extensive function generator, alarm and warning management, assorted interfaces and ports, software solutions and many more functions. |
|
| Download datasheet |
EA-PSB 10750-40 3U
| Manufacturer | EA - Elektro-Automatik |
| Power | 10000.00 W |
| Package | 3U Rack mount |
| Available output range (V) | 0-750 |
EA-PSB 10750-40 3U
| Manufacturer |
|
| Power | 10000.00 W |
| Package | 3U Rack mount |
| Input voltage | 208-480Vac ±10% 3-phase |
| Efficiency | 0.00 |
| Available output range (V) | 0-750 |
| Output current (A) | 0-40 |
| Max output current | 0.00 |
| Electronic load input rating power | 0.00 |
| Warranty | 2 years |
| Water-cooled option | No |
Features:
|
|
| Description: The bidirectional DC laboratory power supplies in the PSB 10000 series from EA Elektro-Automatik are two quadrant devices which can perform the function of a power supply as well as that of an electronic load. In load mode the device is regenerative and feeds the energy back into the local grid with an efficiency up to over 96%. The PSB 10000 series includes single and three phase units, which, together with the wide input range, allows use with practically all global mains voltages. The DC voltage and current are directed by the application and the spectrum ranges from 0 - 10 V to 0 - 2000 V and from 0 - 6 A up to 0 - 1000 A in a single device. The DC supply operates as a flexible output stage with a constant power characteristic (autoranging), and a wide voltage, current and power range. To achieve higher power and current all units are equipped with a master-slave bus. This enables up to 64 parallel connected devices to be combined into one system which can provide up to 1920 W and 64000 A. Such a system works as a single unit and can use different power classes, only the voltage class must remain constant. In this way a user can construct a 75 kW system from two 30 kW and one 15 kW devices from the PSB 10000 range. Furthermore, typical laboratory functionality is provided. This includes an extensive function generator, alarm and warning management, assorted interfaces and ports, software solutions and many more functions. |
|
| Download datasheet |
EA-PSB 11000-30 3U
| Manufacturer | EA - Elektro-Automatik |
| Power | 10000.00 W |
| Package | 3U Rack mount |
| Available output range (V) | 0-1000 |
EA-PSB 11000-30 3U
| Manufacturer |
|
| Power | 10000.00 W |
| Package | 3U Rack mount |
| Input voltage | 208-480Vac ±10% 3-phase |
| Efficiency | 0.00 |
| Available output range (V) | 0-1000 |
| Output current (A) | 0-30 |
| Max output current | 0.00 |
| Electronic load input rating power | 0.00 |
| Warranty | 2 years |
| Water-cooled option | No |
Features:
|
|
| Description: The bidirectional DC laboratory power supplies in the PSB 10000 series from EA Elektro-Automatik are two quadrant devices which can perform the function of a power supply as well as that of an electronic load. In load mode the device is regenerative and feeds the energy back into the local grid with an efficiency up to over 96%. The PSB 10000 series includes single and three phase units, which, together with the wide input range, allows use with practically all global mains voltages. The DC voltage and current are directed by the application and the spectrum ranges from 0 - 10 V to 0 - 2000 V and from 0 - 6 A up to 0 - 1000 A in a single device. The DC supply operates as a flexible output stage with a constant power characteristic (autoranging), and a wide voltage, current and power range. To achieve higher power and current all units are equipped with a master-slave bus. This enables up to 64 parallel connected devices to be combined into one system which can provide up to 1920 W and 64000 A. Such a system works as a single unit and can use different power classes, only the voltage class must remain constant. In this way a user can construct a 75 kW system from two 30 kW and one 15 kW devices from the PSB 10000 range. Furthermore, typical laboratory functionality is provided. This includes an extensive function generator, alarm and warning management, assorted interfaces and ports, software solutions and many more functions. |
|
| Download datasheet |
EA-PSB 11500-20 3U
| Manufacturer | EA - Elektro-Automatik |
| Power | 10000.00 W |
| Package | 3U Rack mount |
| Available output range (V) | 0-1500 |
EA-PSB 11500-20 3U
| Manufacturer |
|
| Power | 10000.00 W |
| Package | 3U Rack mount |
| Input voltage | 208-480Vac ±10% 3-phase |
| Efficiency | 0.00 |
| Available output range (V) | 0-1500 |
| Output current (A) | 0-20 |
| Max output current | 0.00 |
| Electronic load input rating power | 0.00 |
| Warranty | 2 years |
| Water-cooled option | No |
Features:
|
|
| Description: The bidirectional DC laboratory power supplies in the PSB 10000 series from EA Elektro-Automatik are two quadrant devices which can perform the function of a power supply as well as that of an electronic load. In load mode the device is regenerative and feeds the energy back into the local grid with an efficiency up to over 96%. The PSB 10000 series includes single and three phase units, which, together with the wide input range, allows use with practically all global mains voltages. The DC voltage and current are directed by the application and the spectrum ranges from 0 - 10 V to 0 - 2000 V and from 0 - 6 A up to 0 - 1000 A in a single device. The DC supply operates as a flexible output stage with a constant power characteristic (autoranging), and a wide voltage, current and power range. To achieve higher power and current all units are equipped with a master-slave bus. This enables up to 64 parallel connected devices to be combined into one system which can provide up to 1920 W and 64000 A. Such a system works as a single unit and can use different power classes, only the voltage class must remain constant. In this way a user can construct a 75 kW system from two 30 kW and one 15 kW devices from the PSB 10000 range. Furthermore, typical laboratory functionality is provided. This includes an extensive function generator, alarm and warning management, assorted interfaces and ports, software solutions and many more functions. |
|
| Download datasheet |
EA-BT 20010-1000 4U
| Manufacturer | EA - Elektro-Automatik |
| Power | 10000.00 W |
| Package | 4U Rack mount |
| Available output range (V) | 0-10 |
EA-BT 20010-1000 4U
| Manufacturer |
|
| Power | 10000.00 W |
| Package | 4U Rack mount |
| Input voltage | 380-480Vac ±10% 3-phase |
| Efficiency | 0.95 |
| Available output range (V) | 0-10 |
| Output current (A) | 0-1000 |
| Max output current | 0.00 |
| Electronic load input rating power | 0.00 |
| Warranty | 2 years |
| Dimensions | 19“ x 4U x 668 mm |
| Weight | 50 kg (56 kg with water cooling) |
| Water-cooled option | Yes |
| Interface options | USB, Ethernet, 1Gbit/s, EtherCAT, CAN FD, USB host |
Features:
|
|
| Description: The battery tester with regenerative energy recovery in the BT 20000 series from EA Elektro-Automatik are two quadrant devices which can perform the function of a charger as well as that of an electronic load (discharging). In discharging mode the device is regenerative and feeds the energy back into the local grid with an efficiency of up to over 96%. The BT 20000 series includes three phase units which, together with the wide input range, allows use with practically all global mains voltages. The DC voltages and currents are determined by the application and the spectrum ranges from 0 - 10 V to 0 - 2000 V and from 0 - 40 A up to 0 - 1000 A in a single device. The DC supply operates as a flexible output stage with a constant power characteristic (autoranging) with a wide voltage and current range. To achieve higher power and current all units are equipped with a Master-Slave-Bus. This enables up to 64 parallel connected devices to be combined into one system which can provide up to 1920 kW and 64000 A. Such a system works as a single unit and can use as a battery module tester or as a battery pack tester. In this way as an example a user can construct a 150 kW battery pack tester system from five 30 kW 4U units BT 20000. Furthermore typical battery tester alarm and warning management, various industrial interfaces, software solutions and many more functions are available. |
|
| Download datasheet |
EA-BT 20500-60 Triple 4U
| Manufacturer | EA - Elektro-Automatik |
| Power | 10000.00 W |
| Package | 4U Rack mount |
| Available output range (V) | 0-500 |
EA-BT 20500-60 Triple 4U
| Manufacturer |
|
| Power | 10000.00 W |
| Package | 4U Rack mount |
| Input voltage | 380-480Vac ±10% 3-phase |
| Efficiency | 0.97 |
| Available output range (V) | 0-500 |
| Output current (A) | 60 A per channel |
| Max output current | 0.00 |
| Electronic load input rating power | 0.00 |
| Warranty | 2 years |
| Dimensions | 19“ x 4U x 668 mm |
| Weight | 50 kg (56 kg with water cooling) |
| Water-cooled option | Yes |
| Interface options | USB, Ethernet 1Gbit/s, EtherCAT, CAN FD, Master-Slave-Bus, Share-Bus, USB Host on Front panel, 3 digital inputs, 3 relay contacts, 3 temperature sensor inputs |
Features:
|
|
| Description: The battery tester with regenerative energy recovery in the BT 20000 Triple series from EA Elektro-Automatik are two quadrant devices with 3 channels which can perform the function of a charger as well as that of an electronic load (discharging). In discharging mode the device is regenerative and feeds the energy back into the local grid with an efficiency of up to over 96%. The BT 20000 triple series includes three phase units which, together with the wide input range, allows use with practically all global mains voltages. The DC voltages and currents are determined by the application and the spectrum ranges from 0 - 10 V to 0 - 920 V and from 0 - 40 A up to 0 - 600 A per channel in a single device. The DC supply operates as a flexible output stage with a constant power characteristic (autoranging) with a wide voltage and current range. To achieve higher power and current all units are equipped with a Master-Slave-Bus. This enables up to 3 parallel connected channels to be combined into one channel which can provide up to 30 kW and 1800 A. Such a combination works as a single channel and can use as a battery tester with higher power and current. In this way as an example a user can construct a battery cell tester with 3 channels of 0 - 10 V and 0 -600 A or one channel with 0 - 10 V and 0 - 1800 A. Furthermore typical battery tester alarm and warning management, various industrial interfaces, software solutions and many more functions are available. |
|
| Download datasheet |
EA-BT 20060-340 Triple 4U
| Manufacturer | EA - Elektro-Automatik |
| Power | 10000.00 W |
| Package | 4U Rack mount |
| Available output range (V) | 0-60 |
EA-BT 20060-340 Triple 4U
| Manufacturer |
|
| Power | 10000.00 W |
| Package | 4U Rack mount |
| Input voltage | 380-480Vac ±10% 3-phase |
| Efficiency | 0.95 |
| Available output range (V) | 0-60 |
| Output current (A) | 340 A per channel |
| Max output current | 0.00 |
| Electronic load input rating power | 0.00 |
| Warranty | 2 years |
| Dimensions | 19“ x 4U x 668 mm |
| Weight | 50 kg (56 kg with water cooling) |
| Water-cooled option | Yes |
| Interface options | USB, Ethernet 1Gbit/s, EtherCAT, CAN FD, Master-Slave-Bus, Share-Bus, USB Host on Front panel, 3 digital inputs, 3 relay contacts, 3 temperature sensor inputs |
Features:
|
|
| Description: The battery tester with regenerative energy recovery in the BT 20000 Triple series from EA Elektro-Automatik are two quadrant devices with 3 channels which can perform the function of a charger as well as that of an electronic load (discharging). In discharging mode the device is regenerative and feeds the energy back into the local grid with an efficiency of up to over 96%. The BT 20000 triple series includes three phase units which, together with the wide input range, allows use with practically all global mains voltages. The DC voltages and currents are determined by the application and the spectrum ranges from 0 - 10 V to 0 - 920 V and from 0 - 40 A up to 0 - 600 A per channel in a single device. The DC supply operates as a flexible output stage with a constant power characteristic (autoranging) with a wide voltage and current range. To achieve higher power and current all units are equipped with a Master-Slave-Bus. This enables up to 3 parallel connected channels to be combined into one channel which can provide up to 30 kW and 1800 A. Such a combination works as a single channel and can use as a battery tester with higher power and current. In this way as an example a user can construct a battery cell tester with 3 channels of 0 - 10 V and 0 -600 A or one channel with 0 - 10 V and 0 - 1800 A. Furthermore typical battery tester alarm and warning management, various industrial interfaces, software solutions and many more functions are available. |
|
| Download datasheet |
EA-BT 20080-340 Triple 4U
| Manufacturer | EA - Elektro-Automatik |
| Power | 10000.00 W |
| Package | 4U Rack mount |
| Available output range (V) | 0-80 |
EA-BT 20080-340 Triple 4U
| Manufacturer |
|
| Power | 10000.00 W |
| Package | 4U Rack mount |
| Input voltage | 380-480Vac ±10% 3-phase |
| Efficiency | 0.95 |
| Available output range (V) | 0-80 |
| Output current (A) | 340 A per channel |
| Max output current | 0.00 |
| Electronic load input rating power | 0.00 |
| Warranty | 2 years |
| Dimensions | 19“ x 4U x 668 mm |
| Weight | 50 kg (56 kg with water cooling) |
| Water-cooled option | Yes |
| Interface options | USB, Ethernet 1Gbit/s, EtherCAT, CAN FD, Master-Slave-Bus, Share-Bus, USB Host on Front panel, 3 digital inputs, 3 relay contacts, 3 temperature sensor inputs |
Features:
|
|
| Description: The battery tester with regenerative energy recovery in the BT 20000 Triple series from EA Elektro-Automatik are two quadrant devices with 3 channels which can perform the function of a charger as well as that of an electronic load (discharging). In discharging mode the device is regenerative and feeds the energy back into the local grid with an efficiency of up to over 96%. The BT 20000 triple series includes three phase units which, together with the wide input range, allows use with practically all global mains voltages. The DC voltages and currents are determined by the application and the spectrum ranges from 0 - 10 V to 0 - 920 V and from 0 - 40 A up to 0 - 600 A per channel in a single device. The DC supply operates as a flexible output stage with a constant power characteristic (autoranging) with a wide voltage and current range. To achieve higher power and current all units are equipped with a Master-Slave-Bus. This enables up to 3 parallel connected channels to be combined into one channel which can provide up to 30 kW and 1800 A. Such a combination works as a single channel and can use as a battery tester with higher power and current. In this way as an example a user can construct a battery cell tester with 3 channels of 0 - 10 V and 0 -600 A or one channel with 0 - 10 V and 0 - 1800 A. Furthermore typical battery tester alarm and warning management, various industrial interfaces, software solutions and many more functions are available. |
|
| Download datasheet |
EA-BT 20200-140 Triple 4U
| Manufacturer | EA - Elektro-Automatik |
| Power | 10000.00 W |
| Package | 4U Rack mount |
| Available output range (V) | 0-200 |
EA-BT 20200-140 Triple 4U
| Manufacturer |
|
| Power | 10000.00 W |
| Package | 4U Rack mount |
| Input voltage | 380-480Vac ±10% 3-phase |
| Efficiency | 0.95 |
| Available output range (V) | 0-200 |
| Output current (A) | 140 A per channel |
| Max output current | 0.00 |
| Electronic load input rating power | 0.00 |
| Warranty | 2 years |
| Dimensions | 19“ x 4U x 668 mm |
| Weight | 50 kg (56 kg with water cooling) |
| Water-cooled option | Yes |
| Interface options | USB, Ethernet 1Gbit/s, EtherCAT, CAN FD, Master-Slave-Bus, Share-Bus, USB Host on Front panel, 3 digital inputs, 3 relay contacts, 3 temperature sensor inputs |
Features:
|
|
| Description: The battery tester with regenerative energy recovery in the BT 20000 Triple series from EA Elektro-Automatik are two quadrant devices with 3 channels which can perform the function of a charger as well as that of an electronic load (discharging). In discharging mode the device is regenerative and feeds the energy back into the local grid with an efficiency of up to over 96%. The BT 20000 triple series includes three phase units which, together with the wide input range, allows use with practically all global mains voltages. The DC voltages and currents are determined by the application and the spectrum ranges from 0 - 10 V to 0 - 920 V and from 0 - 40 A up to 0 - 600 A per channel in a single device. The DC supply operates as a flexible output stage with a constant power characteristic (autoranging) with a wide voltage and current range. To achieve higher power and current all units are equipped with a Master-Slave-Bus. This enables up to 3 parallel connected channels to be combined into one channel which can provide up to 30 kW and 1800 A. Such a combination works as a single channel and can use as a battery tester with higher power and current. In this way as an example a user can construct a battery cell tester with 3 channels of 0 - 10 V and 0 -600 A or one channel with 0 - 10 V and 0 - 1800 A. Furthermore typical battery tester alarm and warning management, various industrial interfaces, software solutions and many more functions are available. |
|
| Download datasheet |
EA-BT 20360-80 Triple 4U
| Manufacturer | EA - Elektro-Automatik |
| Power | 10000.00 W |
| Package | 4U Rack mount |
| Available output range (V) | 0-360 |
EA-BT 20360-80 Triple 4U
| Manufacturer |
|
| Power | 10000.00 W |
| Package | 4U Rack mount |
| Input voltage | 380-480Vac ±10% 3-phase |
| Efficiency | 0.96 |
| Available output range (V) | 0-360 |
| Output current (A) | 80 A per channel |
| Max output current | 0.00 |
| Electronic load input rating power | 0.00 |
| Warranty | 2 years |
| Dimensions | 19“ x 4U x 668 mm |
| Weight | 50 kg (56 kg with water cooling) |
| Water-cooled option | Yes |
| Interface options | USB, Ethernet 1Gbit/s, EtherCAT, CAN FD, Master-Slave-Bus, Share-Bus, USB Host on Front panel, 3 digital inputs, 3 relay contacts, 3 temperature sensor inputs |
Features:
|
|
| Description: The battery tester with regenerative energy recovery in the BT 20000 Triple series from EA Elektro-Automatik are two quadrant devices with 3 channels which can perform the function of a charger as well as that of an electronic load (discharging). In discharging mode the device is regenerative and feeds the energy back into the local grid with an efficiency of up to over 96%. The BT 20000 triple series includes three phase units which, together with the wide input range, allows use with practically all global mains voltages. The DC voltages and currents are determined by the application and the spectrum ranges from 0 - 10 V to 0 - 920 V and from 0 - 40 A up to 0 - 600 A per channel in a single device. The DC supply operates as a flexible output stage with a constant power characteristic (autoranging) with a wide voltage and current range. To achieve higher power and current all units are equipped with a Master-Slave-Bus. This enables up to 3 parallel connected channels to be combined into one channel which can provide up to 30 kW and 1800 A. Such a combination works as a single channel and can use as a battery tester with higher power and current. In this way as an example a user can construct a battery cell tester with 3 channels of 0 - 10 V and 0 -600 A or one channel with 0 - 10 V and 0 - 1800 A. Furthermore typical battery tester alarm and warning management, various industrial interfaces, software solutions and many more functions are available. |
|
| Download datasheet |
EA-BT 20920-40 Triple 4U
| Manufacturer | EA - Elektro-Automatik |
| Power | 10000.00 W |
| Package | 4U Rack mount |
| Available output range (V) | 0-920 |
EA-BT 20920-40 Triple 4U
| Manufacturer |
|
| Power | 10000.00 W |
| Package | 4U Rack mount |
| Input voltage | 380-480Vac ±10% 3-phase |
| Efficiency | 0.97 |
| Available output range (V) | 0-920 |
| Output current (A) | 40 A per channel |
| Max output current | 0.00 |
| Electronic load input rating power | 0.00 |
| Warranty | 2 years |
| Dimensions | 19“ x 4U x 668 mm |
| Weight | 50 kg (56 kg with water cooling) |
| Water-cooled option | Yes |
| Interface options | USB, Ethernet 1Gbit/s, EtherCAT, CAN FD, Master-Slave-Bus, Share-Bus, USB Host on Front panel, 3 digital inputs, 3 relay contacts, 3 temperature sensor inputs |
Features:
|
|
| Description: The battery tester with regenerative energy recovery in the BT 20000 Triple series from EA Elektro-Automatik are two quadrant devices with 3 channels which can perform the function of a charger as well as that of an electronic load (discharging). In discharging mode the device is regenerative and feeds the energy back into the local grid with an efficiency of up to over 96%. The BT 20000 triple series includes three phase units which, together with the wide input range, allows use with practically all global mains voltages. The DC voltages and currents are determined by the application and the spectrum ranges from 0 - 10 V to 0 - 920 V and from 0 - 40 A up to 0 - 600 A per channel in a single device. The DC supply operates as a flexible output stage with a constant power characteristic (autoranging) with a wide voltage and current range. To achieve higher power and current all units are equipped with a Master-Slave-Bus. This enables up to 3 parallel connected channels to be combined into one channel which can provide up to 30 kW and 1800 A. Such a combination works as a single channel and can use as a battery tester with higher power and current. In this way as an example a user can construct a battery cell tester with 3 channels of 0 - 10 V and 0 -600 A or one channel with 0 - 10 V and 0 - 1800 A. Furthermore typical battery tester alarm and warning management, various industrial interfaces, software solutions and many more functions are available. |
|
| Download datasheet |
EA-BT 22000-20 3U
| Manufacturer | EA - Elektro-Automatik |
| Power | 15000.00 W |
| Package | 3U |
| Available output range (V) | 0-2000 |
EA-BT 22000-20 3U
| Manufacturer |
|
| Power | 15000.00 W |
| Package | 3U |
| Input voltage | 208-480Vac ±10% 3-phase |
| Efficiency | 0.00 |
| Available output range (V) | 0-2000 |
| Output current (A) | 0-20 |
| Max output current | 0.00 |
| Electronic load input rating power | 0.00 |
| Dimensions | 483x117x668mm |
| Weight | 50 |
| Water-cooled option | No |
Features:
|
|
| Description: The battery tester with regenerative energy recovery in the BT 20000 series from EA Elektro-Automatik are two quadrant devices which can perform the function of a charger as well as that of an electric load (discharging). In discharging mode the device is regenerative and feeds the energy back into the local grid with an efficiency of up to over 96%. The BT 20000 series includes three phase units which, together with the wide input range, allows use with practically all global mains voltages. The DC voltages and currents are determined by the application and the spectrum ranges from 0-10 V to 0-2000 V and from 0-40 A up to 0-1000 A in a single device. The DC supply operates as a flexible output stage with a constant power characteristic (autoranging) with a wide voltage and current range. To achieve higher power and currents all units are equipped with a Master-Slave-Bus. This enables up to 64 parallel connected devices to be combined into one system which can provide up to 1920 kW and 64000 A. Such a system works as a single unit and can use as a battery module tester or as a battery pack tester. In this way as an example a user can construct a 150 kW battery pack tester system from five 30 kW 4U units BT 20000. Furthermore typically battery tester alarm and warning management, various industrial interfaces, software solutions and many more functions are available. |
|
| Download datasheet |
EA-BT 21500-30 3U
| Manufacturer | EA - Elektro-Automatik |
| Power | 15000.00 W |
| Package | 3U |
| Available output range (V) | 0-1500 |
EA-BT 21500-30 3U
| Manufacturer |
|
| Power | 15000.00 W |
| Package | 3U |
| Input voltage | 208-480Vac ±10% 3-phase |
| Efficiency | 0.00 |
| Available output range (V) | 0-1500 |
| Output current (A) | 0-30 |
| Max output current | 0.00 |
| Electronic load input rating power | 0.00 |
| Dimensions | 483x117x668mm |
| Weight | 50 |
| Water-cooled option | No |
Features:
|
|
| Description: The battery tester with regenerative energy recovery in the BT 20000 series from EA Elektro-Automatik are two quadrant devices which can perform the function of a charger as well as that of an electric load (discharging). In discharging mode the device is regenerative and feeds the energy back into the local grid with an efficiency of up to over 96%. The BT 20000 series includes three phase units which, together with the wide input range, allows use with practically all global mains voltages. The DC voltages and currents are determined by the application and the spectrum ranges from 0-10 V to 0-2000 V and from 0-40 A up to 0-1000 A in a single device. The DC supply operates as a flexible output stage with a constant power characteristic (autoranging) with a wide voltage and current range. To achieve higher power and currents all units are equipped with a Master-Slave-Bus. This enables up to 64 parallel connected devices to be combined into one system which can provide up to 1920 kW and 64000 A. Such a system works as a single unit and can use as a battery module tester or as a battery pack tester. In this way as an example a user can construct a 150 kW battery pack tester system from five 30 kW 4U units BT 20000. Furthermore typically battery tester alarm and warning management, various industrial interfaces, software solutions and many more functions are available. |
|
| Download datasheet |
EA-BT 21000-40 3U
| Manufacturer | EA - Elektro-Automatik |
| Power | 15000.00 W |
| Package | 3U |
| Available output range (V) | 0-1000 |
EA-BT 21000-40 3U
| Manufacturer |
|
| Power | 15000.00 W |
| Package | 3U |
| Input voltage | 208-480Vac ±10% 3-phase |
| Efficiency | 0.00 |
| Available output range (V) | 0-1000 |
| Output current (A) | 0-40 |
| Max output current | 0.00 |
| Electronic load input rating power | 0.00 |
| Dimensions | 483x117x668mm |
| Weight | 50 |
| Water-cooled option | No |
Features:
|
|
| Description: The battery tester with regenerative energy recovery in the BT 20000 series from EA Elektro-Automatik are two quadrant devices which can perform the function of a charger as well as that of an electric load (discharging). In discharging mode the device is regenerative and feeds the energy back into the local grid with an efficiency of up to over 96%. The BT 20000 series includes three phase units which, together with the wide input range, allows use with practically all global mains voltages. The DC voltages and currents are determined by the application and the spectrum ranges from 0-10 V to 0-2000 V and from 0-40 A up to 0-1000 A in a single device. The DC supply operates as a flexible output stage with a constant power characteristic (autoranging) with a wide voltage and current range. To achieve higher power and currents all units are equipped with a Master-Slave-Bus. This enables up to 64 parallel connected devices to be combined into one system which can provide up to 1920 kW and 64000 A. Such a system works as a single unit and can use as a battery module tester or as a battery pack tester. In this way as an example a user can construct a 150 kW battery pack tester system from five 30 kW 4U units BT 20000. Furthermore typically battery tester alarm and warning management, various industrial interfaces, software solutions and many more functions are available. |
|
| Download datasheet |
EA-BT 20920-60 3U
| Manufacturer | EA - Elektro-Automatik |
| Power | 15000.00 W |
| Package | 3U |
| Available output range (V) | 0-920 |
EA-BT 20920-60 3U
| Manufacturer |
|
| Power | 15000.00 W |
| Package | 3U |
| Input voltage | 208-480Vac ±10% 3-phase |
| Efficiency | 0.00 |
| Available output range (V) | 0-920 |
| Output current (A) | 0-60 |
| Max output current | 0.00 |
| Electronic load input rating power | 0.00 |
| Dimensions | 483x117x668mm |
| Weight | 50 |
| Water-cooled option | No |
Features:
|
|
| Description: The battery tester with regenerative energy recovery in the BT 20000 series from EA Elektro-Automatik are two quadrant devices which can perform the function of a charger as well as that of an electric load (discharging). In discharging mode the device is regenerative and feeds the energy back into the local grid with an efficiency of up to over 96%. The BT 20000 series includes three phase units which, together with the wide input range, allows use with practically all global mains voltages. The DC voltages and currents are determined by the application and the spectrum ranges from 0-10 V to 0-2000 V and from 0-40 A up to 0-1000 A in a single device. The DC supply operates as a flexible output stage with a constant power characteristic (autoranging) with a wide voltage and current range. To achieve higher power and currents all units are equipped with a Master-Slave-Bus. This enables up to 64 parallel connected devices to be combined into one system which can provide up to 1920 kW and 64000 A. Such a system works as a single unit and can use as a battery module tester or as a battery pack tester. In this way as an example a user can construct a 150 kW battery pack tester system from five 30 kW 4U units BT 20000. Furthermore typically battery tester alarm and warning management, various industrial interfaces, software solutions and many more functions are available. |
|
| Download datasheet |
EA-BT 20500-90 3U
| Manufacturer | EA - Elektro-Automatik |
| Power | 15000.00 W |
| Package | 3U |
| Available output range (V) | 0-500 |
EA-BT 20500-90 3U
| Manufacturer |
|
| Power | 15000.00 W |
| Package | 3U |
| Input voltage | 208-480Vac ±10% 3-phase |
| Efficiency | 0.00 |
| Available output range (V) | 0-500 |
| Output current (A) | 0-90 |
| Max output current | 0.00 |
| Electronic load input rating power | 0.00 |
| Dimensions | 483x117x668mm |
| Weight | 50 |
| Water-cooled option | No |
Features:
|
|
| Description: The battery tester with regenerative energy recovery in the BT 20000 series from EA Elektro-Automatik are two quadrant devices which can perform the function of a charger as well as that of an electric load (discharging). In discharging mode the device is regenerative and feeds the energy back into the local grid with an efficiency of up to over 96%. The BT 20000 series includes three phase units which, together with the wide input range, allows use with practically all global mains voltages. The DC voltages and currents are determined by the application and the spectrum ranges from 0-10 V to 0-2000 V and from 0-40 A up to 0-1000 A in a single device. The DC supply operates as a flexible output stage with a constant power characteristic (autoranging) with a wide voltage and current range. To achieve higher power and currents all units are equipped with a Master-Slave-Bus. This enables up to 64 parallel connected devices to be combined into one system which can provide up to 1920 kW and 64000 A. Such a system works as a single unit and can use as a battery module tester or as a battery pack tester. In this way as an example a user can construct a 150 kW battery pack tester system from five 30 kW 4U units BT 20000. Furthermore typically battery tester alarm and warning management, various industrial interfaces, software solutions and many more functions are available. |
|
| Download datasheet |
EA-BT 20360-120 3U
| Manufacturer | EA - Elektro-Automatik |
| Power | 15000.00 W |
| Package | 3U |
| Available output range (V) | 0-360 |
EA-BT 20360-120 3U
| Manufacturer |
|
| Power | 15000.00 W |
| Package | 3U |
| Input voltage | 208-480Vac ±10% 3-phase |
| Efficiency | 0.00 |
| Available output range (V) | 0-360 |
| Output current (A) | 0-120 |
| Max output current | 0.00 |
| Electronic load input rating power | 0.00 |
| Dimensions | 483x117x668mm |
| Weight | 50 |
| Water-cooled option | No |
Features:
|
|
| Description: The battery tester with regenerative energy recovery in the BT 20000 series from EA Elektro-Automatik are two quadrant devices which can perform the function of a charger as well as that of an electric load (discharging). In discharging mode the device is regenerative and feeds the energy back into the local grid with an efficiency of up to over 96%. The BT 20000 series includes three phase units which, together with the wide input range, allows use with practically all global mains voltages. The DC voltages and currents are determined by the application and the spectrum ranges from 0-10 V to 0-2000 V and from 0-40 A up to 0-1000 A in a single device. The DC supply operates as a flexible output stage with a constant power characteristic (autoranging) with a wide voltage and current range. To achieve higher power and currents all units are equipped with a Master-Slave-Bus. This enables up to 64 parallel connected devices to be combined into one system which can provide up to 1920 kW and 64000 A. Such a system works as a single unit and can use as a battery module tester or as a battery pack tester. In this way as an example a user can construct a 150 kW battery pack tester system from five 30 kW 4U units BT 20000. Furthermore typically battery tester alarm and warning management, various industrial interfaces, software solutions and many more functions are available. |
|
| Download datasheet |
EA-BT 20200-210 3U
| Manufacturer | EA - Elektro-Automatik |
| Power | 15000.00 W |
| Package | 3U |
| Available output range (V) | 0-200 |
EA-BT 20200-210 3U
| Manufacturer |
|
| Power | 15000.00 W |
| Package | 3U |
| Input voltage | 208-480Vac ±10% 3-phase |
| Efficiency | 0.00 |
| Available output range (V) | 0-200 |
| Output current (A) | 0-210 |
| Max output current | 0.00 |
| Electronic load input rating power | 0.00 |
| Dimensions | 483x117x668mm |
| Weight | 50 |
| Water-cooled option | No |
Features:
|
|
| Description: The battery tester with regenerative energy recovery in the BT 20000 series from EA Elektro-Automatik are two quadrant devices which can perform the function of a charger as well as that of an electric load (discharging). In discharging mode the device is regenerative and feeds the energy back into the local grid with an efficiency of up to over 96%. The BT 20000 series includes three phase units which, together with the wide input range, allows use with practically all global mains voltages. The DC voltages and currents are determined by the application and the spectrum ranges from 0-10 V to 0-2000 V and from 0-40 A up to 0-1000 A in a single device. The DC supply operates as a flexible output stage with a constant power characteristic (autoranging) with a wide voltage and current range. To achieve higher power and currents all units are equipped with a Master-Slave-Bus. This enables up to 64 parallel connected devices to be combined into one system which can provide up to 1920 kW and 64000 A. Such a system works as a single unit and can use as a battery module tester or as a battery pack tester. In this way as an example a user can construct a 150 kW battery pack tester system from five 30 kW 4U units BT 20000. Furthermore typically battery tester alarm and warning management, various industrial interfaces, software solutions and many more functions are available. |
|
| Download datasheet |
EA-BT 20080-500 3U
| Manufacturer | EA - Elektro-Automatik |
| Power | 15000.00 W |
| Package | 3U |
| Available output range (V) | 0-80 |
EA-BT 20080-500 3U
| Manufacturer |
|
| Power | 15000.00 W |
| Package | 3U |
| Input voltage | 208-480Vac ±10% 3-phase |
| Efficiency | 0.00 |
| Available output range (V) | 0-80 |
| Output current (A) | 0-500 |
| Max output current | 0.00 |
| Electronic load input rating power | 0.00 |
| Dimensions | 483x117x668mm |
| Weight | 50 |
| Water-cooled option | No |
Features:
|
|
| Description: The battery tester with regenerative energy recovery in the BT 20000 series from EA Elektro-Automatik are two quadrant devices which can perform the function of a charger as well as that of an electric load (discharging). In discharging mode the device is regenerative and feeds the energy back into the local grid with an efficiency of up to over 96%. The BT 20000 series includes three phase units which, together with the wide input range, allows use with practically all global mains voltages. The DC voltages and currents are determined by the application and the spectrum ranges from 0-10 V to 0-2000 V and from 0-40 A up to 0-1000 A in a single device. The DC supply operates as a flexible output stage with a constant power characteristic (autoranging) with a wide voltage and current range. To achieve higher power and currents all units are equipped with a Master-Slave-Bus. This enables up to 64 parallel connected devices to be combined into one system which can provide up to 1920 kW and 64000 A. Such a system works as a single unit and can use as a battery module tester or as a battery pack tester. In this way as an example a user can construct a 150 kW battery pack tester system from five 30 kW 4U units BT 20000. Furthermore typically battery tester alarm and warning management, various industrial interfaces, software solutions and many more functions are available. |
|
| Download datasheet |
EA-BT 20060-500 3U
| Manufacturer | EA - Elektro-Automatik |
| Power | 15000.00 W |
| Package | 3U |
| Available output range (V) | 0-60 |
EA-BT 20060-500 3U
| Manufacturer |
|
| Power | 15000.00 W |
| Package | 3U |
| Input voltage | 208-480Vac ±10% 3-phase |
| Efficiency | 0.00 |
| Available output range (V) | 0-60 |
| Output current (A) | 0-500 |
| Max output current | 0.00 |
| Electronic load input rating power | 0.00 |
| Dimensions | 483x117x668mm |
| Weight | 50 |
| Water-cooled option | No |
Features:
|
|
| Description: The battery tester with regenerative energy recovery in the BT 20000 series from EA Elektro-Automatik are two quadrant devices which can perform the function of a charger as well as that of an electric load (discharging). In discharging mode the device is regenerative and feeds the energy back into the local grid with an efficiency of up to over 96%. The BT 20000 series includes three phase units which, together with the wide input range, allows use with practically all global mains voltages. The DC voltages and currents are determined by the application and the spectrum ranges from 0-10 V to 0-2000 V and from 0-40 A up to 0-1000 A in a single device. The DC supply operates as a flexible output stage with a constant power characteristic (autoranging) with a wide voltage and current range. To achieve higher power and currents all units are equipped with a Master-Slave-Bus. This enables up to 64 parallel connected devices to be combined into one system which can provide up to 1920 kW and 64000 A. Such a system works as a single unit and can use as a battery module tester or as a battery pack tester. In this way as an example a user can construct a 150 kW battery pack tester system from five 30 kW 4U units BT 20000. Furthermore typically battery tester alarm and warning management, various industrial interfaces, software solutions and many more functions are available. |
|
| Download datasheet |
EA-PSB 20920-20 Triple
| Manufacturer | EA - Elektro-Automatik |
| Power | 15000.00 W |
| Package | Triple 3U |
| Available output range (V) | 0-920 |
EA-PSB 20920-20 Triple
| Manufacturer |
|
| Power | 15000.00 W |
| Package | Triple 3U |
| Input voltage | 208-480Vac ±10% 3-phase |
| Efficiency | 0.00 |
| Available output range (V) | 0-920 |
| Output current (A) | 0-20 |
| Max output current | 0.00 |
| Electronic load input rating power | 0.00 |
| Dimensions | 483x777x668mm |
| Weight | 32.8 |
| Water-cooled option | No |
Features:
|
|
| Description: Worldwide Input Voltage: 208 V - 480 V, +/- 10%, 3ph AC#Active Power Factor Correction, typical 0.99#Very high efficiency of over 96% in regenerative with energy recovery back to the grid#Voltages from 0 - 60 V up to 0 - 920 V#High performance with up to 5 kW per channel#Currents from 0 - 20 A up to 0 - 170 A per channel#3 Independent, fully isolated and bidirectional DC output/input stages, with autoranging#Galvanically isolated Share-Bus for parallel operation#3 Built-in high speed control interfaces with 1 ms communication speed |
|
| Download datasheet |
EA-PSB 20500-30 Triple
| Manufacturer | EA - Elektro-Automatik |
| Power | 15000.00 W |
| Package | Triple 3U |
| Available output range (V) | 0-500 |
EA-PSB 20500-30 Triple
| Manufacturer |
|
| Power | 15000.00 W |
| Package | Triple 3U |
| Input voltage | 208-480Vac ±10% 3-phase |
| Efficiency | 0.00 |
| Available output range (V) | 0-500 |
| Output current (A) | 0-30 |
| Max output current | 0.00 |
| Electronic load input rating power | 0.00 |
| Dimensions | 483x777x668mm |
| Weight | 32.8 |
| Water-cooled option | No |
Features:
|
|
| Description: Worldwide Input Voltage: 208 V - 480 V, +/- 10%, 3ph AC#Active Power Factor Correction, typical 0.99#Very high efficiency of over 96% in regenerative with energy recovery back to the grid#Voltages from 0 - 60 V up to 0 - 920 V#High performance with up to 5 kW per channel#Currents from 0 - 20 A up to 0 - 170 A per channel#3 Independent, fully isolated and bidirectional DC output/input stages, with autoranging#Galvanically isolated Share-Bus for parallel operation#3 Built-in high speed control interfaces with 1 ms communication speed |
|
| Download datasheet |
EA-PSB 20360-40 Triple
| Manufacturer | EA - Elektro-Automatik |
| Power | 15000.00 W |
| Package | Triple 3U |
| Available output range (V) | 0-360 |
EA-PSB 20360-40 Triple
| Manufacturer |
|
| Power | 15000.00 W |
| Package | Triple 3U |
| Input voltage | 208-480Vac ±10% 3-phase |
| Efficiency | 0.00 |
| Available output range (V) | 0-360 |
| Output current (A) | 0-40 |
| Max output current | 0.00 |
| Electronic load input rating power | 0.00 |
| Dimensions | 483x777x668mm |
| Weight | 32.8 |
| Water-cooled option | No |
Features:
|
|
| Description: Worldwide Input Voltage: 208 V - 480 V, +/- 10%, 3ph AC#Active Power Factor Correction, typical 0.99#Very high efficiency of over 96% in regenerative with energy recovery back to the grid#Voltages from 0 - 60 V up to 0 - 920 V#High performance with up to 5 kW per channel#Currents from 0 - 20 A up to 0 - 170 A per channel#3 Independent, fully isolated and bidirectional DC output/input stages, with autoranging#Galvanically isolated Share-Bus for parallel operation#3 Built-in high speed control interfaces with 1 ms communication speed |
|
| Download datasheet |
EA-PSB 20200-70 Triple
| Manufacturer | EA - Elektro-Automatik |
| Power | 15000.00 W |
| Package | Triple 3U |
| Available output range (V) | 0-200 |
EA-PSB 20200-70 Triple
| Manufacturer |
|
| Power | 15000.00 W |
| Package | Triple 3U |
| Input voltage | 208-480Vac ±10% 3-phase |
| Efficiency | 0.00 |
| Available output range (V) | 0-200 |
| Output current (A) | 0-70 |
| Max output current | 0.00 |
| Electronic load input rating power | 0.00 |
| Dimensions | 483x777x668mm |
| Weight | 32.8 |
| Water-cooled option | No |
Features:
|
|
| Description: Worldwide Input Voltage: 208 V - 480 V, +/- 10%, 3ph AC#Active Power Factor Correction, typical 0.99#Very high efficiency of over 96% in regenerative with energy recovery back to the grid#Voltages from 0 - 60 V up to 0 - 920 V#High performance with up to 5 kW per channel#Currents from 0 - 20 A up to 0 - 170 A per channel#3 Independent, fully isolated and bidirectional DC output/input stages, with autoranging#Galvanically isolated Share-Bus for parallel operation#3 Built-in high speed control interfaces with 1 ms communication speed |
|
| Download datasheet |
EA-PSB 20080-170 Triple
| Manufacturer | EA - Elektro-Automatik |
| Power | 15000.00 W |
| Package | Triple 3U |
| Available output range (V) | 0-80 |
EA-PSB 20080-170 Triple
| Manufacturer |
|
| Power | 15000.00 W |
| Package | Triple 3U |
| Input voltage | 208-480Vac ±10% 3-phase |
| Efficiency | 0.00 |
| Available output range (V) | 0-80 |
| Output current (A) | 0-170 |
| Max output current | 0.00 |
| Electronic load input rating power | 0.00 |
| Dimensions | 483x777x668mm |
| Weight | 32.8 |
| Water-cooled option | No |
Features:
|
|
| Description: Worldwide Input Voltage: 208 V - 480 V, +/- 10%, 3ph AC#Active Power Factor Correction, typical 0.99#Very high efficiency of over 96% in regenerative with energy recovery back to the grid#Voltages from 0 - 60 V up to 0 - 920 V#High performance with up to 5 kW per channel#Currents from 0 - 20 A up to 0 - 170 A per channel#3 Independent, fully isolated and bidirectional DC output/input stages, with autoranging#Galvanically isolated Share-Bus for parallel operation#3 Built-in high speed control interfaces with 1 ms communication speed |
|
| Download datasheet |
EA-PSB 20060-170 Triple
| Manufacturer | EA - Elektro-Automatik |
| Power | 15000.00 W |
| Package | Triple 3U |
| Available output range (V) | 0-60 |
EA-PSB 20060-170 Triple
| Manufacturer |
|
| Power | 15000.00 W |
| Package | Triple 3U |
| Input voltage | 208-480Vac ±10% 3-phase |
| Efficiency | 0.00 |
| Available output range (V) | 0-60 |
| Output current (A) | 0-170 |
| Max output current | 0.00 |
| Electronic load input rating power | 0.00 |
| Dimensions | 483x777x668mm |
| Weight | 32.8 |
| Water-cooled option | No |
Features:
|
|
| Description: Worldwide Input Voltage: 208 V - 480 V, +/- 10%, 3ph AC#Active Power Factor Correction, typical 0.99#Very high efficiency of over 96% in regenerative with energy recovery back to the grid#Voltages from 0 - 60 V up to 0 - 920 V#High performance with up to 5 kW per channel#Currents from 0 - 20 A up to 0 - 170 A per channel#3 Independent, fully isolated and bidirectional DC output/input stages, with autoranging#Galvanically isolated Share-Bus for parallel operation#3 Built-in high speed control interfaces with 1 ms communication speed |
|
| Download datasheet |
EA-PSB 10060-510 3U
| Manufacturer | EA - Elektro-Automatik |
| Power | 15000.00 W |
| Package | 3U Rack mount |
| Available output range (V) | 0-60 |
EA-PSB 10060-510 3U
| Manufacturer |
|
| Power | 15000.00 W |
| Package | 3U Rack mount |
| Input voltage | 208-480Vac ±10% 3-phase |
| Efficiency | 0.00 |
| Available output range (V) | 0-60 |
| Output current (A) | 0-510 |
| Max output current | 0.00 |
| Electronic load input rating power | 0.00 |
| Warranty | 2 years |
| Water-cooled option | No |
Features:
|
|
| Description: The bidirectional DC laboratory power supplies in the PSB 10000 series from EA Elektro-Automatik are two quadrant devices which can perform the function of a power supply as well as that of an electronic load. In load mode the device is regenerative and feeds the energy back into the local grid with an efficiency up to over 96%. The PSB 10000 series includes single and three phase units, which, together with the wide input range, allows use with practically all global mains voltages. The DC voltage and current are directed by the application and the spectrum ranges from 0 - 10 V to 0 - 2000 V and from 0 - 6 A up to 0 - 1000 A in a single device. The DC supply operates as a flexible output stage with a constant power characteristic (autoranging), and a wide voltage, current and power range. To achieve higher power and current all units are equipped with a master-slave bus. This enables up to 64 parallel connected devices to be combined into one system which can provide up to 1920 W and 64000 A. Such a system works as a single unit and can use different power classes, only the voltage class must remain constant. In this way a user can construct a 75 kW system from two 30 kW and one 15 kW devices from the PSB 10000 range. Furthermore, typical laboratory functionality is provided. This includes an extensive function generator, alarm and warning management, assorted interfaces and ports, software solutions and many more functions. |
|
| Download datasheet |
EA-PSB 10080-510 3U
| Manufacturer | EA - Elektro-Automatik |
| Power | 15000.00 W |
| Package | 3U Rack mount |
| Available output range (V) | 0-80 |
EA-PSB 10080-510 3U
| Manufacturer |
|
| Power | 15000.00 W |
| Package | 3U Rack mount |
| Input voltage | 208-480Vac ±10% 3-phase |
| Efficiency | 0.00 |
| Available output range (V) | 0-80 |
| Output current (A) | 0-510 |
| Max output current | 0.00 |
| Electronic load input rating power | 0.00 |
| Warranty | 2 years |
| Water-cooled option | No |
Features:
|
|
| Description: The bidirectional DC laboratory power supplies in the PSB 10000 series from EA Elektro-Automatik are two quadrant devices which can perform the function of a power supply as well as that of an electronic load. In load mode the device is regenerative and feeds the energy back into the local grid with an efficiency up to over 96%. The PSB 10000 series includes single and three phase units, which, together with the wide input range, allows use with practically all global mains voltages. The DC voltage and current are directed by the application and the spectrum ranges from 0 - 10 V to 0 - 2000 V and from 0 - 6 A up to 0 - 1000 A in a single device. The DC supply operates as a flexible output stage with a constant power characteristic (autoranging), and a wide voltage, current and power range. To achieve higher power and current all units are equipped with a master-slave bus. This enables up to 64 parallel connected devices to be combined into one system which can provide up to 1920 W and 64000 A. Such a system works as a single unit and can use different power classes, only the voltage class must remain constant. In this way a user can construct a 75 kW system from two 30 kW and one 15 kW devices from the PSB 10000 range. Furthermore, typical laboratory functionality is provided. This includes an extensive function generator, alarm and warning management, assorted interfaces and ports, software solutions and many more functions. |
|
| Download datasheet |
EA-PSB 10200-210 3U
| Manufacturer | EA - Elektro-Automatik |
| Power | 15000.00 W |
| Package | 3U Rack mount |
| Available output range (V) | 0-200 |
EA-PSB 10200-210 3U
| Manufacturer |
|
| Power | 15000.00 W |
| Package | 3U Rack mount |
| Input voltage | 208-480Vac ±10% 3-phase |
| Efficiency | 0.00 |
| Available output range (V) | 0-200 |
| Output current (A) | 0-210 |
| Max output current | 0.00 |
| Electronic load input rating power | 0.00 |
| Warranty | 2 years |
| Water-cooled option | No |
Features:
|
|
| Description: The bidirectional DC laboratory power supplies in the PSB 10000 series from EA Elektro-Automatik are two quadrant devices which can perform the function of a power supply as well as that of an electronic load. In load mode the device is regenerative and feeds the energy back into the local grid with an efficiency up to over 96%. The PSB 10000 series includes single and three phase units, which, together with the wide input range, allows use with practically all global mains voltages. The DC voltage and current are directed by the application and the spectrum ranges from 0 - 10 V to 0 - 2000 V and from 0 - 6 A up to 0 - 1000 A in a single device. The DC supply operates as a flexible output stage with a constant power characteristic (autoranging), and a wide voltage, current and power range. To achieve higher power and current all units are equipped with a master-slave bus. This enables up to 64 parallel connected devices to be combined into one system which can provide up to 1920 W and 64000 A. Such a system works as a single unit and can use different power classes, only the voltage class must remain constant. In this way a user can construct a 75 kW system from two 30 kW and one 15 kW devices from the PSB 10000 range. Furthermore, typical laboratory functionality is provided. This includes an extensive function generator, alarm and warning management, assorted interfaces and ports, software solutions and many more functions. |
|
| Download datasheet |
EA-PSB 10360-120 3U
| Manufacturer | EA - Elektro-Automatik |
| Power | 15000.00 W |
| Package | 3U Rack mount |
| Available output range (V) | 0-360 |
EA-PSB 10360-120 3U
| Manufacturer |
|
| Power | 15000.00 W |
| Package | 3U Rack mount |
| Input voltage | 208-480Vac ±10% 3-phase |
| Efficiency | 0.00 |
| Available output range (V) | 0-360 |
| Output current (A) | 0-120 |
| Max output current | 0.00 |
| Electronic load input rating power | 0.00 |
| Warranty | 2 years |
| Water-cooled option | No |
Features:
|
|
| Description: The bidirectional DC laboratory power supplies in the PSB 10000 series from EA Elektro-Automatik are two quadrant devices which can perform the function of a power supply as well as that of an electronic load. In load mode the device is regenerative and feeds the energy back into the local grid with an efficiency up to over 96%. The PSB 10000 series includes single and three phase units, which, together with the wide input range, allows use with practically all global mains voltages. The DC voltage and current are directed by the application and the spectrum ranges from 0 - 10 V to 0 - 2000 V and from 0 - 6 A up to 0 - 1000 A in a single device. The DC supply operates as a flexible output stage with a constant power characteristic (autoranging), and a wide voltage, current and power range. To achieve higher power and current all units are equipped with a master-slave bus. This enables up to 64 parallel connected devices to be combined into one system which can provide up to 1920 W and 64000 A. Such a system works as a single unit and can use different power classes, only the voltage class must remain constant. In this way a user can construct a 75 kW system from two 30 kW and one 15 kW devices from the PSB 10000 range. Furthermore, typical laboratory functionality is provided. This includes an extensive function generator, alarm and warning management, assorted interfaces and ports, software solutions and many more functions. |
|
| Download datasheet |
EA-PSB 10500-90 3U
| Manufacturer | EA - Elektro-Automatik |
| Power | 15000.00 W |
| Package | 3U Rack mount |
| Available output range (V) | 0-500 |
EA-PSB 10500-90 3U
| Manufacturer |
|
| Power | 15000.00 W |
| Package | 3U Rack mount |
| Input voltage | 208-480Vac ±10% 3-phase |
| Efficiency | 0.00 |
| Available output range (V) | 0-500 |
| Output current (A) | 0-90 |
| Max output current | 0.00 |
| Electronic load input rating power | 0.00 |
| Warranty | 2 years |
| Water-cooled option | No |
Features:
|
|
| Description: The bidirectional DC laboratory power supplies in the PSB 10000 series from EA Elektro-Automatik are two quadrant devices which can perform the function of a power supply as well as that of an electronic load. In load mode the device is regenerative and feeds the energy back into the local grid with an efficiency up to over 96%. The PSB 10000 series includes single and three phase units, which, together with the wide input range, allows use with practically all global mains voltages. The DC voltage and current are directed by the application and the spectrum ranges from 0 - 10 V to 0 - 2000 V and from 0 - 6 A up to 0 - 1000 A in a single device. The DC supply operates as a flexible output stage with a constant power characteristic (autoranging), and a wide voltage, current and power range. To achieve higher power and current all units are equipped with a master-slave bus. This enables up to 64 parallel connected devices to be combined into one system which can provide up to 1920 W and 64000 A. Such a system works as a single unit and can use different power classes, only the voltage class must remain constant. In this way a user can construct a 75 kW system from two 30 kW and one 15 kW devices from the PSB 10000 range. Furthermore, typical laboratory functionality is provided. This includes an extensive function generator, alarm and warning management, assorted interfaces and ports, software solutions and many more functions. |
|
| Download datasheet |
EA-PSB 10750-60 3U
| Manufacturer | EA - Elektro-Automatik |
| Power | 15000.00 W |
| Package | 3U Rack mount |
| Available output range (V) | 0-750 |
EA-PSB 10750-60 3U
| Manufacturer |
|
| Power | 15000.00 W |
| Package | 3U Rack mount |
| Input voltage | 208-480Vac ±10% 3-phase |
| Efficiency | 0.00 |
| Available output range (V) | 0-750 |
| Output current (A) | 0-60 |
| Max output current | 0.00 |
| Electronic load input rating power | 0.00 |
| Warranty | 2 years |
| Water-cooled option | No |
Features:
|
|
| Description: The bidirectional DC laboratory power supplies in the PSB 10000 series from EA Elektro-Automatik are two quadrant devices which can perform the function of a power supply as well as that of an electronic load. In load mode the device is regenerative and feeds the energy back into the local grid with an efficiency up to over 96%. The PSB 10000 series includes single and three phase units, which, together with the wide input range, allows use with practically all global mains voltages. The DC voltage and current are directed by the application and the spectrum ranges from 0 - 10 V to 0 - 2000 V and from 0 - 6 A up to 0 - 1000 A in a single device. The DC supply operates as a flexible output stage with a constant power characteristic (autoranging), and a wide voltage, current and power range. To achieve higher power and current all units are equipped with a master-slave bus. This enables up to 64 parallel connected devices to be combined into one system which can provide up to 1920 W and 64000 A. Such a system works as a single unit and can use different power classes, only the voltage class must remain constant. In this way a user can construct a 75 kW system from two 30 kW and one 15 kW devices from the PSB 10000 range. Furthermore, typical laboratory functionality is provided. This includes an extensive function generator, alarm and warning management, assorted interfaces and ports, software solutions and many more functions. |
|
| Download datasheet |
EA-PSB 11000-40 3U
| Manufacturer | EA - Elektro-Automatik |
| Power | 15000.00 W |
| Package | 3U Rack mount |
| Available output range (V) | 0-1000 |
EA-PSB 11000-40 3U
| Manufacturer |
|
| Power | 15000.00 W |
| Package | 3U Rack mount |
| Input voltage | 208-480Vac ±10% 3-phase |
| Efficiency | 0.00 |
| Available output range (V) | 0-1000 |
| Output current (A) | 0-40 |
| Max output current | 0.00 |
| Electronic load input rating power | 0.00 |
| Warranty | 2 years |
| Water-cooled option | No |
Features:
|
|
| Description: The bidirectional DC laboratory power supplies in the PSB 10000 series from EA Elektro-Automatik are two quadrant devices which can perform the function of a power supply as well as that of an electronic load. In load mode the device is regenerative and feeds the energy back into the local grid with an efficiency up to over 96%. The PSB 10000 series includes single and three phase units, which, together with the wide input range, allows use with practically all global mains voltages. The DC voltage and current are directed by the application and the spectrum ranges from 0 - 10 V to 0 - 2000 V and from 0 - 6 A up to 0 - 1000 A in a single device. The DC supply operates as a flexible output stage with a constant power characteristic (autoranging), and a wide voltage, current and power range. To achieve higher power and current all units are equipped with a master-slave bus. This enables up to 64 parallel connected devices to be combined into one system which can provide up to 1920 W and 64000 A. Such a system works as a single unit and can use different power classes, only the voltage class must remain constant. In this way a user can construct a 75 kW system from two 30 kW and one 15 kW devices from the PSB 10000 range. Furthermore, typical laboratory functionality is provided. This includes an extensive function generator, alarm and warning management, assorted interfaces and ports, software solutions and many more functions. |
|
| Download datasheet |
EA-PSB 11500-30 3U
| Manufacturer | EA - Elektro-Automatik |
| Power | 15000.00 W |
| Package | 3U Rack mount |
| Available output range (V) | 0-1500 |
EA-PSB 11500-30 3U
| Manufacturer |
|
| Power | 15000.00 W |
| Package | 3U Rack mount |
| Input voltage | 208-480Vac ±10% 3-phase |
| Efficiency | 0.00 |
| Available output range (V) | 0-1500 |
| Output current (A) | 0-30 |
| Max output current | 0.00 |
| Electronic load input rating power | 0.00 |
| Warranty | 2 years |
| Water-cooled option | No |
Features:
|
|
| Description: The bidirectional DC laboratory power supplies in the PSB 10000 series from EA Elektro-Automatik are two quadrant devices which can perform the function of a power supply as well as that of an electronic load. In load mode the device is regenerative and feeds the energy back into the local grid with an efficiency up to over 96%. The PSB 10000 series includes single and three phase units, which, together with the wide input range, allows use with practically all global mains voltages. The DC voltage and current are directed by the application and the spectrum ranges from 0 - 10 V to 0 - 2000 V and from 0 - 6 A up to 0 - 1000 A in a single device. The DC supply operates as a flexible output stage with a constant power characteristic (autoranging), and a wide voltage, current and power range. To achieve higher power and current all units are equipped with a master-slave bus. This enables up to 64 parallel connected devices to be combined into one system which can provide up to 1920 W and 64000 A. Such a system works as a single unit and can use different power classes, only the voltage class must remain constant. In this way a user can construct a 75 kW system from two 30 kW and one 15 kW devices from the PSB 10000 range. Furthermore, typical laboratory functionality is provided. This includes an extensive function generator, alarm and warning management, assorted interfaces and ports, software solutions and many more functions. |
|
| Download datasheet |
EA-PSB 12000-20 3U
| Manufacturer | EA - Elektro-Automatik |
| Power | 15000.00 W |
| Package | 3U Rack mount |
| Available output range (V) | 0-2000 |
EA-PSB 12000-20 3U
| Manufacturer |
|
| Power | 15000.00 W |
| Package | 3U Rack mount |
| Input voltage | 208-480Vac ±10% 3-phase |
| Efficiency | 0.00 |
| Available output range (V) | 0-2000 |
| Output current (A) | 0-20 |
| Max output current | 0.00 |
| Electronic load input rating power | 0.00 |
| Warranty | 2 years |
| Water-cooled option | No |
Features:
|
|
| Description: The bidirectional DC laboratory power supplies in the PSB 10000 series from EA Elektro-Automatik are two quadrant devices which can perform the function of a power supply as well as that of an electronic load. In load mode the device is regenerative and feeds the energy back into the local grid with an efficiency up to over 96%. The PSB 10000 series includes single and three phase units, which, together with the wide input range, allows use with practically all global mains voltages. The DC voltage and current are directed by the application and the spectrum ranges from 0 - 10 V to 0 - 2000 V and from 0 - 6 A up to 0 - 1000 A in a single device. The DC supply operates as a flexible output stage with a constant power characteristic (autoranging), and a wide voltage, current and power range. To achieve higher power and current all units are equipped with a master-slave bus. This enables up to 64 parallel connected devices to be combined into one system which can provide up to 1920 W and 64000 A. Such a system works as a single unit and can use different power classes, only the voltage class must remain constant. In this way a user can construct a 75 kW system from two 30 kW and one 15 kW devices from the PSB 10000 range. Furthermore, typical laboratory functionality is provided. This includes an extensive function generator, alarm and warning management, assorted interfaces and ports, software solutions and many more functions. |
|
| Download datasheet |
EA-PSB 20920-40 Triple
| Manufacturer | EA - Elektro-Automatik |
| Power | 30000.00 W |
| Package | Triple 4U |
| Available output range (V) | 0-920 |
EA-PSB 20920-40 Triple
| Manufacturer |
|
| Power | 30000.00 W |
| Package | Triple 4U |
| Input voltage | 208-480Vac ±10% 3-phase |
| Efficiency | 0.00 |
| Available output range (V) | 0-920 |
| Output current (A) | 0-40 |
| Max output current | 0.00 |
| Electronic load input rating power | 0.00 |
| Dimensions | 483x117x 668mm |
| Weight | 50 |
| Water-cooled option | No |
Features:
|
|
| Description: EA-PSB 20000 Triple series is the most compact multi-channel bidirectional high power DC source enabling multiple tests with a single device. A triple-channel power supply reduces the need for additional equipment. This not only lowers capital expenditure but also simplifies the testing setup, allowing engineers to focus on critical tasks without managing multiple devices. With three independent channels, customers can conduct parallel testing on different components or subsystems, such as motors, inverters, and on-board chargers, within the same test setup. This reduces the time needed to validate each component individually. The occupation of rack space is reduced by more than 50% when using triple devices instead of single output devices. By enabling more efficient testing and reducing the time required for validation and integration, a triple-channel power supply helps customers accelerate their development process. This is particularly important in fast-moving industries like automotive and renewable energy, where being first to market can be a significant competitive advantage. Operational expenses are significantly lower due to high energy recovery (up to greater than 96%) when used in bidirectional mode. Both operational and HVAC energy cost savings are realized. |
|
| Download datasheet |
EA-PSB 20500-60 Triple
| Manufacturer | EA - Elektro-Automatik |
| Power | 30000.00 W |
| Package | Triple 4U |
| Available output range (V) | 0-500 |
EA-PSB 20500-60 Triple
| Manufacturer |
|
| Power | 30000.00 W |
| Package | Triple 4U |
| Input voltage | 208-480Vac ±10% 3-phase |
| Efficiency | 0.00 |
| Available output range (V) | 0-500 |
| Output current (A) | 0-60 |
| Max output current | 0.00 |
| Electronic load input rating power | 0.00 |
| Dimensions | 483x117x 668mm |
| Weight | 50 |
| Water-cooled option | No |
Features:
|
|
| Description: EA-PSB 20000 Triple series is the most compact multi-channel bidirectional high power DC source enabling multiple tests with a single device. A triple-channel power supply reduces the need for additional equipment. This not only lowers capital expenditure but also simplifies the testing setup, allowing engineers to focus on critical tasks without managing multiple devices. With three independent channels, customers can conduct parallel testing on different components or subsystems, such as motors, inverters, and on-board chargers, within the same test setup. This reduces the time needed to validate each component individually. The occupation of rack space is reduced by more than 50% when using triple devices instead of single output devices. By enabling more efficient testing and reducing the time required for validation and integration, a triple-channel power supply helps customers accelerate their development process. This is particularly important in fast-moving industries like automotive and renewable energy, where being first to market can be a significant competitive advantage. Operational expenses are significantly lower due to high energy recovery (up to greater than 96%) when used in bidirectional mode. Both operational and HVAC energy cost savings are realized. |
|
| Download datasheet |
EA-PSB 20360-80 Triple
| Manufacturer | EA - Elektro-Automatik |
| Power | 30000.00 W |
| Package | Triple 4U |
| Available output range (V) | 0-360 |
EA-PSB 20360-80 Triple
| Manufacturer |
|
| Power | 30000.00 W |
| Package | Triple 4U |
| Input voltage | 208-480Vac ±10% 3-phase |
| Efficiency | 0.00 |
| Available output range (V) | 0-360 |
| Output current (A) | 0-80 |
| Max output current | 0.00 |
| Electronic load input rating power | 0.00 |
| Dimensions | 483x117x 668mm |
| Weight | 50 |
| Water-cooled option | No |
Features:
|
|
| Description: EA-PSB 20000 Triple series is the most compact multi-channel bidirectional high power DC source enabling multiple tests with a single device. A triple-channel power supply reduces the need for additional equipment. This not only lowers capital expenditure but also simplifies the testing setup, allowing engineers to focus on critical tasks without managing multiple devices. With three independent channels, customers can conduct parallel testing on different components or subsystems, such as motors, inverters, and on-board chargers, within the same test setup. This reduces the time needed to validate each component individually. The occupation of rack space is reduced by more than 50% when using triple devices instead of single output devices. By enabling more efficient testing and reducing the time required for validation and integration, a triple-channel power supply helps customers accelerate their development process. This is particularly important in fast-moving industries like automotive and renewable energy, where being first to market can be a significant competitive advantage. Operational expenses are significantly lower due to high energy recovery (up to greater than 96%) when used in bidirectional mode. Both operational and HVAC energy cost savings are realized. |
|
| Download datasheet |
EA-PSB 20200-140 Triple
| Manufacturer | EA - Elektro-Automatik |
| Power | 30000.00 W |
| Package | Triple 4U |
| Available output range (V) | 0-200 |
EA-PSB 20200-140 Triple
| Manufacturer |
|
| Power | 30000.00 W |
| Package | Triple 4U |
| Input voltage | 208-480Vac ±10% 3-phase |
| Efficiency | 0.00 |
| Available output range (V) | 0-200 |
| Output current (A) | 0-140 |
| Max output current | 0.00 |
| Electronic load input rating power | 0.00 |
| Dimensions | 483x117x 668mm |
| Weight | 50 |
| Water-cooled option | No |
Features:
|
|
| Description: EA-PSB 20000 Triple series is the most compact multi-channel bidirectional high power DC source enabling multiple tests with a single device. A triple-channel power supply reduces the need for additional equipment. This not only lowers capital expenditure but also simplifies the testing setup, allowing engineers to focus on critical tasks without managing multiple devices. With three independent channels, customers can conduct parallel testing on different components or subsystems, such as motors, inverters, and on-board chargers, within the same test setup. This reduces the time needed to validate each component individually. The occupation of rack space is reduced by more than 50% when using triple devices instead of single output devices. By enabling more efficient testing and reducing the time required for validation and integration, a triple-channel power supply helps customers accelerate their development process. This is particularly important in fast-moving industries like automotive and renewable energy, where being first to market can be a significant competitive advantage. Operational expenses are significantly lower due to high energy recovery (up to greater than 96%) when used in bidirectional mode. Both operational and HVAC energy cost savings are realized. |
|
| Download datasheet |
EA-PSB 20080-340 Triple
| Manufacturer | EA - Elektro-Automatik |
| Power | 30000.00 W |
| Package | Triple 4U |
| Available output range (V) | 0-80 |
EA-PSB 20080-340 Triple
| Manufacturer |
|
| Power | 30000.00 W |
| Package | Triple 4U |
| Input voltage | 208-480Vac ±10% 3-phase |
| Efficiency | 0.00 |
| Available output range (V) | 0-80 |
| Output current (A) | 0-340 |
| Max output current | 0.00 |
| Electronic load input rating power | 0.00 |
| Dimensions | 483x117x 668mm |
| Weight | 50 |
| Water-cooled option | No |
Features:
|
|
| Description: EA-PSB 20000 Triple series is the most compact multi-channel bidirectional high power DC source enabling multiple tests with a single device. A triple-channel power supply reduces the need for additional equipment. This not only lowers capital expenditure but also simplifies the testing setup, allowing engineers to focus on critical tasks without managing multiple devices. With three independent channels, customers can conduct parallel testing on different components or subsystems, such as motors, inverters, and on-board chargers, within the same test setup. This reduces the time needed to validate each component individually. The occupation of rack space is reduced by more than 50% when using triple devices instead of single output devices. By enabling more efficient testing and reducing the time required for validation and integration, a triple-channel power supply helps customers accelerate their development process. This is particularly important in fast-moving industries like automotive and renewable energy, where being first to market can be a significant competitive advantage. Operational expenses are significantly lower due to high energy recovery (up to greater than 96%) when used in bidirectional mode. Both operational and HVAC energy cost savings are realized. |
|
| Download datasheet |
EA-PSB 20060-340 Triple
| Manufacturer | EA - Elektro-Automatik |
| Power | 30000.00 W |
| Package | Triple 4U |
| Available output range (V) | 0-60 |
EA-PSB 20060-340 Triple
| Manufacturer |
|
| Power | 30000.00 W |
| Package | Triple 4U |
| Input voltage | 208-480Vac ±10% 3-phase |
| Efficiency | 0.00 |
| Available output range (V) | 0-60 |
| Output current (A) | 0-340 |
| Max output current | 0.00 |
| Electronic load input rating power | 0.00 |
| Dimensions | 483x117x 668mm |
| Weight | 50 |
| Water-cooled option | No |
Features:
|
|
| Description: EA-PSB 20000 Triple series is the most compact multi-channel bidirectional high power DC source enabling multiple tests with a single device. A triple-channel power supply reduces the need for additional equipment. This not only lowers capital expenditure but also simplifies the testing setup, allowing engineers to focus on critical tasks without managing multiple devices. With three independent channels, customers can conduct parallel testing on different components or subsystems, such as motors, inverters, and on-board chargers, within the same test setup. This reduces the time needed to validate each component individually. The occupation of rack space is reduced by more than 50% when using triple devices instead of single output devices. By enabling more efficient testing and reducing the time required for validation and integration, a triple-channel power supply helps customers accelerate their development process. This is particularly important in fast-moving industries like automotive and renewable energy, where being first to market can be a significant competitive advantage. Operational expenses are significantly lower due to high energy recovery (up to greater than 96%) when used in bidirectional mode. Both operational and HVAC energy cost savings are realized. |
|
| Download datasheet |
EA-PSB 10920-125 4U
| Manufacturer | EA - Elektro-Automatik |
| Power | 30000.00 W |
| Package | 4U Rack mount |
| Available output range (V) | 0-920 |
EA-PSB 10920-125 4U
| Manufacturer |
|
| Power | 30000.00 W |
| Package | 4U Rack mount |
| Notes | Bidirectional - power supply and load in one |
| Input voltage | 342-528Vac 3-phase |
| Efficiency | 0.00 |
| Available output range (V) | 0-920 |
| Output current (A) | 0-125 |
| Max output current | 0.00 |
| Electronic load input rating power | 0.00 |
| Warranty | 2 years |
| Dimensions | 19" x 4U x 670 mm |
| Weight | 44 |
| Water-cooled option | No |
| Manual | Link |
| Attachments | Link |
Features:
|
|
| Description: The new bidirectional power supplies of series EA-PSB 10000 off much power in in a small space: 30 kW in only 4 units of height (4U). Compared to series EA-PSB 9000 3U it saves a space of 2U, or one third, when considering the 30 kW of rated power. It also incorporates two devices in one: a power supply (source) and an electronic load (sink) with energy recovery. Based on these two features the devices offer the functionality of two-quadrants operation as standard. The internal electronic load achieves a high voltage dynamics by discharging the unavoidable capacitance on the DC terminal. For a connected source, the devices are full electronic loads with energy recovery feature, ideal for bigger systems with a total power of up to 1.08 megawatts. In source operation mode the device becomes a flexible, autoranging power supply like those of series EAPSI 9000 3U. It incorporates the advantages of both device types into one and at the same time it eliminates the disadvantages of separate units regarding weight, space requirement, costs and effort to implement them into custom test software. |
|
| Download datasheet |
EA-PSB 10060-1000 4U
| Manufacturer | EA - Elektro-Automatik |
| Power | 30000.00 W |
| Package | 4U Rack mount |
| Available output range (V) | 0-60 |
EA-PSB 10060-1000 4U
| Manufacturer |
|
| Power | 30000.00 W |
| Package | 4U Rack mount |
| Input voltage | 208-480Vac ±10% 3-phase |
| Efficiency | 0.00 |
| Available output range (V) | 0-60 |
| Output current (A) | 0-1000 |
| Max output current | 0.00 |
| Electronic load input rating power | 0.00 |
| Warranty | 2 years |
| Water-cooled option | No |
| Manual | Link |
Features:
|
|
| Description: The bidirectional DC laboratory power supplies in the PSB 10000 series from EA Elektro-Automatik are two quadrant devices which can perform the function of a power supply as well as that of an electronic load. In load mode the device is regenerative and feeds the energy back into the local grid with an efficiency up to over 96%. The PSB 10000 series includes single and three phase units, which, together with the wide input range, allows use with practically all global mains voltages. The DC voltage and current are directed by the application and the spectrum ranges from 0 - 10 V to 0 - 2000 V and from 0 - 6 A up to 0 - 1000 A in a single device. The DC supply operates as a flexible output stage with a constant power characteristic (autoranging), and a wide voltage, current and power range. To achieve higher power and current all units are equipped with a master-slave bus. This enables up to 64 parallel connected devices to be combined into one system which can provide up to 1920 W and 64000 A. Such a system works as a single unit and can use different power classes, only the voltage class must remain constant. In this way a user can construct a 75 kW system from two 30 kW and one 15 kW devices from the PSB 10000 range. Furthermore, typical laboratory functionality is provided. This includes an extensive function generator, alarm and warning management, assorted interfaces and ports, software solutions and many more functions. |
|
| Download datasheet |
EA-PSB 10080-1000 4U
| Manufacturer | EA - Elektro-Automatik |
| Power | 30000.00 W |
| Package | 4U Rack mount |
| Available output range (V) | 0-80 |
EA-PSB 10080-1000 4U
| Manufacturer |
|
| Power | 30000.00 W |
| Package | 4U Rack mount |
| Input voltage | 208-480Vac ±10% 3-phase |
| Efficiency | 0.00 |
| Available output range (V) | 0-80 |
| Output current (A) | 0-1000 |
| Max output current | 0.00 |
| Electronic load input rating power | 0.00 |
| Warranty | 2 years |
| Water-cooled option | No |
| Manual | Link |
Features:
|
|
| Description: The bidirectional DC laboratory power supplies in the PSB 10000 series from EA Elektro-Automatik are two quadrant devices which can perform the function of a power supply as well as that of an electronic load. In load mode the device is regenerative and feeds the energy back into the local grid with an efficiency up to over 96%. The PSB 10000 series includes single and three phase units, which, together with the wide input range, allows use with practically all global mains voltages. The DC voltage and current are directed by the application and the spectrum ranges from 0 - 10 V to 0 - 2000 V and from 0 - 6 A up to 0 - 1000 A in a single device. The DC supply operates as a flexible output stage with a constant power characteristic (autoranging), and a wide voltage, current and power range. To achieve higher power and current all units are equipped with a master-slave bus. This enables up to 64 parallel connected devices to be combined into one system which can provide up to 1920 W and 64000 A. Such a system works as a single unit and can use different power classes, only the voltage class must remain constant. In this way a user can construct a 75 kW system from two 30 kW and one 15 kW devices from the PSB 10000 range. Furthermore, typical laboratory functionality is provided. This includes an extensive function generator, alarm and warning management, assorted interfaces and ports, software solutions and many more functions. |
|
| Download datasheet |
EA-PSB 10200-420 4U
| Manufacturer | EA - Elektro-Automatik |
| Power | 30000.00 W |
| Package | 4U Rack mount |
| Available output range (V) | 0-200 |
EA-PSB 10200-420 4U
| Manufacturer |
|
| Power | 30000.00 W |
| Package | 4U Rack mount |
| Input voltage | 208-480Vac ±10% 3-phase |
| Efficiency | 0.00 |
| Available output range (V) | 0-200 |
| Output current (A) | 0-420 |
| Max output current | 0.00 |
| Electronic load input rating power | 0.00 |
| Warranty | 2 years |
| Water-cooled option | No |
| Manual | Link |
Features:
|
|
| Description: The bidirectional DC laboratory power supplies in the PSB 10000 series from EA Elektro-Automatik are two quadrant devices which can perform the function of a power supply as well as that of an electronic load. In load mode the device is regenerative and feeds the energy back into the local grid with an efficiency up to over 96%. The PSB 10000 series includes single and three phase units, which, together with the wide input range, allows use with practically all global mains voltages. The DC voltage and current are directed by the application and the spectrum ranges from 0 - 10 V to 0 - 2000 V and from 0 - 6 A up to 0 - 1000 A in a single device. The DC supply operates as a flexible output stage with a constant power characteristic (autoranging), and a wide voltage, current and power range. To achieve higher power and current all units are equipped with a master-slave bus. This enables up to 64 parallel connected devices to be combined into one system which can provide up to 1920 W and 64000 A. Such a system works as a single unit and can use different power classes, only the voltage class must remain constant. In this way a user can construct a 75 kW system from two 30 kW and one 15 kW devices from the PSB 10000 range. Furthermore, typical laboratory functionality is provided. This includes an extensive function generator, alarm and warning management, assorted interfaces and ports, software solutions and many more functions. |
|
| Download datasheet |
EA-PSB 10360-240 4U
| Manufacturer | EA - Elektro-Automatik |
| Power | 30000.00 W |
| Package | 4U Rack mount |
| Available output range (V) | 0-360 |
EA-PSB 10360-240 4U
| Manufacturer |
|
| Power | 30000.00 W |
| Package | 4U Rack mount |
| Input voltage | 208-480Vac ±10% 3-phase |
| Efficiency | 0.00 |
| Available output range (V) | 0-360 |
| Output current (A) | 0-240 |
| Max output current | 0.00 |
| Electronic load input rating power | 0.00 |
| Warranty | 2 years |
| Water-cooled option | No |
| Manual | Link |
Features:
|
|
| Description: The bidirectional DC laboratory power supplies in the PSB 10000 series from EA Elektro-Automatik are two quadrant devices which can perform the function of a power supply as well as that of an electronic load. In load mode the device is regenerative and feeds the energy back into the local grid with an efficiency up to over 96%. The PSB 10000 series includes single and three phase units, which, together with the wide input range, allows use with practically all global mains voltages. The DC voltage and current are directed by the application and the spectrum ranges from 0 - 10 V to 0 - 2000 V and from 0 - 6 A up to 0 - 1000 A in a single device. The DC supply operates as a flexible output stage with a constant power characteristic (autoranging), and a wide voltage, current and power range. To achieve higher power and current all units are equipped with a master-slave bus. This enables up to 64 parallel connected devices to be combined into one system which can provide up to 1920 W and 64000 A. Such a system works as a single unit and can use different power classes, only the voltage class must remain constant. In this way a user can construct a 75 kW system from two 30 kW and one 15 kW devices from the PSB 10000 range. Furthermore, typical laboratory functionality is provided. This includes an extensive function generator, alarm and warning management, assorted interfaces and ports, software solutions and many more functions. |
|
| Download datasheet |
EA-PSB 10500-180 4U
| Manufacturer | EA - Elektro-Automatik |
| Power | 30000.00 W |
| Package | 4U Rack mount |
| Available output range (V) | 0-500 |
EA-PSB 10500-180 4U
| Manufacturer |
|
| Power | 30000.00 W |
| Package | 4U Rack mount |
| Input voltage | 208-480Vac ±10% 3-phase |
| Efficiency | 0.00 |
| Available output range (V) | 0-500 |
| Output current (A) | 0-180 |
| Max output current | 0.00 |
| Electronic load input rating power | 0.00 |
| Warranty | 2 years |
| Water-cooled option | No |
| Manual | Link |
Features:
|
|
| Description: The bidirectional DC laboratory power supplies in the PSB 10000 series from EA Elektro-Automatik are two quadrant devices which can perform the function of a power supply as well as that of an electronic load. In load mode the device is regenerative and feeds the energy back into the local grid with an efficiency up to over 96%. The PSB 10000 series includes single and three phase units, which, together with the wide input range, allows use with practically all global mains voltages. The DC voltage and current are directed by the application and the spectrum ranges from 0 - 10 V to 0 - 2000 V and from 0 - 6 A up to 0 - 1000 A in a single device. The DC supply operates as a flexible output stage with a constant power characteristic (autoranging), and a wide voltage, current and power range. To achieve higher power and current all units are equipped with a master-slave bus. This enables up to 64 parallel connected devices to be combined into one system which can provide up to 1920 W and 64000 A. Such a system works as a single unit and can use different power classes, only the voltage class must remain constant. In this way a user can construct a 75 kW system from two 30 kW and one 15 kW devices from the PSB 10000 range. Furthermore, typical laboratory functionality is provided. This includes an extensive function generator, alarm and warning management, assorted interfaces and ports, software solutions and many more functions. |
|
| Download datasheet |
EA-PSB 10750-120 4U
| Manufacturer | EA - Elektro-Automatik |
| Power | 30000.00 W |
| Package | 4U Rack mount |
| Available output range (V) | 0-750 |
EA-PSB 10750-120 4U
| Manufacturer |
|
| Power | 30000.00 W |
| Package | 4U Rack mount |
| Input voltage | 208-480Vac ±10% 3-phase |
| Efficiency | 0.00 |
| Available output range (V) | 0-750 |
| Output current (A) | 0-120 |
| Max output current | 0.00 |
| Electronic load input rating power | 0.00 |
| Warranty | 2 years |
| Water-cooled option | No |
| Manual | Link |
Features:
|
|
| Description: The bidirectional DC laboratory power supplies in the PSB 10000 series from EA Elektro-Automatik are two quadrant devices which can perform the function of a power supply as well as that of an electronic load. In load mode the device is regenerative and feeds the energy back into the local grid with an efficiency up to over 96%. The PSB 10000 series includes single and three phase units, which, together with the wide input range, allows use with practically all global mains voltages. The DC voltage and current are directed by the application and the spectrum ranges from 0 - 10 V to 0 - 2000 V and from 0 - 6 A up to 0 - 1000 A in a single device. The DC supply operates as a flexible output stage with a constant power characteristic (autoranging), and a wide voltage, current and power range. To achieve higher power and current all units are equipped with a master-slave bus. This enables up to 64 parallel connected devices to be combined into one system which can provide up to 1920 W and 64000 A. Such a system works as a single unit and can use different power classes, only the voltage class must remain constant. In this way a user can construct a 75 kW system from two 30 kW and one 15 kW devices from the PSB 10000 range. Furthermore, typical laboratory functionality is provided. This includes an extensive function generator, alarm and warning management, assorted interfaces and ports, software solutions and many more functions. |
|
| Download datasheet |
EA-PSB 11000-80 4U
| Manufacturer | EA - Elektro-Automatik |
| Power | 30000.00 W |
| Package | 4U Rack mount |
| Available output range (V) | 0-1000 |
EA-PSB 11000-80 4U
| Manufacturer |
|
| Power | 30000.00 W |
| Package | 4U Rack mount |
| Input voltage | 208-480Vac ±10% 3-phase |
| Efficiency | 0.00 |
| Available output range (V) | 0-1000 |
| Output current (A) | 0-80 |
| Max output current | 0.00 |
| Electronic load input rating power | 0.00 |
| Warranty | 2 years |
| Water-cooled option | No |
| Manual | Link |
Features:
|
|
| Description: The bidirectional DC laboratory power supplies in the PSB 10000 series from EA Elektro-Automatik are two quadrant devices which can perform the function of a power supply as well as that of an electronic load. In load mode the device is regenerative and feeds the energy back into the local grid with an efficiency up to over 96%. The PSB 10000 series includes single and three phase units, which, together with the wide input range, allows use with practically all global mains voltages. The DC voltage and current are directed by the application and the spectrum ranges from 0 - 10 V to 0 - 2000 V and from 0 - 6 A up to 0 - 1000 A in a single device. The DC supply operates as a flexible output stage with a constant power characteristic (autoranging), and a wide voltage, current and power range. To achieve higher power and current all units are equipped with a master-slave bus. This enables up to 64 parallel connected devices to be combined into one system which can provide up to 1920 W and 64000 A. Such a system works as a single unit and can use different power classes, only the voltage class must remain constant. In this way a user can construct a 75 kW system from two 30 kW and one 15 kW devices from the PSB 10000 range. Furthermore, typical laboratory functionality is provided. This includes an extensive function generator, alarm and warning management, assorted interfaces and ports, software solutions and many more functions. |
|
| Download datasheet |
EA-PSB 11500-60 4U
| Manufacturer | EA - Elektro-Automatik |
| Power | 30000.00 W |
| Package | 4U Rack mount |
| Available output range (V) | 0-1500 |
EA-PSB 11500-60 4U
| Manufacturer |
|
| Power | 30000.00 W |
| Package | 4U Rack mount |
| Input voltage | 208-480Vac ±10% 3-phase |
| Efficiency | 0.00 |
| Available output range (V) | 0-1500 |
| Output current (A) | 0-60 |
| Max output current | 0.00 |
| Electronic load input rating power | 0.00 |
| Warranty | 2 years |
| Water-cooled option | No |
| Manual | Link |
Features:
|
|
| Description: The bidirectional DC laboratory power supplies in the PSB 10000 series from EA Elektro-Automatik are two quadrant devices which can perform the function of a power supply as well as that of an electronic load. In load mode the device is regenerative and feeds the energy back into the local grid with an efficiency up to over 96%. The PSB 10000 series includes single and three phase units, which, together with the wide input range, allows use with practically all global mains voltages. The DC voltage and current are directed by the application and the spectrum ranges from 0 - 10 V to 0 - 2000 V and from 0 - 6 A up to 0 - 1000 A in a single device. The DC supply operates as a flexible output stage with a constant power characteristic (autoranging), and a wide voltage, current and power range. To achieve higher power and current all units are equipped with a master-slave bus. This enables up to 64 parallel connected devices to be combined into one system which can provide up to 1920 W and 64000 A. Such a system works as a single unit and can use different power classes, only the voltage class must remain constant. In this way a user can construct a 75 kW system from two 30 kW and one 15 kW devices from the PSB 10000 range. Furthermore, typical laboratory functionality is provided. This includes an extensive function generator, alarm and warning management, assorted interfaces and ports, software solutions and many more functions. |
|
| Download datasheet |
EA-PSB 12000-40 4U
| Manufacturer | EA - Elektro-Automatik |
| Power | 30000.00 W |
| Package | 4U Rack mount |
| Available output range (V) | 0-2000 |
EA-PSB 12000-40 4U
| Manufacturer |
|
| Power | 30000.00 W |
| Package | 4U Rack mount |
| Input voltage | 208-480Vac ±10% 3-phase |
| Efficiency | 0.00 |
| Available output range (V) | 0-2000 |
| Output current (A) | 0-40 |
| Max output current | 0.00 |
| Electronic load input rating power | 0.00 |
| Warranty | 2 years |
| Water-cooled option | No |
| Manual | Link |
Features:
|
|
| Description: The bidirectional DC laboratory power supplies in the PSB 10000 series from EA Elektro-Automatik are two quadrant devices which can perform the function of a power supply as well as that of an electronic load. In load mode the device is regenerative and feeds the energy back into the local grid with an efficiency up to over 96%. The PSB 10000 series includes single and three phase units, which, together with the wide input range, allows use with practically all global mains voltages. The DC voltage and current are directed by the application and the spectrum ranges from 0 - 10 V to 0 - 2000 V and from 0 - 6 A up to 0 - 1000 A in a single device. The DC supply operates as a flexible output stage with a constant power characteristic (autoranging), and a wide voltage, current and power range. To achieve higher power and current all units are equipped with a master-slave bus. This enables up to 64 parallel connected devices to be combined into one system which can provide up to 1920 W and 64000 A. Such a system works as a single unit and can use different power classes, only the voltage class must remain constant. In this way a user can construct a 75 kW system from two 30 kW and one 15 kW devices from the PSB 10000 range. Furthermore, typical laboratory functionality is provided. This includes an extensive function generator, alarm and warning management, assorted interfaces and ports, software solutions and many more functions. |
|
| Download datasheet |
EA-PUB 10060-1000 4U
| Manufacturer | EA - Elektro-Automatik |
| Power | 30000.00 W |
| Package | 4U Rack mount |
| Available output range (V) | 0-60 |
EA-PUB 10060-1000 4U
| Manufacturer |
|
| Power | 30000.00 W |
| Package | 4U Rack mount |
| Notes | Water cooling and Integrated function generator options available |
| Input voltage | 208-480Vac ±10% 3-phase |
| Efficiency | 0.95 |
| Available output range (V) | 0-60 |
| Output current (A) | 0-1000 |
| Max output current | 0.00 |
| Electronic load input rating power | 0.00 |
| Warranty | 2 years |
| Dimensions | 19" x 4U x 668 mm |
| Weight | 50kg (56kg with water cooling) |
| Water-cooled option | Yes |
| Interface options | CAN, CANopen, RS232, Profibus, EtherCAT, Profinet/Modbus/Ethernet (with 1 or 2 ports) |
Features:
|
|
| Description: The bidirectional DC laboratory power supplies in the PUB 10000 series from EA Elektro-Automatik are two quadrant devices which can perform the function of a power supply (source) as well as that of an electronic load (sink). In sink mode the device is regenerative and feeds the energy back into the local grid with an efficiency up to over 96%. The PUB 10000 series are three phase units, which, together with the wide input range, allows use with practically all global mains voltages. The DC voltage and current are determined by the application and the spectrum ranges from 0 - 60 V to 0 - 2000 V and from 0 - 40 A up to 0 - 1000 A in a single device. The DC supply operates as a flexible output stage with a constant power characteristic (autoranging), and a wide voltage and current range. To achieve higher power and current all units are equipped with a Master-Slave-Bus. This enables up to 64 parallel connected devices to be combined into one system which can provide up to 3840 W and 64000 A. Such a system works as a single unit and can use different power classes start from 5kW, only the voltage class must remain constant. In this way a user can construct a 150 kW system from two 60 kW and one 30 kW devices from the PUB 10000 range. Furthermore, typical laboratory functionality is provided. This includes an extensive function generator, alarm and warning management, various optional interfaces and ports, software solutions and many more functions. Built-in interfaces: USB, Ethernet, Analog, Master-Slave-Bus, Share-Bus, USB Front panel |
|
| Download datasheet |
EA-PUB 10080-1000 4U
| Manufacturer | EA - Elektro-Automatik |
| Power | 30000.00 W |
| Package | 4U Rack mount |
| Available output range (V) | 0-80 |
EA-PUB 10080-1000 4U
| Manufacturer |
|
| Power | 30000.00 W |
| Package | 4U Rack mount |
| Notes | Water cooling and Integrated function generator options available |
| Input voltage | 208-480Vac ±10% 3-phase |
| Efficiency | 0.96 |
| Available output range (V) | 0-80 |
| Output current (A) | 0-1000 |
| Max output current | 0.00 |
| Electronic load input rating power | 0.00 |
| Warranty | 2 years |
| Dimensions | 19" x 4U x 668 mm |
| Weight | 50kg (56kg with water cooling) |
| Water-cooled option | Yes |
| Interface options | CAN, CANopen, RS232, Profibus, EtherCAT, Profinet/Modbus/Ethernet (with 1 or 2 ports) |
Features:
|
|
| Description: The bidirectional DC laboratory power supplies in the PUB 10000 series from EA Elektro-Automatik are two quadrant devices which can perform the function of a power supply (source) as well as that of an electronic load (sink). In sink mode the device is regenerative and feeds the energy back into the local grid with an efficiency up to over 96%. The PUB 10000 series are three phase units, which, together with the wide input range, allows use with practically all global mains voltages. The DC voltage and current are determined by the application and the spectrum ranges from 0 - 60 V to 0 - 2000 V and from 0 - 40 A up to 0 - 1000 A in a single device. The DC supply operates as a flexible output stage with a constant power characteristic (autoranging), and a wide voltage and current range. To achieve higher power and current all units are equipped with a Master-Slave-Bus. This enables up to 64 parallel connected devices to be combined into one system which can provide up to 3840 W and 64000 A. Such a system works as a single unit and can use different power classes start from 5kW, only the voltage class must remain constant. In this way a user can construct a 150 kW system from two 60 kW and one 30 kW devices from the PUB 10000 range. Furthermore, typical laboratory functionality is provided. This includes an extensive function generator, alarm and warning management, various optional interfaces and ports, software solutions and many more functions. |
|
| Download datasheet |
EA-PUB 10200-420 4U
| Manufacturer | EA - Elektro-Automatik |
| Power | 30000.00 W |
| Package | 4U Rack mount |
| Available output range (V) | 0-200 |
EA-PUB 10200-420 4U
| Manufacturer |
|
| Power | 30000.00 W |
| Package | 4U Rack mount |
| Notes | Water cooling and Integrated function generator options available |
| Input voltage | 208-480Vac ±10% 3-phase |
| Efficiency | 0.95 |
| Available output range (V) | 0-200 |
| Output current (A) | 0-420 |
| Max output current | 0.00 |
| Electronic load input rating power | 0.00 |
| Warranty | 2 years |
| Dimensions | 19" x 4U x 668 mm |
| Weight | 50kg (56kg with water cooling) |
| Water-cooled option | Yes |
| Interface options | CAN, CANopen, RS232, Profibus, EtherCAT, Profinet/Modbus/Ethernet (with 1 or 2 ports) |
Features:
|
|
| Description: The bidirectional DC laboratory power supplies in the PUB 10000 series from EA Elektro-Automatik are two quadrant devices which can perform the function of a power supply (source) as well as that of an electronic load (sink). In sink mode the device is regenerative and feeds the energy back into the local grid with an efficiency up to over 96%. The PUB 10000 series are three phase units, which, together with the wide input range, allows use with practically all global mains voltages. The DC voltage and current are determined by the application and the spectrum ranges from 0 - 60 V to 0 - 2000 V and from 0 - 40 A up to 0 - 1000 A in a single device. The DC supply operates as a flexible output stage with a constant power characteristic (autoranging), and a wide voltage and current range. To achieve higher power and current all units are equipped with a Master-Slave-Bus. This enables up to 64 parallel connected devices to be combined into one system which can provide up to 3840 W and 64000 A. Such a system works as a single unit and can use different power classes start from 5kW, only the voltage class must remain constant. In this way a user can construct a 150 kW system from two 60 kW and one 30 kW devices from the PUB 10000 range. Furthermore, typical laboratory functionality is provided. This includes an extensive function generator, alarm and warning management, various optional interfaces and ports, software solutions and many more functions. |
|
| Download datasheet |
EA-PUB 10360-240 4U
| Manufacturer | EA - Elektro-Automatik |
| Power | 30000.00 W |
| Package | 4U Rack mount |
| Available output range (V) | 0-360 |
EA-PUB 10360-240 4U
| Manufacturer |
|
| Power | 30000.00 W |
| Package | 4U Rack mount |
| Notes | Water cooling and Integrated function generator options available |
| Input voltage | 208-480Vac ±10% 3-phase |
| Efficiency | 0.96 |
| Available output range (V) | 0-360 |
| Output current (A) | 0-240 |
| Max output current | 0.00 |
| Electronic load input rating power | 0.00 |
| Warranty | 2 years |
| Dimensions | 19" x 4U x 668 mm |
| Weight | 50kg (56kg with water cooling) |
| Water-cooled option | Yes |
| Interface options | CAN, CANopen, RS232, Profibus, EtherCAT, Profinet/Modbus/Ethernet (with 1 or 2 ports) |
Features:
|
|
| Description: The bidirectional DC laboratory power supplies in the PUB 10000 series from EA Elektro-Automatik are two quadrant devices which can perform the function of a power supply (source) as well as that of an electronic load (sink). In sink mode the device is regenerative and feeds the energy back into the local grid with an efficiency up to over 96%. The PUB 10000 series are three phase units, which, together with the wide input range, allows use with practically all global mains voltages. The DC voltage and current are determined by the application and the spectrum ranges from 0 - 60 V to 0 - 2000 V and from 0 - 40 A up to 0 - 1000 A in a single device. The DC supply operates as a flexible output stage with a constant power characteristic (autoranging), and a wide voltage and current range. To achieve higher power and current all units are equipped with a Master-Slave-Bus. This enables up to 64 parallel connected devices to be combined into one system which can provide up to 3840 W and 64000 A. Such a system works as a single unit and can use different power classes start from 5kW, only the voltage class must remain constant. In this way a user can construct a 150 kW system from two 60 kW and one 30 kW devices from the PUB 10000 range. Furthermore, typical laboratory functionality is provided. This includes an extensive function generator, alarm and warning management, various optional interfaces and ports, software solutions and many more functions. |
|
| Download datasheet |
EA-PUB 10500-180 4U
| Manufacturer | EA - Elektro-Automatik |
| Power | 30000.00 W |
| Package | 4U Rack mount |
| Available output range (V) | 0-500 |
EA-PUB 10500-180 4U
| Manufacturer |
|
| Power | 30000.00 W |
| Package | 4U Rack mount |
| Notes | Water cooling and Integrated function generator options available |
| Input voltage | 208-480Vac ±10% 3-phase |
| Efficiency | 0.97 |
| Available output range (V) | 0-500 |
| Output current (A) | 0-180 |
| Max output current | 0.00 |
| Electronic load input rating power | 0.00 |
| Warranty | 2 years |
| Dimensions | 19" x 4U x 668 mm |
| Weight | 50kg (56kg with water cooling) |
| Water-cooled option | Yes |
| Interface options | CAN, CANopen, RS232, Profibus, EtherCAT, Profinet/Modbus/Ethernet (with 1 or 2 ports) |
Features:
|
|
| Description: The bidirectional DC laboratory power supplies in the PUB 10000 series from EA Elektro-Automatik are two quadrant devices which can perform the function of a power supply (source) as well as that of an electronic load (sink). In sink mode the device is regenerative and feeds the energy back into the local grid with an efficiency up to over 96%. The PUB 10000 series are three phase units, which, together with the wide input range, allows use with practically all global mains voltages. The DC voltage and current are determined by the application and the spectrum ranges from 0 - 60 V to 0 - 2000 V and from 0 - 40 A up to 0 - 1000 A in a single device. The DC supply operates as a flexible output stage with a constant power characteristic (autoranging), and a wide voltage and current range. To achieve higher power and current all units are equipped with a Master-Slave-Bus. This enables up to 64 parallel connected devices to be combined into one system which can provide up to 3840 W and 64000 A. Such a system works as a single unit and can use different power classes start from 5kW, only the voltage class must remain constant. In this way a user can construct a 150 kW system from two 60 kW and one 30 kW devices from the PUB 10000 range. Furthermore, typical laboratory functionality is provided. This includes an extensive function generator, alarm and warning management, various optional interfaces and ports, software solutions and many more functions. |
|
| Download datasheet |
EA-PUB 10750-120 4U
| Manufacturer | EA - Elektro-Automatik |
| Power | 30000.00 W |
| Package | 4U Rack mount |
| Available output range (V) | 0-750 |
EA-PUB 10750-120 4U
| Manufacturer |
|
| Power | 30000.00 W |
| Package | 4U Rack mount |
| Notes | Water cooling and Integrated function generator options available |
| Input voltage | 208-480Vac ±10% 3-phase |
| Efficiency | 0.97 |
| Available output range (V) | 0-750 |
| Output current (A) | 0-120 |
| Max output current | 0.00 |
| Electronic load input rating power | 0.00 |
| Warranty | 2 years |
| Dimensions | 19" x 4U x 668 mm |
| Weight | 50kg (56kg with water cooling) |
| Water-cooled option | Yes |
| Interface options | CAN, CANopen, RS232, Profibus, EtherCAT, Profinet/Modbus/Ethernet (with 1 or 2 ports) |
Features:
|
|
| Description: The bidirectional DC laboratory power supplies in the PUB 10000 series from EA Elektro-Automatik are two quadrant devices which can perform the function of a power supply (source) as well as that of an electronic load (sink). In sink mode the device is regenerative and feeds the energy back into the local grid with an efficiency up to over 96%. The PUB 10000 series are three phase units, which, together with the wide input range, allows use with practically all global mains voltages. The DC voltage and current are determined by the application and the spectrum ranges from 0 - 60 V to 0 - 2000 V and from 0 - 40 A up to 0 - 1000 A in a single device. The DC supply operates as a flexible output stage with a constant power characteristic (autoranging), and a wide voltage and current range. To achieve higher power and current all units are equipped with a Master-Slave-Bus. This enables up to 64 parallel connected devices to be combined into one system which can provide up to 3840 W and 64000 A. Such a system works as a single unit and can use different power classes start from 5kW, only the voltage class must remain constant. In this way a user can construct a 150 kW system from two 60 kW and one 30 kW devices from the PUB 10000 range. Furthermore, typical laboratory functionality is provided. This includes an extensive function generator, alarm and warning management, various optional interfaces and ports, software solutions and many more functions. |
|
| Download datasheet |
EA-PUB 10920-125 4U
| Manufacturer | EA - Elektro-Automatik |
| Power | 30000.00 W |
| Package | 4U Rack mount |
| Available output range (V) | 0-920 |
EA-PUB 10920-125 4U
| Manufacturer |
|
| Power | 30000.00 W |
| Package | 4U Rack mount |
| Notes | Water cooling and Integrated function generator options available |
| Input voltage | 208-480Vac ±10% 3-phase |
| Efficiency | 0.97 |
| Available output range (V) | 0-920 |
| Output current (A) | 0-125 |
| Max output current | 0.00 |
| Electronic load input rating power | 0.00 |
| Warranty | 2 years |
| Dimensions | 19" x 4U x 668 mm |
| Weight | 50kg (56kg with water cooling) |
| Water-cooled option | Yes |
| Interface options | CAN, CANopen, RS232, Profibus, EtherCAT, Profinet/Modbus/Ethernet (with 1 or 2 ports) |
Features:
|
|
| Description: The bidirectional DC laboratory power supplies in the PUB 10000 series from EA Elektro-Automatik are two quadrant devices which can perform the function of a power supply (source) as well as that of an electronic load (sink). In sink mode the device is regenerative and feeds the energy back into the local grid with an efficiency up to over 96%. The PUB 10000 series are three phase units, which, together with the wide input range, allows use with practically all global mains voltages. The DC voltage and current are determined by the application and the spectrum ranges from 0 - 60 V to 0 - 2000 V and from 0 - 40 A up to 0 - 1000 A in a single device. The DC supply operates as a flexible output stage with a constant power characteristic (autoranging), and a wide voltage and current range. To achieve higher power and current all units are equipped with a Master-Slave-Bus. This enables up to 64 parallel connected devices to be combined into one system which can provide up to 3840 W and 64000 A. Such a system works as a single unit and can use different power classes start from 5kW, only the voltage class must remain constant. In this way a user can construct a 150 kW system from two 60 kW and one 30 kW devices from the PUB 10000 range. Furthermore, typical laboratory functionality is provided. This includes an extensive function generator, alarm and warning management, various optional interfaces and ports, software solutions and many more functions. |
|
| Download datasheet |
EA-PUB 11000-80 4U
| Manufacturer | EA - Elektro-Automatik |
| Power | 30000.00 W |
| Package | 4U Rack mount |
| Available output range (V) | 0-1000 |
EA-PUB 11000-80 4U
| Manufacturer |
|
| Power | 30000.00 W |
| Package | 4U Rack mount |
| Notes | Water cooling and Integrated function generator options available |
| Input voltage | 208-480Vac ±10% 3-phase |
| Efficiency | 0.96 |
| Available output range (V) | 0-1000 |
| Output current (A) | 0-80 |
| Max output current | 0.00 |
| Electronic load input rating power | 0.00 |
| Warranty | 2 years |
| Dimensions | 19" x 4U x 668 mm |
| Weight | 50kg (56kg with water cooling) |
| Water-cooled option | Yes |
| Interface options | CAN, CANopen, RS232, Profibus, EtherCAT, Profinet/Modbus/Ethernet (with 1 or 2 ports) |
Features:
|
|
| Description: The bidirectional DC laboratory power supplies in the PUB 10000 series from EA Elektro-Automatik are two quadrant devices which can perform the function of a power supply (source) as well as that of an electronic load (sink). In sink mode the device is regenerative and feeds the energy back into the local grid with an efficiency up to over 96%. The PUB 10000 series are three phase units, which, together with the wide input range, allows use with practically all global mains voltages. The DC voltage and current are determined by the application and the spectrum ranges from 0 - 60 V to 0 - 2000 V and from 0 - 40 A up to 0 - 1000 A in a single device. The DC supply operates as a flexible output stage with a constant power characteristic (autoranging), and a wide voltage and current range. To achieve higher power and current all units are equipped with a Master-Slave-Bus. This enables up to 64 parallel connected devices to be combined into one system which can provide up to 3840 W and 64000 A. Such a system works as a single unit and can use different power classes start from 5kW, only the voltage class must remain constant. In this way a user can construct a 150 kW system from two 60 kW and one 30 kW devices from the PUB 10000 range. Furthermore, typical laboratory functionality is provided. This includes an extensive function generator, alarm and warning management, various optional interfaces and ports, software solutions and many more functions. |
|
| Download datasheet |
EA-PUB 11500-60 4U
| Manufacturer | EA - Elektro-Automatik |
| Power | 30000.00 W |
| Package | 4U Rack mount |
| Available output range (V) | 0-1500 |
EA-PUB 11500-60 4U
| Manufacturer |
|
| Power | 30000.00 W |
| Package | 4U Rack mount |
| Notes | Water cooling and Integrated function generator options available |
| Input voltage | 208-480Vac ±10% 3-phase |
| Efficiency | 0.97 |
| Available output range (V) | 0-1500 |
| Output current (A) | 0-60 |
| Max output current | 0.00 |
| Electronic load input rating power | 0.00 |
| Warranty | 2 years |
| Dimensions | 19" x 4U x 668 mm |
| Weight | 50kg (56kg with water cooling) |
| Water-cooled option | Yes |
| Interface options | CAN, CANopen, RS232, Profibus, EtherCAT, Profinet/Modbus/Ethernet (with 1 or 2 ports) |
Features:
|
|
| Description: The bidirectional DC laboratory power supplies in the PUB 10000 series from EA Elektro-Automatik are two quadrant devices which can perform the function of a power supply (source) as well as that of an electronic load (sink). In sink mode the device is regenerative and feeds the energy back into the local grid with an efficiency up to over 96%. The PUB 10000 series are three phase units, which, together with the wide input range, allows use with practically all global mains voltages. The DC voltage and current are determined by the application and the spectrum ranges from 0 - 60 V to 0 - 2000 V and from 0 - 40 A up to 0 - 1000 A in a single device. The DC supply operates as a flexible output stage with a constant power characteristic (autoranging), and a wide voltage and current range. To achieve higher power and current all units are equipped with a Master-Slave-Bus. This enables up to 64 parallel connected devices to be combined into one system which can provide up to 3840 W and 64000 A. Such a system works as a single unit and can use different power classes start from 5kW, only the voltage class must remain constant. In this way a user can construct a 150 kW system from two 60 kW and one 30 kW devices from the PUB 10000 range. Furthermore, typical laboratory functionality is provided. This includes an extensive function generator, alarm and warning management, various optional interfaces and ports, software solutions and many more functions. |
|
| Download datasheet |
EA-PUB 12000-40 4U
| Manufacturer | EA - Elektro-Automatik |
| Power | 30000.00 W |
| Package | 4U Rack mount |
| Available output range (V) | 0-2000 |
EA-PUB 12000-40 4U
| Manufacturer |
|
| Power | 30000.00 W |
| Package | 4U Rack mount |
| Notes | Water cooling and Integrated function generator options available |
| Input voltage | 208-480Vac ±10% 3-phase |
| Efficiency | 0.97 |
| Available output range (V) | 0-2000 |
| Output current (A) | 0-40 |
| Max output current | 0.00 |
| Electronic load input rating power | 0.00 |
| Warranty | 2 years |
| Dimensions | 19" x 4U x 668 mm |
| Weight | 50kg (56kg with water cooling) |
| Water-cooled option | Yes |
| Interface options | CAN, CANopen, RS232, Profibus, EtherCAT, Profinet/Modbus/Ethernet (with 1 or 2 ports) |
Features:
|
|
| Description: The bidirectional DC laboratory power supplies in the PUB 10000 series from EA Elektro-Automatik are two quadrant devices which can perform the function of a power supply (source) as well as that of an electronic load (sink). In sink mode the device is regenerative and feeds the energy back into the local grid with an efficiency up to over 96%. The PUB 10000 series are three phase units, which, together with the wide input range, allows use with practically all global mains voltages. The DC voltage and current are determined by the application and the spectrum ranges from 0 - 60 V to 0 - 2000 V and from 0 - 40 A up to 0 - 1000 A in a single device. The DC supply operates as a flexible output stage with a constant power characteristic (autoranging), and a wide voltage and current range. To achieve higher power and current all units are equipped with a Master-Slave-Bus. This enables up to 64 parallel connected devices to be combined into one system which can provide up to 3840 W and 64000 A. Such a system works as a single unit and can use different power classes start from 5kW, only the voltage class must remain constant. In this way a user can construct a 150 kW system from two 60 kW and one 30 kW devices from the PUB 10000 range. Furthermore, typical laboratory functionality is provided. This includes an extensive function generator, alarm and warning management, various optional interfaces and ports, software solutions and many more functions. |
|
| Download datasheet |
EA-BT 20060-1000 4U
| Manufacturer | EA - Elektro-Automatik |
| Power | 30000.00 W |
| Package | 4U Rack mount |
| Available output range (V) | 0-60 |
EA-BT 20060-1000 4U
| Manufacturer |
|
| Power | 30000.00 W |
| Package | 4U Rack mount |
| Input voltage | 380-480Vac ±10% 3-phase |
| Efficiency | 0.95 |
| Available output range (V) | 0-60 |
| Output current (A) | 0-1000 |
| Max output current | 0.00 |
| Electronic load input rating power | 0.00 |
| Warranty | 2 years |
| Dimensions | 19“ x 4U x 668 mm |
| Weight | 50 kg (56 kg with water cooling) |
| Water-cooled option | Yes |
| Interface options | USB, Ethernet, 1Gbit/s, EtherCAT, CAN FD, USB host |
Features:
|
|
| Description: The battery tester with regenerative energy recovery in the BT 20000 series from EA Elektro-Automatik are two quadrant devices which can perform the function of a charger as well as that of an electronic load (discharging). In discharging mode the device is regenerative and feeds the energy back into the local grid with an efficiency of up to over 96%. The BT 20000 series includes three phase units which, together with the wide input range, allows use with practically all global mains voltages. The DC voltages and currents are determined by the application and the spectrum ranges from 0 - 10 V to 0 - 2000 V and from 0 - 40 A up to 0 - 1000 A in a single device. The DC supply operates as a flexible output stage with a constant power characteristic (autoranging) with a wide voltage and current range. To achieve higher power and current all units are equipped with a Master-Slave-Bus. This enables up to 64 parallel connected devices to be combined into one system which can provide up to 1920 kW and 64000 A. Such a system works as a single unit and can use as a battery module tester or as a battery pack tester. In this way as an example a user can construct a 150 kW battery pack tester system from five 30 kW 4U units BT 20000. Furthermore typical battery tester alarm and warning management, various industrial interfaces, software solutions and many more functions are available. |
|
| Download datasheet |
EA-BT 20080-1000 4U
| Manufacturer | EA - Elektro-Automatik |
| Power | 30000.00 W |
| Package | 4U Rack mount |
| Available output range (V) | 0-80 |
EA-BT 20080-1000 4U
| Manufacturer |
|
| Power | 30000.00 W |
| Package | 4U Rack mount |
| Input voltage | 380-480Vac ±10% 3-phase |
| Efficiency | 0.96 |
| Available output range (V) | 0-80 |
| Output current (A) | 0-1000 |
| Max output current | 0.00 |
| Electronic load input rating power | 0.00 |
| Warranty | 2 years |
| Dimensions | 19“ x 4U x 668 mm |
| Weight | 50 kg (56 kg with water cooling) |
| Water-cooled option | Yes |
| Interface options | USB, Ethernet, 1Gbit/s, EtherCAT, CAN FD, USB host |
Features:
|
|
| Description: The battery tester with regenerative energy recovery in the BT 20000 series from EA Elektro-Automatik are two quadrant devices which can perform the function of a charger as well as that of an electronic load (discharging). In discharging mode the device is regenerative and feeds the energy back into the local grid with an efficiency of up to over 96%. The BT 20000 series includes three phase units which, together with the wide input range, allows use with practically all global mains voltages. The DC voltages and currents are determined by the application and the spectrum ranges from 0 - 10 V to 0 - 2000 V and from 0 - 40 A up to 0 - 1000 A in a single device. The DC supply operates as a flexible output stage with a constant power characteristic (autoranging) with a wide voltage and current range. To achieve higher power and current all units are equipped with a Master-Slave-Bus. This enables up to 64 parallel connected devices to be combined into one system which can provide up to 1920 kW and 64000 A. Such a system works as a single unit and can use as a battery module tester or as a battery pack tester. In this way as an example a user can construct a 150 kW battery pack tester system from five 30 kW 4U units BT 20000. Furthermore typical battery tester alarm and warning management, various industrial interfaces, software solutions and many more functions are available. |
|
| Download datasheet |
EA-BT 20200-420 4U
| Manufacturer | EA - Elektro-Automatik |
| Power | 30000.00 W |
| Package | 4U Rack mount |
| Available output range (V) | 0-200 |
EA-BT 20200-420 4U
| Manufacturer |
|
| Power | 30000.00 W |
| Package | 4U Rack mount |
| Input voltage | 380-480Vac ±10% 3-phase |
| Efficiency | 0.95 |
| Available output range (V) | 0-200 |
| Output current (A) | 0-420 |
| Max output current | 0.00 |
| Electronic load input rating power | 0.00 |
| Warranty | 2 years |
| Dimensions | 19“ x 4U x 668 mm |
| Weight | 50 kg (56 kg with water cooling) |
| Water-cooled option | Yes |
| Interface options | USB, Ethernet, 1Gbit/s, EtherCAT, CAN FD, USB host |
Features:
|
|
| Description: The battery tester with regenerative energy recovery in the BT 20000 series from EA Elektro-Automatik are two quadrant devices which can perform the function of a charger as well as that of an electronic load (discharging). In discharging mode the device is regenerative and feeds the energy back into the local grid with an efficiency of up to over 96%. The BT 20000 series includes three phase units which, together with the wide input range, allows use with practically all global mains voltages. The DC voltages and currents are determined by the application and the spectrum ranges from 0 - 10 V to 0 - 2000 V and from 0 - 40 A up to 0 - 1000 A in a single device. The DC supply operates as a flexible output stage with a constant power characteristic (autoranging) with a wide voltage and current range. To achieve higher power and current all units are equipped with a Master-Slave-Bus. This enables up to 64 parallel connected devices to be combined into one system which can provide up to 1920 kW and 64000 A. Such a system works as a single unit and can use as a battery module tester or as a battery pack tester. In this way as an example a user can construct a 150 kW battery pack tester system from five 30 kW 4U units BT 20000. Furthermore typical battery tester alarm and warning management, various industrial interfaces, software solutions and many more functions are available. |
|
| Download datasheet |
EA-BT 20360-240 4U
| Manufacturer | EA - Elektro-Automatik |
| Power | 30000.00 W |
| Package | 4U Rack mount |
| Available output range (V) | 0-360 |
EA-BT 20360-240 4U
| Manufacturer |
|
| Power | 30000.00 W |
| Package | 4U Rack mount |
| Input voltage | 380-480Vac ±10% 3-phase |
| Efficiency | 0.96 |
| Available output range (V) | 0-360 |
| Output current (A) | 0-240 |
| Max output current | 0.00 |
| Electronic load input rating power | 0.00 |
| Warranty | 2 years |
| Dimensions | 19“ x 4U x 668 mm |
| Weight | 50 kg (56 kg with water cooling) |
| Water-cooled option | Yes |
| Interface options | USB, Ethernet, 1Gbit/s, EtherCAT, CAN FD, USB host |
Features:
|
|
| Description: The battery tester with regenerative energy recovery in the BT 20000 series from EA Elektro-Automatik are two quadrant devices which can perform the function of a charger as well as that of an electronic load (discharging). In discharging mode the device is regenerative and feeds the energy back into the local grid with an efficiency of up to over 96%. The BT 20000 series includes three phase units which, together with the wide input range, allows use with practically all global mains voltages. The DC voltages and currents are determined by the application and the spectrum ranges from 0 - 10 V to 0 - 2000 V and from 0 - 40 A up to 0 - 1000 A in a single device. The DC supply operates as a flexible output stage with a constant power characteristic (autoranging) with a wide voltage and current range. To achieve higher power and current all units are equipped with a Master-Slave-Bus. This enables up to 64 parallel connected devices to be combined into one system which can provide up to 1920 kW and 64000 A. Such a system works as a single unit and can use as a battery module tester or as a battery pack tester. In this way as an example a user can construct a 150 kW battery pack tester system from five 30 kW 4U units BT 20000. Furthermore typical battery tester alarm and warning management, various industrial interfaces, software solutions and many more functions are available. |
|
| Download datasheet |
EA-BT 20500-180 4U
| Manufacturer | EA - Elektro-Automatik |
| Power | 30000.00 W |
| Package | 4U Rack mount |
| Available output range (V) | 0-500 |
EA-BT 20500-180 4U
| Manufacturer |
|
| Power | 30000.00 W |
| Package | 4U Rack mount |
| Input voltage | 380-480Vac ±10% 3-phase |
| Efficiency | 0.97 |
| Available output range (V) | 0-500 |
| Output current (A) | 0-180 |
| Max output current | 0.00 |
| Electronic load input rating power | 0.00 |
| Warranty | 2 years |
| Dimensions | 19“ x 4U x 668 mm |
| Weight | 50 kg (56 kg with water cooling) |
| Water-cooled option | Yes |
| Interface options | USB, Ethernet, 1Gbit/s, EtherCAT, CAN FD, USB host |
Features:
|
|
| Description: The battery tester with regenerative energy recovery in the BT 20000 series from EA Elektro-Automatik are two quadrant devices which can perform the function of a charger as well as that of an electronic load (discharging). The BT 20000 series includes three phase units which, together with the wide input range, allows use with practically all global mains voltages. The DC voltages and currents are determined by the application and the spectrum ranges from 0 - 10 V to 0 - 2000 V and from 0 - 40 A up to 0 - 1000 A in a single device. To achieve higher power and current all units are equipped with a Master-Slave-Bus. This enables up to 64 parallel connected devices to be combined into one system which can provide up to 1920 kW and 64000 A. Furthermore typical battery tester alarm and warning management, various industrial interfaces, software solutions and many more functions are available. |
|
| Download datasheet |
EA-BT 20920-120 4U
| Manufacturer | EA - Elektro-Automatik |
| Power | 30000.00 W |
| Package | 4U Rack mount |
| Available output range (V) | 0-920 |
EA-BT 20920-120 4U
| Manufacturer |
|
| Power | 30000.00 W |
| Package | 4U Rack mount |
| Input voltage | 380-480Vac ±10% 3-phase |
| Efficiency | 0.97 |
| Available output range (V) | 0-920 |
| Output current (A) | 0-120 |
| Max output current | 0.00 |
| Electronic load input rating power | 0.00 |
| Warranty | 2 years |
| Dimensions | 19“ x 4U x 668 mm |
| Weight | 50 kg (56 kg with water cooling) |
| Water-cooled option | Yes |
| Interface options | USB, Ethernet, 1Gbit/s, EtherCAT, CAN FD, USB host |
Features:
|
|
| Description: The battery tester with regenerative energy recovery in the BT 20000 series from EA Elektro-Automatik are two quadrant devices which can perform the function of a charger as well as that of an electronic load (discharging). In discharging mode the device is regenerative and feeds the energy back into the local grid with an efficiency of up to over 96%. The BT 20000 series includes three phase units which, together with the wide input range, allows use with practically all global mains voltages. The DC voltages and currents are determined by the application and the spectrum ranges from 0 - 10 V to 0 - 2000 V and from 0 - 40 A up to 0 - 1000 A in a single device. The DC supply operates as a flexible output stage with a constant power characteristic (autoranging) with a wide voltage and current range. To achieve higher power and current all units are equipped with a Master-Slave-Bus. This enables up to 64 parallel connected devices to be combined into one system which can provide up to 1920 kW and 64000 A. Such a system works as a single unit and can use as a battery module tester or as a battery pack tester. In this way as an example a user can construct a 150 kW battery pack tester system from five 30 kW 4U units BT 20000. Furthermore typical battery tester alarm and warning management, various industrial interfaces, software solutions and many more functions are available. |
|
| Download datasheet |
EA-BT 21000-80 4U
| Manufacturer | EA - Elektro-Automatik |
| Power | 30000.00 W |
| Package | 4U Rack mount |
| Available output range (V) | 0-1000 |
EA-BT 21000-80 4U
| Manufacturer |
|
| Power | 30000.00 W |
| Package | 4U Rack mount |
| Input voltage | 380-480Vac ±10% 3-phase |
| Efficiency | 0.96 |
| Available output range (V) | 0-1000 |
| Output current (A) | 0-80 |
| Max output current | 0.00 |
| Electronic load input rating power | 0.00 |
| Warranty | 2 years |
| Dimensions | 19“ x 4U x 668 mm |
| Weight | 50 kg (56 kg with water cooling) |
| Water-cooled option | Yes |
| Interface options | USB, Ethernet, 1Gbit/s, EtherCAT, CAN FD, USB host |
Features:
|
|
| Description: The battery tester with regenerative energy recovery in the BT 20000 series from EA Elektro-Automatik are two quadrant devices which can perform the function of a charger as well as that of an electronic load (discharging). In discharging mode the device is regenerative and feeds the energy back into the local grid with an efficiency of up to over 96%. The BT 20000 series includes three phase units which, together with the wide input range, allows use with practically all global mains voltages. The DC voltages and currents are determined by the application and the spectrum ranges from 0 - 10 V to 0 - 2000 V and from 0 - 40 A up to 0 - 1000 A in a single device. The DC supply operates as a flexible output stage with a constant power characteristic (autoranging) with a wide voltage and current range. To achieve higher power and current all units are equipped with a Master-Slave-Bus. This enables up to 64 parallel connected devices to be combined into one system which can provide up to 1920 kW and 64000 A. Such a system works as a single unit and can use as a battery module tester or as a battery pack tester. In this way as an example a user can construct a 150 kW battery pack tester system from five 30 kW 4U units BT 20000. Furthermore typical battery tester alarm and warning management, various industrial interfaces, software solutions and many more functions are available. |
|
| Download datasheet |
EA-BT 21500-60 4U
| Manufacturer | EA - Elektro-Automatik |
| Power | 30000.00 W |
| Package | 4U Rack mount |
| Available output range (V) | 0-1500 |
EA-BT 21500-60 4U
| Manufacturer |
|
| Power | 30000.00 W |
| Package | 4U Rack mount |
| Input voltage | 380-480Vac ±10% 3-phase |
| Efficiency | 0.97 |
| Available output range (V) | 0-1500 |
| Output current (A) | 0-60 |
| Max output current | 0.00 |
| Electronic load input rating power | 0.00 |
| Warranty | 2 years |
| Dimensions | 19“ x 4U x 668 mm |
| Weight | 50 kg (56 kg with water cooling) |
| Water-cooled option | Yes |
| Interface options | USB, Ethernet, 1Gbit/s, EtherCAT, CAN FD, USB host |
Features:
|
|
| Description: The battery tester with regenerative energy recovery in the BT 20000 series from EA Elektro-Automatik are two quadrant devices which can perform the function of a charger as well as that of an electronic load (discharging). In discharging mode the device is regenerative and feeds the energy back into the local grid with an efficiency of up to over 96%. The BT 20000 series includes three phase units which, together with the wide input range, allows use with practically all global mains voltages. The DC voltages and currents are determined by the application and the spectrum ranges from 0 - 10 V to 0 - 2000 V and from 0 - 40 A up to 0 - 1000 A in a single device. The DC supply operates as a flexible output stage with a constant power characteristic (autoranging) with a wide voltage and current range. To achieve higher power and current all units are equipped with a Master-Slave-Bus. This enables up to 64 parallel connected devices to be combined into one system which can provide up to 1920 kW and 64000 A. Such a system works as a single unit and can use as a battery module tester or as a battery pack tester. In this way as an example a user can construct a 150 kW battery pack tester system from five 30 kW 4U units BT 20000. Furthermore typical battery tester alarm and warning management, various industrial interfaces, software solutions and many more functions are available. |
|
| Download datasheet |
EA-BT 22000-40 4U
| Manufacturer | EA - Elektro-Automatik |
| Power | 30000.00 W |
| Package | 4U Rack mount |
| Available output range (V) | 0-2000 |
EA-BT 22000-40 4U
| Manufacturer |
|
| Power | 30000.00 W |
| Package | 4U Rack mount |
| Input voltage | 380-480Vac ±10% 3-phase |
| Efficiency | 0.97 |
| Available output range (V) | 0-2000 |
| Output current (A) | 0-40 |
| Max output current | 0.00 |
| Electronic load input rating power | 0.00 |
| Warranty | 2 years |
| Dimensions | 19“ x 4U x 668 mm |
| Weight | 50 kg (56 kg with water cooling) |
| Water-cooled option | Yes |
| Interface options | USB, Ethernet, 1Gbit/s, EtherCAT, CAN FD, USB host |
Features:
|
|
| Description: The battery tester with regenerative energy recovery in the BT 20000 series from EA Elektro-Automatik are two quadrant devices which can perform the function of a charger as well as that of an electronic load (discharging). In discharging mode the device is regenerative and feeds the energy back into the local grid with an efficiency of up to over 96%. The BT 20000 series includes three phase units which, together with the wide input range, allows use with practically all global mains voltages. The DC voltages and currents are determined by the application and the spectrum ranges from 0 - 10 V to 0 - 2000 V and from 0 - 40 A up to 0 - 1000 A in a single device. The DC supply operates as a flexible output stage with a constant power characteristic (autoranging) with a wide voltage and current range. To achieve higher power and current all units are equipped with a Master-Slave-Bus. This enables up to 64 parallel connected devices to be combined into one system which can provide up to 1920 kW and 64000 A. Such a system works as a single unit and can use as a battery module tester or as a battery pack tester. In this way as an example a user can construct a 150 kW battery pack tester system from five 30 kW 4U units BT 20000. Furthermore typical battery tester alarm and warning management, various industrial interfaces, software solutions and many more functions are available. |
|
| Download datasheet |
EA-PUB 10360-480 6U
| Manufacturer | EA - Elektro-Automatik |
| Power | 60000.00 W |
| Package | 6U Rack mount |
| Available output range (V) | 0-360 |
EA-PUB 10360-480 6U
| Manufacturer |
|
| Power | 60000.00 W |
| Package | 6U Rack mount |
| Notes | Water cooling and Integrated function generator options available |
| Input voltage | 380-480Vac ±10% 3-phase |
| Efficiency | 0.96 |
| Available output range (V) | 0-360 |
| Output current (A) | 0-480 |
| Max output current | 0.00 |
| Electronic load input rating power | 0.00 |
| Warranty | 2 years |
| Dimensions | 19" x 6U x 668 mm |
| Weight | 76kg (82kg with water cooling) |
| Water-cooled option | Yes |
| Interface options | CAN, CANopen, RS232, Profibus, EtherCAT, Profinet/Modbus/Ethernet (with 1 or 2 ports) |
Features:
|
|
| Description: The bidirectional DC laboratory power supplies in the PUB 10000 series from EA Elektro-Automatik are two quadrant devices which can perform the function of a power supply (source) as well as that of an electronic load (sink). In sink mode the device is regenerative and feeds the energy back into the local grid with an efficiency up to over 96%. The PUB 10000 series are three phase units, which, together with the wide input range, allows use with practically all global mains voltages. The DC voltage and current are determined by the application and the spectrum ranges from 0 - 60 V to 0 - 2000 V and from 0 - 40 A up to 0 - 1000 A in a single device. The DC supply operates as a flexible output stage with a constant power characteristic (autoranging), and a wide voltage and current range. To achieve higher power and current all units are equipped with a Master-Slave-Bus. This enables up to 64 parallel connected devices to be combined into one system which can provide up to 3840 W and 64000 A. Such a system works as a single unit and can use different power classes start from 5kW, only the voltage class must remain constant. In this way a user can construct a 150 kW system from two 60 kW and one 30 kW devices from the PUB 10000 range. Furthermore, typical laboratory functionality is provided. This includes an extensive function generator, alarm and warning management, various optional interfaces and ports, software solutions and many more functions. Built-in interfaces: USB, Ethernet, Analog, Master-Slave-Bus, Share-Bus, USB Front panel |
|
| Download datasheet |
EA-PUB 10500-360 6U
| Manufacturer | EA - Elektro-Automatik |
| Power | 60000.00 W |
| Package | 6U Rack mount |
| Available output range (V) | 0-500 |
EA-PUB 10500-360 6U
| Manufacturer |
|
| Power | 60000.00 W |
| Package | 6U Rack mount |
| Notes | Water cooling and Integrated function generator options available |
| Input voltage | 380-480Vac ±10% 3-phase |
| Efficiency | 0.97 |
| Available output range (V) | 0-500 |
| Output current (A) | 0-360 |
| Max output current | 0.00 |
| Electronic load input rating power | 0.00 |
| Warranty | 2 years |
| Dimensions | 19" x 6U x 668 mm |
| Weight | 76kg (82kg with water cooling) |
| Water-cooled option | Yes |
| Interface options | CAN, CANopen, RS232, Profibus, EtherCAT, Profinet/Modbus/Ethernet (with 1 or 2 ports) |
Features:
|
|
| Description: The bidirectional DC laboratory power supplies in the PUB 10000 series from EA Elektro-Automatik are two quadrant devices which can perform the function of a power supply (source) as well as that of an electronic load (sink). In sink mode the device is regenerative and feeds the energy back into the local grid with an efficiency up to over 96%. The PUB 10000 series are three phase units, which, together with the wide input range, allows use with practically all global mains voltages. The DC voltage and current are determined by the application and the spectrum ranges from 0 - 60 V to 0 - 2000 V and from 0 - 40 A up to 0 - 1000 A in a single device. The DC supply operates as a flexible output stage with a constant power characteristic (autoranging), and a wide voltage and current range. To achieve higher power and current all units are equipped with a Master-Slave-Bus. This enables up to 64 parallel connected devices to be combined into one system which can provide up to 3840 W and 64000 A. Such a system works as a single unit and can use different power classes start from 5kW, only the voltage class must remain constant. In this way a user can construct a 150 kW system from two 60 kW and one 30 kW devices from the PUB 10000 range. Furthermore, typical laboratory functionality is provided. This includes an extensive function generator, alarm and warning management, various optional interfaces and ports, software solutions and many more functions. Built-in interfaces: USB, Ethernet, Analog, Master-Slave-Bus, Share-Bus, USB Front panel |
|
| Download datasheet |
EA-PUB 10750-240 6U
| Manufacturer | EA - Elektro-Automatik |
| Power | 60000.00 W |
| Package | 6U Rack mount |
| Available output range (V) | 0-750 |
EA-PUB 10750-240 6U
| Manufacturer |
|
| Power | 60000.00 W |
| Package | 6U Rack mount |
| Notes | Water cooling and Integrated function generator options available |
| Input voltage | 380-480Vac ±10% 3-phase |
| Efficiency | 0.97 |
| Available output range (V) | 0-750 |
| Output current (A) | 0-240 |
| Max output current | 0.00 |
| Electronic load input rating power | 0.00 |
| Warranty | 2 years |
| Dimensions | 19" x 6U x 668 mm |
| Weight | 76kg (82kg with water cooling) |
| Water-cooled option | Yes |
| Interface options | CAN, CANopen, RS232, Profibus, EtherCAT, Profinet/Modbus/Ethernet (with 1 or 2 ports) |
Features:
|
|
| Description: The bidirectional DC laboratory power supplies in the PUB 10000 series from EA Elektro-Automatik are two quadrant devices which can perform the function of a power supply (source) as well as that of an electronic load (sink). In sink mode the device is regenerative and feeds the energy back into the local grid with an efficiency up to over 96%. The PUB 10000 series are three phase units, which, together with the wide input range, allows use with practically all global mains voltages. The DC voltage and current are determined by the application and the spectrum ranges from 0 - 60 V to 0 - 2000 V and from 0 - 40 A up to 0 - 1000 A in a single device. The DC supply operates as a flexible output stage with a constant power characteristic (autoranging), and a wide voltage and current range. To achieve higher power and current all units are equipped with a Master-Slave-Bus. This enables up to 64 parallel connected devices to be combined into one system which can provide up to 3840 W and 64000 A. Such a system works as a single unit and can use different power classes start from 5kW, only the voltage class must remain constant. In this way a user can construct a 150 kW system from two 60 kW and one 30 kW devices from the PUB 10000 range. Furthermore, typical laboratory functionality is provided. This includes an extensive function generator, alarm and warning management, various optional interfaces and ports, software solutions and many more functions. Built-in interfaces: USB, Ethernet, Analog, Master-Slave-Bus, Share-Bus, USB Front panel |
|
| Download datasheet |
EA-PUB 10920-250 6U
| Manufacturer | EA - Elektro-Automatik |
| Power | 60000.00 W |
| Package | 6U Rack mount |
| Available output range (V) | 0-920 |
EA-PUB 10920-250 6U
| Manufacturer |
|
| Power | 60000.00 W |
| Package | 6U Rack mount |
| Notes | Water cooling and Integrated function generator options available |
| Input voltage | 380-480Vac ±10% 3-phase |
| Efficiency | 0.97 |
| Available output range (V) | 0-920 |
| Output current (A) | 0-250 |
| Max output current | 0.00 |
| Electronic load input rating power | 0.00 |
| Warranty | 2 years |
| Dimensions | 19" x 6U x 668 mm |
| Weight | 76kg (82kg with water cooling) |
| Water-cooled option | Yes |
| Interface options | CAN, CANopen, RS232, Profibus, EtherCAT, Profinet/Modbus/Ethernet (with 1 or 2 ports) |
Features:
|
|
| Description: The bidirectional DC laboratory power supplies in the PUB 10000 series from EA Elektro-Automatik are two quadrant devices which can perform the function of a power supply (source) as well as that of an electronic load (sink). In sink mode the device is regenerative and feeds the energy back into the local grid with an efficiency up to over 96%. The PUB 10000 series are three phase units, which, together with the wide input range, allows use with practically all global mains voltages. The DC voltage and current are determined by the application and the spectrum ranges from 0 - 60 V to 0 - 2000 V and from 0 - 40 A up to 0 - 1000 A in a single device. The DC supply operates as a flexible output stage with a constant power characteristic (autoranging), and a wide voltage and current range. To achieve higher power and current all units are equipped with a Master-Slave-Bus. This enables up to 64 parallel connected devices to be combined into one system which can provide up to 3840 W and 64000 A. Such a system works as a single unit and can use different power classes start from 5kW, only the voltage class must remain constant. In this way a user can construct a 150 kW system from two 60 kW and one 30 kW devices from the PUB 10000 range. Furthermore, typical laboratory functionality is provided. This includes an extensive function generator, alarm and warning management, various optional interfaces and ports, software solutions and many more functions. Built-in interfaces: USB, Ethernet, Analog, Master-Slave-Bus, Share-Bus, USB Front panel |
|
| Download datasheet |
EA-PUB 11000-160 6U
| Manufacturer | EA - Elektro-Automatik |
| Power | 60000.00 W |
| Package | 6U Rack mount |
| Available output range (V) | 0-1000 |
EA-PUB 11000-160 6U
| Manufacturer |
|
| Power | 60000.00 W |
| Package | 6U Rack mount |
| Notes | Water cooling and Integrated function generator options available |
| Input voltage | 380-480Vac ±10% 3-phase |
| Efficiency | 0.96 |
| Available output range (V) | 0-1000 |
| Output current (A) | 0-160 |
| Max output current | 0.00 |
| Electronic load input rating power | 0.00 |
| Warranty | 2 years |
| Dimensions | 19" x 6U x 668 mm |
| Weight | 76kg (82kg with water cooling) |
| Water-cooled option | Yes |
| Interface options | CAN, CANopen, RS232, Profibus, EtherCAT, Profinet/Modbus/Ethernet (with 1 or 2 ports) |
Features:
|
|
| Description: The bidirectional DC laboratory power supplies in the PUB 10000 series from EA Elektro-Automatik are two quadrant devices which can perform the function of a power supply (source) as well as that of an electronic load (sink). In sink mode the device is regenerative and feeds the energy back into the local grid with an efficiency up to over 96%. The PUB 10000 series are three phase units, which, together with the wide input range, allows use with practically all global mains voltages. The DC voltage and current are determined by the application and the spectrum ranges from 0 - 60 V to 0 - 2000 V and from 0 - 40 A up to 0 - 1000 A in a single device. The DC supply operates as a flexible output stage with a constant power characteristic (autoranging), and a wide voltage and current range. To achieve higher power and current all units are equipped with a Master-Slave-Bus. This enables up to 64 parallel connected devices to be combined into one system which can provide up to 3840 W and 64000 A. Such a system works as a single unit and can use different power classes start from 5kW, only the voltage class must remain constant. In this way a user can construct a 150 kW system from two 60 kW and one 30 kW devices from the PUB 10000 range. Furthermore, typical laboratory functionality is provided. This includes an extensive function generator, alarm and warning management, various optional interfaces and ports, software solutions and many more functions. Built-in interfaces: USB, Ethernet, Analog, Master-Slave-Bus, Share-Bus, USB Front panel |
|
| Download datasheet |
EA-PUB 11500-120 6U
| Manufacturer | EA - Elektro-Automatik |
| Power | 60000.00 W |
| Package | 6U Rack mount |
| Available output range (V) | 0-1500 |
EA-PUB 11500-120 6U
| Manufacturer |
|
| Power | 60000.00 W |
| Package | 6U Rack mount |
| Notes | Water cooling and Integrated function generator options available |
| Input voltage | 380-480Vac ±10% 3-phase |
| Efficiency | 0.97 |
| Available output range (V) | 0-1500 |
| Output current (A) | 0-120 |
| Max output current | 0.00 |
| Electronic load input rating power | 0.00 |
| Warranty | 2 years |
| Dimensions | 19" x 6U x 668 mm |
| Weight | 76kg (82kg with water cooling) |
| Water-cooled option | Yes |
| Interface options | CAN, CANopen, RS232, Profibus, EtherCAT, Profinet/Modbus/Ethernet (with 1 or 2 ports) |
Features:
|
|
| Description: The bidirectional DC laboratory power supplies in the PUB 10000 series from EA Elektro-Automatik are two quadrant devices which can perform the function of a power supply (source) as well as that of an electronic load (sink). In sink mode the device is regenerative and feeds the energy back into the local grid with an efficiency up to over 96%. The PUB 10000 series are three phase units, which, together with the wide input range, allows use with practically all global mains voltages. The DC voltage and current are determined by the application and the spectrum ranges from 0 - 60 V to 0 - 2000 V and from 0 - 40 A up to 0 - 1000 A in a single device. The DC supply operates as a flexible output stage with a constant power characteristic (autoranging), and a wide voltage and current range. To achieve higher power and current all units are equipped with a Master-Slave-Bus. This enables up to 64 parallel connected devices to be combined into one system which can provide up to 3840 W and 64000 A. Such a system works as a single unit and can use different power classes start from 5kW, only the voltage class must remain constant. In this way a user can construct a 150 kW system from two 60 kW and one 30 kW devices from the PUB 10000 range. Furthermore, typical laboratory functionality is provided. This includes an extensive function generator, alarm and warning management, various optional interfaces and ports, software solutions and many more functions. Built-in interfaces: USB, Ethernet, Analog, Master-Slave-Bus, Share-Bus, USB Front panel |
|
| Download datasheet |
EA-PUB 12000-80 6U
| Manufacturer | EA - Elektro-Automatik |
| Power | 60000.00 W |
| Package | 6U Rack mount |
| Available output range (V) | 0-2000 |
EA-PUB 12000-80 6U
| Manufacturer |
|
| Power | 60000.00 W |
| Package | 6U Rack mount |
| Notes | Water cooling and Integrated function generator options available |
| Input voltage | 380-480Vac ±10% 3-phase |
| Efficiency | 0.97 |
| Available output range (V) | 0-2000 |
| Output current (A) | 0-80 |
| Max output current | 0.00 |
| Electronic load input rating power | 0.00 |
| Warranty | 2 years |
| Dimensions | 19" x 6U x 668 mm |
| Weight | 76kg (82kg with water cooling) |
| Water-cooled option | Yes |
| Interface options | CAN, CANopen, RS232, Profibus, EtherCAT, Profinet/Modbus/Ethernet (with 1 or 2 ports) |
Features:
|
|
| Description: The bidirectional DC laboratory power supplies in the PUB 10000 series from EA Elektro-Automatik are two quadrant devices which can perform the function of a power supply (source) as well as that of an electronic load (sink). In sink mode the device is regenerative and feeds the energy back into the local grid with an efficiency up to over 96%. The PUB 10000 series are three phase units, which, together with the wide input range, allows use with practically all global mains voltages. The DC voltage and current are determined by the application and the spectrum ranges from 0 - 60 V to 0 - 2000 V and from 0 - 40 A up to 0 - 1000 A in a single device. The DC supply operates as a flexible output stage with a constant power characteristic (autoranging), and a wide voltage and current range. To achieve higher power and current all units are equipped with a Master-Slave-Bus. This enables up to 64 parallel connected devices to be combined into one system which can provide up to 3840 W and 64000 A. Such a system works as a single unit and can use different power classes start from 5kW, only the voltage class must remain constant. In this way a user can construct a 150 kW system from two 60 kW and one 30 kW devices from the PUB 10000 range. Furthermore, typical laboratory functionality is provided. This includes an extensive function generator, alarm and warning management, various optional interfaces and ports, software solutions and many more functions. Built-in interfaces: USB, Ethernet, Analog, Master-Slave-Bus, Share-Bus, USB Front panel |
|
| Download datasheet |
